Description

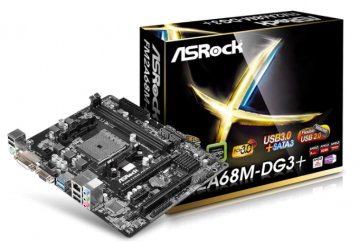

ASRock FM2A68M-DG3+ Motherboard

Description:

ASRock FM2A68M-DG3+ has a High-Density Glass Fabric PCB design to reduce the gaps between the PCB layers to protect the motherboard against electrical shorts. FM2A68M-DG3+ Motherboard comes with PCIe Gen3 x4 Ultra M.2 interface to push your data transfer speeds up to 32Gb/s. ASRock has applied ELNA audio capacitors on mainstream and entry-level motherboards to reduce noise levels significantly and satisfy even the pickiest audiophiles.

FM2A68M-DG3+ Motherboard also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit so that you can install some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. The new Sapphire Black PCB design shows the rock-solid quality and gives the motherboard a more cool touch. ASRock applied solid capacitors on this motherboard to perform more stably and ensure a longer lifetime.


Features:

  • Support for Socket FM2+ 95W / FM2 100W processors
  • All Solid Capacitor Design
  • Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
  • 4 SATA3, 2 USB 3.1 Gen1, 10 USB 2.0 (6 Front, 4 Rear)
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • Supports Dual Channel DDR3 2400+(OC)
  • Graphics Output Options : D-Sub, DVI-D



Specification:

Brand : ASrock
Model : FM2A68M-DG3+
Chipset : AMD A68H (Bolton-D2H)
Memory : 2 x DDR3 DIMM Slots
RAM Memory Technology : DDR3
Form Factor : Micro ATX Form Factor
OS : Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Support CD : Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
CPU : Supports Socket FM2+ 95W / FM2 100W processors
BIOS : 64Mb AMI UEFI Legal BIOS with GUI support
           ACPI 1.1 Compliant wake up events
Graphics : Integrated AMD Radeon™ R7/R5 Series Graphics in A-Series APU
                DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11
Audio : 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Storage : 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 10), NCQ, AHCI, and Hot Plug
