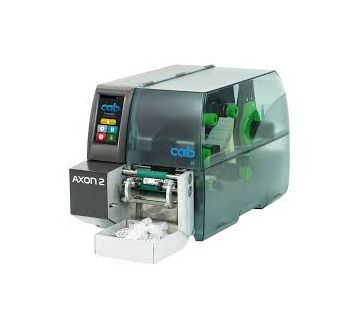

CAB AXON 2 Tube & Vial Labeling System | 300/600 dpi | Direct Thermal / Thermal Transfer | RS232 | USB | Ethernet | WLAN | LIMS Compatible

The CAB AXON 2 is a high-precision tube and vial labeling system designed for laboratory, medical, pharmaceutical, and research environments requiring reliable and real-time sample identification. Engineered in Germany, AXON 2 combines the proven SQUIX 4MP label printer with a specialized tube applicator in a single solid cast aluminum chassis for robust and long-term industrial performance. Supporting both direct thermal and thermal transfer printing, the AXON 2 delivers ultra-sharp print quality at 300 dpi or 600 dpi resolution, ensuring reliable printing of even the smallest 1D and 2D codes. With a fast labeling cycle of less than two seconds, it enables efficient sample processing in high-throughput laboratory workflows. The system supports tube and vial diameters ranging from 10 mm to 22 mm (with optional configurations for other sizes) and applies labels accurately using a TRV 14 transport roller and precision pinch roller mechanism. Integrated connectivity options including RS232, USB, Ethernet, and WLAN allow seamless integration with Laboratory Information Management Systems (LIMS). Designed for flexibility and automation, CAB AXON 2 allows manual insertion or automated handling integration, with automatic ejection into a tray after labeling. Its intuitive control panel and easy-access material replacement design ensure smooth day-to-day operation in demanding environments.

Product Features

• High-speed labeling cycle under 2 seconds

• 300 dpi or 600 dpi print resolution for sharp-edge codes

• Supports direct thermal and thermal transfer printing

• Integrated SQUIX 4MP printer module

• TRV 14 transport roller (Ø14 mm) for precise tube labeling

• Suitable for tubes/vials with or without closure caps

• Tube diameter support: 10 mm to 22 mm (expandable with options)

• Label width support up to 56 mm

• Horizontal tube orientation during application

• RS232, USB, Ethernet, and WLAN connectivity

• LIMS integration capability

• Automatic tube ejection to collection tray

• Solid cast aluminum chassis for durability

• Intuitive control panel with 90° rotation (software controlled)

• Optional code verification (camera-based 1D verification)

• Optional 36–60 VDC power module

• Easy ribbon and label replacement with pivoting applicator design
