Description

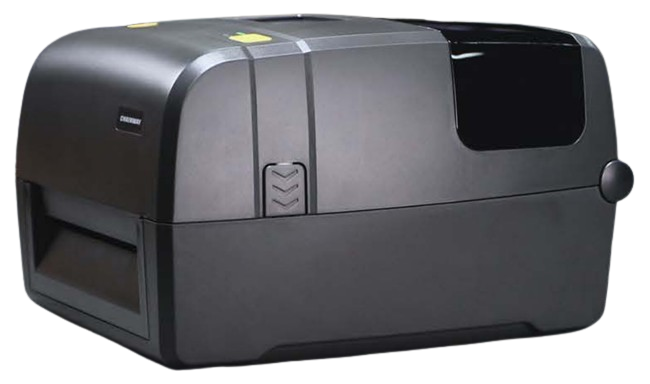

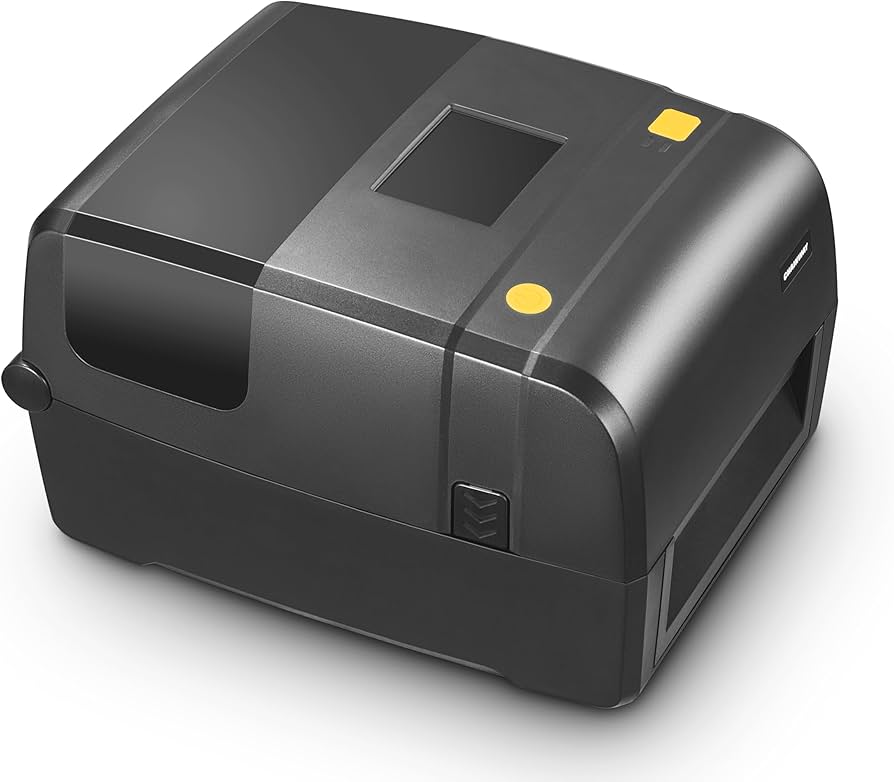

The Chainway CP30 RFID Printer is an advanced industrial RFID label printer designed for RFID tag encoding, label printing, inventory management, logistics, retail, manufacturing, warehouse automation, and asset tracking applications. Combining RFID encoding and high-quality barcode label printing into a single device, the CP30 enables businesses to streamline RFID deployment and labeling operations. The printer supports both Thermal Transfer and Direct Thermal printing methods and is available in 203 DPI and 300 DPI resolutions. With print speeds of up to 8 inches per second (203 DPI) and 6 inches per second (300 DPI), the CP30 delivers efficient performance for high-volume printing environments. Integrated UHF RFID encoding supports EPC C1G2 (ISO18000-6C) protocol and operates across global RFID frequency bands including 920-925 MHz, 902-928 MHz, and 865-868 MHz. This makes the CP30 suitable for worldwide RFID applications. The printer features a 3.5-inch TFT Color Touch Panel LCD, providing intuitive operation and configuration. Standard connectivity includes USB, USB Host, and Ethernet, while optional connectivity options include Wi-Fi, Bluetooth, and a Wireless Adapter. Optional accessories such as a Peeler Module, Cutter Module, and External Label Roll Holder enhance operational flexibility.
Product Features
• RFID label printing and encoding solution
• Thermal Transfer and Direct Thermal printing
• Available in 203 DPI and 300 DPI models
• Print speed up to 8 ips (203 DPI)
• Print speed up to 6 ips (300 DPI)
• Supports EPC C1G2 (ISO18000-6C) RFID protocol
• Global RFID frequency compatibility
• 3.5-inch TFT Color Touch Panel LCD
• USB connectivity
• USB Host support
• Ethernet network connectivity
• Optional Wi-Fi connectivity
• Optional Bluetooth connectivity
• Optional wireless adapter support
• Optional peeler module
• Optional cutter module
• Optional external label roll holder
Product Specifications
| Brand | Chainway |
| Model | CP30 |
| Device Type | RFID Label Printer |
| Printing Method | 203 DPI / 300 DPI |
| Print Speed | 8 ips (203 DPI), 6 ips (300 DPI) |
| RFID Protocol | EPC C1G2 (ISO18000-6C) |
| RFID Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Display | 3.5" TFT Color Touch Panel LCD |
| Standard Interfaces | USB, USB Host, Ethernet |
| Optional Interfaces | Wi-Fi, Bluetooth, Wireless Adapter |
| Optional Accessories | Peeler, Cutter, External Roll Holder |
| Application | RFID Label Printing, Asset Tracking, Logistics |
Features
Connectivity:
- Ethernet
- USB
Display Type:
- LCD
Print Method :
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
300
Print Type:
- Monochome
Warranty :
1Year
