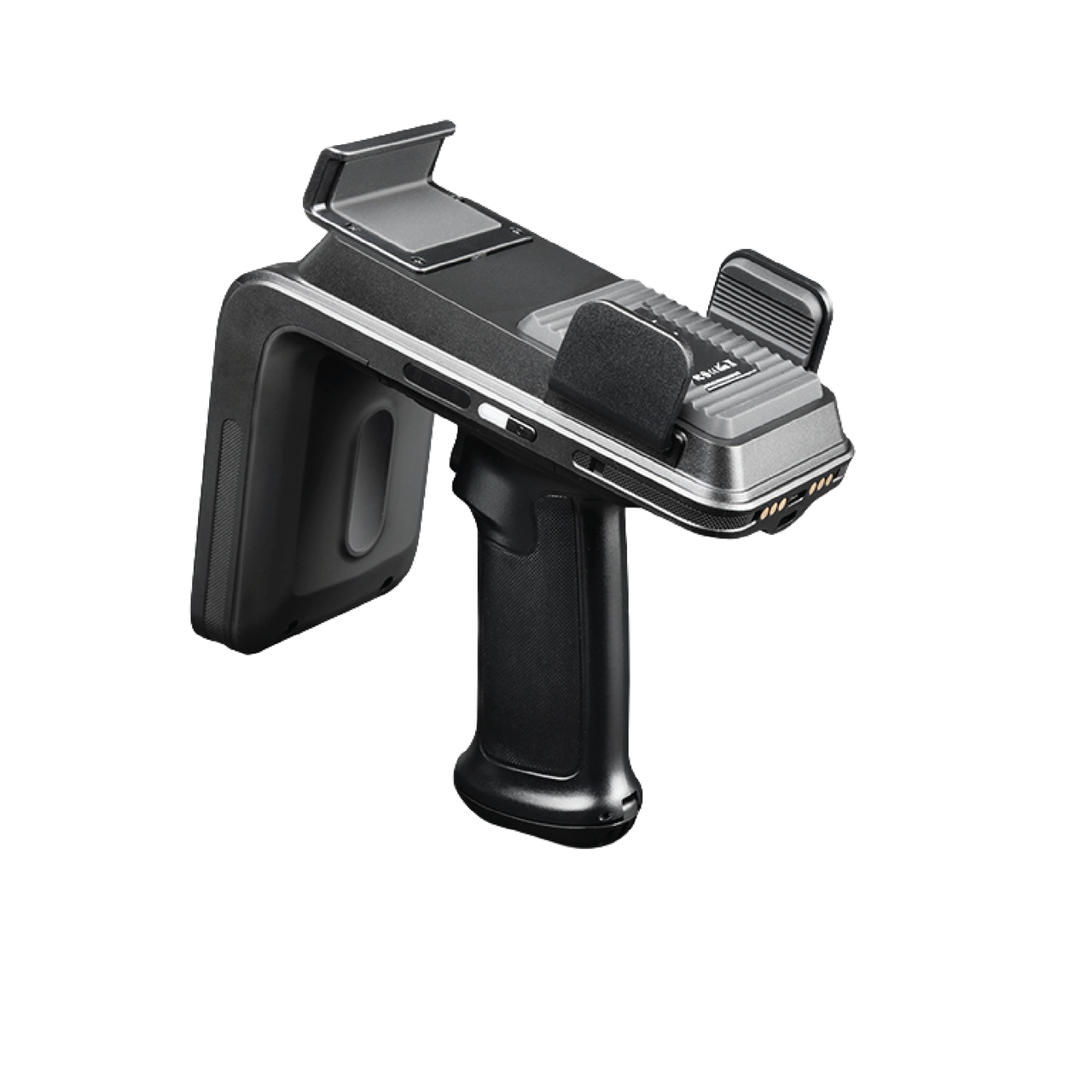

Chainway R7 UHF RFID Sled Reader | Android, iOS & Windows Compatible | Bluetooth 5.0 BLE + USB Type-C + Optional WiFi 6 | NFC Pairing

The Chainway R7 is a high-performance enterprise-grade UHF RFID sled reader designed to transform smartphones, tablets, and Windows devices into powerful RFID data collection terminals. Built for retail, logistics, warehousing, manufacturing, asset management, and inventory control applications, the R7 delivers exceptional RFID performance with flexible connectivity options. Compatible with Android, iOS, and Windows platforms, the R7 offers both magnetic and clip-on attachment options, ensuring seamless integration with various mobile devices. Communication is supported through Bluetooth Low Energy (BLE) 5.0 and USB Type-C, while optional WiFi 6 connectivity provides enhanced wireless performance. NFC pairing enables fast and convenient device connection. The integrated UHF RFID engine supports global RFID frequency bands including 920–925 MHz, 902–928 MHz, and 865–868 MHz. With a maximum reading range of up to 30 meters and a reading speed exceeding 1300 tags per second, the R7 is ideal for high-volume inventory and asset tracking operations. Support for Impinj Gen2X technology ensures superior RFID reading accuracy and performance. Designed for demanding enterprise environments, the R7 features IP54-rated protection, survives drops from 1.5 meters, and includes a powerful 6700mAh removable battery equipped with a battery meter and NTC temperature sensor for safe and reliable operation. Optional barcode scanning further expands data capture capabilities.

Product Features

• Compatible with Android, iOS, and Windows devices
• SDK support for application development
• Magnetic and clip attachment options
• Bluetooth Low Energy (BLE) 5.0 connectivity
• USB Type-C interface
• Optional WiFi 6 support
• NFC pairing functionality
• Integrated long-range UHF RFID reader
• RFID reading range up to 30 meters
• RFID read speed exceeding 1300 tags per second
• Supports Impinj Gen2X technology
• Multi-region RFID frequency support
• 6700mAh removable battery
• Battery meter and NTC temperature sensor
• Optional barcode scanning capability
• IP54-rated rugged construction
• 1.5-meter drop resistance

Product Specifications
