Description

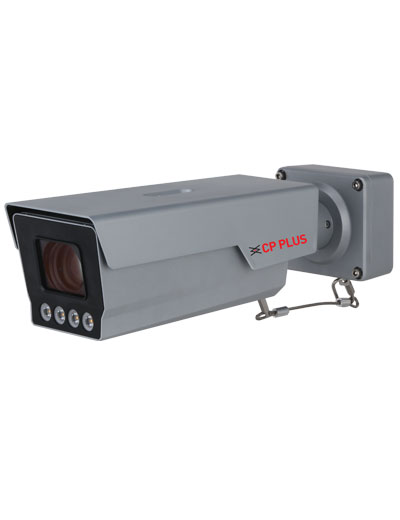

Enhance your traffic surveillance and law enforcement systems with the CP PLUS CP-UNC-TT41L3-VMD-Q 4MP IR AI Enforcement Camera. Equipped with advanced ANPR technology, motorized vari-focal lens (10–50mm), and true WDR (140dB), this smart camera is engineered for high-accuracy vehicle detection, license plate recognition, and real-time monitoring. Built to withstand harsh environments with its IP67 and IK10-rated housing, and backed by CTC (CP PLUS Trusted Core) Technology, it delivers uncompromising security and reliability for intelligent traffic management and enforcement solutions.
Product Features
-
4MP 1/1.8" CMOS Sensor for ultra-clear image quality (2688 × 1520 @ 30fps)
-
Advanced ANPR algorithm for automatic license plate recognition
-
Motorized 10–50mm vari-focal lens with F1.2 aperture for adaptable surveillance
-
IR Range up to 30 Metres with 4 IR LEDs and adjustable brightness
-
Omnidirectional Detection: Captures motorcycles, vehicles, logo, type, color & violations
-
Supports Composite Imaging: Up to 3 source + 1 close-up image for high clarity
-
Cyber Secure Design: AES-256 encryption, HTTPS, IP/MAC filtering & trusted boot
-
Smart Violation Detection: Speeding, wrong-way driving, illegal stopping & more
-
Wide Operating Temp Range: –40 °C to +65 °C; built for Indian weather conditions
-
Multiple Connectivity Options: RS-232, RS-485, PoE, GPS, and Audio In/Out
Product Specifications
| Feature | Specification |
|---|---|
| Model | CP-UNC-TT41L3-VMD-Q |
| Image Sensor | 1/1.8" 4 MP CMOS (1.411 cm) |
| Resolution | Max. 2688 × 1520 @ 30fps |
| Lens | Motorized Vari-Focal 10–50mm, F1.2 |
| IR Range | 30 Metres with 4 IR LEDs |
| Day/Night Mode | ICR Auto Switch (IR Cut Filter) |
| Video Compression | H.265, H.264 (M/H/B), MJPEG |
| WDR | 140 dB |
| S/N Ratio | >56 dB |
| Video Format | PAL/NTSC |
| Detection | Vehicle Type, Logo, Color, Helmet Detection, Motion, Traffic Flow |
| OSD Overlay | Plate No., Speed, Vehicle Info, Lane No., Event Type, etc. |
| Smart Events | Speeding, Slow Driving, Wrong-Way, Lane Change, Illegal Parking, etc. |
| Interfaces | RS-232, RS-485, Audio In/Out, 3 Alarms In, 2 Alarms Out |
| Connectivity | RJ45 Ethernet, GPS, PoE, SFTP, NAS, Micro SD (Up to 512GB) |
| Operating Temp | –40 °C to +65 °C |
| Weatherproof Rating | IP67, IK10 |
| Dimensions | 466.4 mm × 135.8 mm × 134.1 mm |
| Weight | 3.9 kg |
| Certifications | ISO9001, CE, FCC, BIS |
| Power Supply | 12–36V DC, ≤13W |
