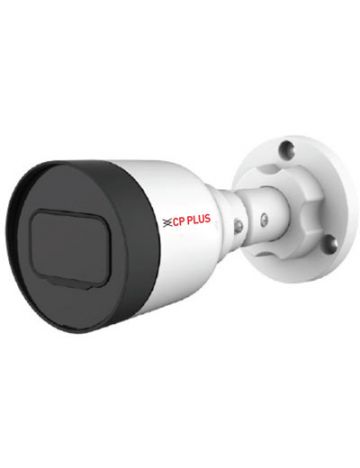

CP Plus CP-UNC-TA21PL3 2MP Full HD IR Network Bullet Camera

2,599.00 (Inc GST)
For Special & Volume Pricing – Call +91 92050 81551
In stock

Need Help

Choosing a Product
+91 92050 81551 Live Chat Contact Us
Talk to our technical Expert
price match


The CP Plus CP-UNC-TA21PL3 is a high-definition IR network bullet camera designed for small and medium-sized scenes, offering easy installation, simple operation, and excellent performance. It is ideal for use in homes, small retail stores, and small to medium-sized enterprises.

Product Features:
  • High-resolution 2MP imaging for clear and detailed footage.
  • Supports Power over Ethernet (PoE) technology for convenient installation and operation.
  • IP67 weatherproof rating ensures reliable outdoor performance.
  • True Day/Night (ICR) functionality for clear imaging even in low-light conditions.
  • Compatible with gCMOB and iCMOB mobile applications for remote monitoring and control.
  • Comes with KVMS Pro software for comprehensive surveillance management.
  • Utilizes H.265 video compression technology for efficient storage and transmission.
  • Supports various advanced features like ROI, DWDR, and 3D-DNR for enhanced image quality.

Product Specification:

Image Sensor 1/2.8” 2MP Progressive scan CMOS
Minimum Illumination 0.01 Lux @F2.0
Effective Pixels 1920(H) x 1080(V)
Shutter Speed Auto/Manual, 1/3~1/100000s
Lens 3.6mm (2.8mm Optional)
Lens Type Fixed
Mount Type M12
Max. Aperture F2.0
Iris Type Fixed aperture
Close Focus Distance 2.8mm- 0.5m ; 3.6mm- 0.8m
DORI Distance 3.6mm– 49.7m (Detect) 19.9m (Observe) 9.9m (Recognize) 5m (Identify) 2.8mm– 38.6m (Detect) 15.4m (Observe) 7.7m (Recognize) 3.9m (Identify)
Gain Control (AGC) Auto/Manual
Video Compression Instastream/H.265/Smart H.264+/H.264/ H.264B/ MJPEG
Angle of View 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°
Back Light Compensation BLC / HLC / DWDR
S/N Ratio >56dB
Video Streaming Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Resolution 1080P (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Mirror Yes
Motion detection Off / On (4 area, Rectangle)
Privacy Mask 4 Area
ICR Auto (ICR)/Color/B/W
ROI Yes (4 areas)
Noise Reduction 3D-DNR
Video Bit Rate H.265: 12 Kbps–6400 Kbps H.264: 32 Kbps–6144 Kbps
Bit Rate CBR/VBR
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; ONVIF (Profile S/Profile T); CGI; InstaOn; Genetec
Ethernet RJ-45 (10/100Base-T)
Event Trigger Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
User/ Host 6 Users (Total bandwidth: 36 M)
Smart Phone iPhone, iPad, Android Phone
IR IR Range of 30 Mtr., Smart IR
No of IR LEDs 1 (IR LEDs)
Browser IE, Chrome, Firefox
Edge Storage FTP
Operating Temperature -40°C~+60°C , Less than 95%RH
Power Source DC12V,PoE (802.3af)
Power Consumption 1.4W (12V DC); 2.2W (PoE)
Weatherproof Standard IP67
Casing Metal + Plastic
Dimension 162.6 mm × Φ70 mm (6.4" × Φ2.8")
Weight 0.22kg


Brochure (CP-UNC-TA21PL3.pdf, 624 Kb) [Download]
