Description
The Epson TM-L100 is a smart liner-free label printer designed to enhance productivity and convenience in retail and hospitality businesses. Ideal for click-and-collect takeaways, deliveries, and more, the TM-L100 can print a wide range of permanent and semi-permanent labels with high adhesive strength. This versatile printer supports USB, Ethernet, and Serial connectivity, and features a long auto-cutter and superior printhead life to minimize downtime. Seamlessly sync with tablets, PCs, and other devices to streamline your operations and improve efficiency.
Product Features
- Liner-free Media Support: Epson-tested media supports high adhesive strength for various applications.
- Flexible Connectivity: Built-in USB, Ethernet, and optional Serial Port for versatile connection options.
- Designed for Online Orders: Server Direct Print feature retrieves orders from a web server and prints labels without POS software.
- Durable and Reliable: Long auto-cutter and superior printhead life ensure minimal downtime.
- User-Friendly: Drop-in paper loading and easy integration with tablets, PCs, and more.
Product Specifications
| Product Name | TM-L100 |
| Printing Method | Direct Thermal Line Printing |
| Max. Printing Speed | 170 mm/sec |
| Print Resolution | 203 x 203 dpi |
| Paper Width | 80 mm / 58 mm / 40 mm |
| Print Width | 80 mm Setting: 72 mm, 58 mm Setting: 52.5 mm |
| Print Font | Font-A (48 characters/line), Font-B (64 characters/line) |
| Character Set | 95 alphanumeric, 18 international sets, 128 x 43 pages extended graphics |
| Barcode Fonts | Supports 1D and 2D Barcode symbols |
| UTF-8 Fonts Support | Yes |
| Character Structure | Special Font A: 12 x 24 dots, Special Font B: 9 x 24 dots |
| Paper Guide Spacer | Yes, for 58 mm Paper roll (Auto Sensing) and 40 mm roll (Manual Setting) |
| Sensors | Roll Paper End Sensor, Black Mark Position Sensor |
| Paper Load | Drop-in Paper Loading |
| Roll Specifications | Diameter: 108mm, Thickness: Max 0.103 mm |
| Auto-cutter Type | V Cutter type (Partial Cut) - One uncut point in Center |
| Auto-cutter Life | 2 Million Cuts |
| Printhead Life | 150 Km |
| MTBF | 360,000 Hours |
| MCBF | 70 Million Lines |
| Colour | Epson Black (EBCK) |
| Options | Wall Mount Kit, External Buzzer |

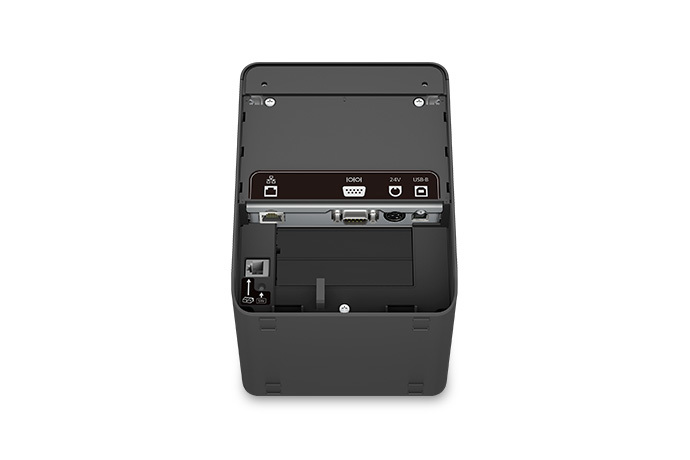

| Standard Accessories | USB, Ethernet (10/100 Base TX), RS-232C Serial; Connectivity for Cash Drawer / Optional External Buzzer |
| Power Supply | +24 V DC, External Power Supply (PS-190) |
| Power Consumption | 52 dBA |
| Operating Temperature | 5 - 45 °C (41 - 113 °F) |
| Humidity | 10 - 90 % RH |
| Acoustic Noise | 52 dBA |
| Printer Driver | Epson Advanced Printer Driver 6 for TM-L100 (APD), TM Virtual Port Driver |
| NV Area | Graphics Area 384 KB, Bit Image Memory 1 KB |
| Audible Alert | Built-in buzzer, optional external buzzer |
| LED Indicators | Taken, Neat-end |
| Software | TM Utility (iOS, Android & Windows), TM Deployment Tool, Monitoring Tool |
| Overall Dimensions (W x D x H) | 140 x 148.5 x 207 mm |
| Weight | 1.9 kg |
| Warranty | 1 year |
