Description

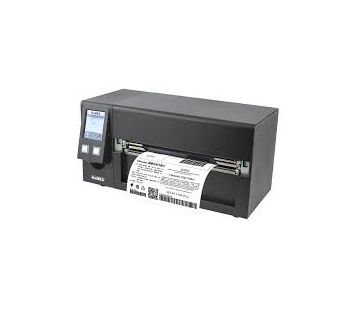

The GoDEX HD830i+ is an advanced 8-inch industrial barcode printer engineered for wide-format, high-precision, and heavy-duty labelling applications across warehouses, logistics hubs, manufacturing plants, and large-scale industrial operations in India. With its metallic die-cast mechanism, the HD830i+ is built for durability, reliability, and uninterrupted industrial performance.Designed to save space without sacrificing printing capability, this printer features a compact footprint while supporting extra-wide labels up to 219.5 mm (8.64"). The patented adjustable damper mechanism (Patent M551599) and dancer-arm system deliver exceptional stability and smooth label feeding—even with specialty media.The HD830i+ offers a modern, user-friendly experience with its adjustable 3.2" colour touchscreen, tool-less maintenance, and a quick auto-calibration button for hassle-free media alignment. High memory capacity (256 MB Flash & 256 MB SDRAM) combined with 5 built-in multilingual TTF fonts ensures excellent compatibility for global operations.With standard USB, Serial, Ethernet, and USB Host ports—plus optional WiFi/Bluetooth—the HD830i+ integrates effortlessly into existing IT systems. It also works seamlessly with GoLabel II, GoAPP, GoUtility and GoTools software for remote management, label design, and mobile operation.
Product Features
- 8-inch wide-format industrial printing for large labels, pallets and outer cartons
- 300 dpi high-resolution printing for sharp graphics, barcodes and text
- Durable die-cast aluminum mechanism designed for continuous industrial operation
- Adjustable 3.2" colour touchscreen with 15° tilt for easy operation
- Tool-less maintenance for printhead, platen roller and media replacement
- Patented adjustable damper & linkage dancer arm for smooth media handling
- Auto-calibration button for fast and accurate label sensing
- Supports wax, wax/resin, resin & near-edge ribbons
- Large memory: 256 MB Flash + 256 MB SDRAM
- USB, Serial, Ethernet + USB Host ports (standard)
Product Specifications
Model | GoDEX HD830i+ |
Print Method | Thermal transfer/Direct Thermal |
Resolution | 300 dpi (12 dots/mm) |
Max Print Speed | Up to 5 ips (127 mm/s) |
Max Print Width | 8.64” (219.5 mm) |
Print Length | Min 1" (25.4 mm); Max 1500 mm |
Processor | 32-bit RISC CPU |
Memory | 256 MB SDRAM / 256 MB Flash |
Media Type | Continuous, gap, black mark, punched hole |
Media Width | 30 mm – 220 mm |
Media Thickness | 0.06 mm – 0.25 mm |
Max Label Roll Diameter | 10" (254 mm) with external stand |
Core Diameter | 1.5" (25.4 mm) – 3" (76.2 mm) |
Ribbon Types | Wax, Wax/Resin, Resin, Near-Edge |
Interfaces | USB 2.0 (Type B), RS232 Serial, Ethernet 10/100, USB Host (Type A) |
Dimensions (W × D × H) | 221 mm × 431 mm × 224 mm |
Weight | 11.7 kg (without consumables) |
Features
Display Type:
- LCD
- Touch
Interface:
- Ethernet
- Serial
- USB
Max Print Width:
219mm
Print Method :
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
300
Print Speed :
- 127mm/sec
Print Type:
- Monochome
