Honeywell Orbit 7190g 2D USB Hybrid Presentation Black Scanner Kit

7190G-2USBX-0
[Contact us for a price] Request a quote
For Special & Volume Pricing – Call 1800 419 5553

Need Help

Choosing a Product
1800 419 5553 Live Chat Email Us
Talk to our technical Expert
price match

Description

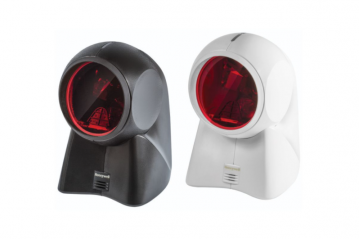

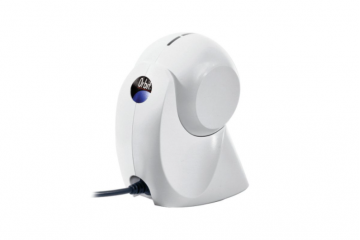

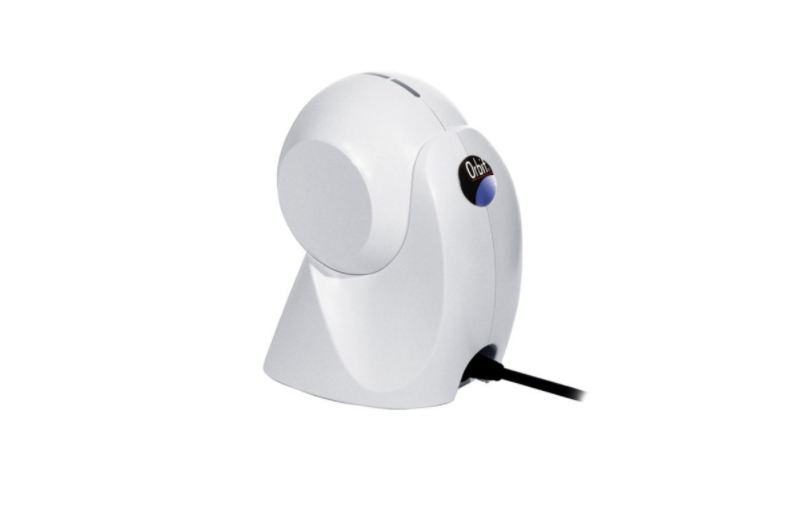

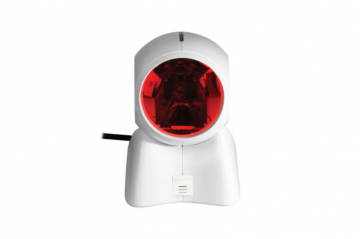

Honeywell Orbit 7190g 2D USB Hybrid Presentation Black Scanner Kit

Honeywell Orbit 7190g 2D USB hybrid presentation barcode scanner is engineered for highly efficient retail checkouts, with a unique dual-modes design that delivers seamless scanning of both merchandise and digital barcodes. Honeywell Orbit 7190g barcode scanner is an innovative, affordable and award-winning design that enables handheld scanning of large and bulky items. It is a plug-and-play scanner with automatic interface detection that automatically configures itself to the appropriate interface. It helps the retailers to address the growing need for digital barcodes reading – without requiring an additional scanner.



Features :

  • It comes with dual-working modes as it scans both digital codes of customer smartphone and merchandise codes by the cashier at the register.
  • It features a 20-line omnidirectional laser pattern.
  • The adjustable scan head of Orbit 7190g enables to tilt the scanner 30° to accommodate larger products.
  • Compatible with most POS systems as it comes with multiple on-board interfaces.
  • It simplifies integration by drawing power directly through USB, eliminating the need for an additional power supply and cabling.



Specifications :

Scan Pattern : Hybrid

Drop : Designed to withstand 1.2 m (4 ft) drops

Input Voltage : 5 VDC ±0.25 V

Operating Power : 472 mA @ 5 V

Standby Power : 255 mA @ 5 V

Host System Interfaces : USB, RS-232, Keyboard Wedge, IBM468xx (RS485)

Symbol Contrast : 35% minimum reflectance difference

Dimensions (L x W x H) : 108 mm x 103 mm x 148 mm  (4.3 in x 4.1 in x 5.8 in)

Weight : 410 g (14.5 oz)

Attachments

Brochure (Honeywell_Orbit-7190g.pdf, 386 Kb) [Download]
