Description

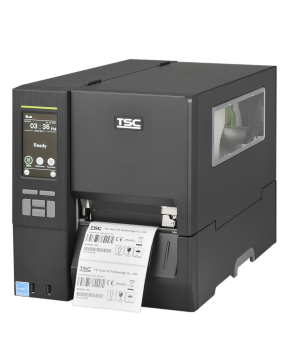

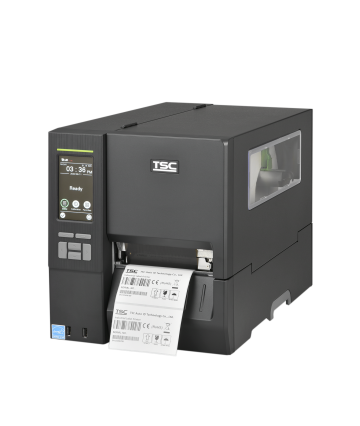

The MH341T Industrial Label Printer delivers outstanding print quality, fast speeds, and long-lasting performance for demanding industrial environments. Designed with a 12 dots/mm (300 DPI) print head, it ensures crisp and precise labels for manufacturing, logistics, healthcare, and retail applications. Featuring a 4.3-inch full-colour touch LCD, the MH341T offers intuitive operation and easy setup.
With Thermal Transfer and Direct Thermal printing, robust die-cast metal construction, and multiple connectivity options including USB, RS-232, Ethernet, and USB Host, this printer provides flexibility and reliability in high-volume workflows. Its advanced memory configuration, wide media compatibility, and fast 12” per second printing speed make it a powerhouse for industrial-grade label production.
Product Features
- High-Resolution Printing: 300 DPI resolution ensures sharp text, barcodes, and graphics.
- Dual Printing Modes: Supports both Direct Thermal and Thermal Transfer printing for maximum versatility.
- Fast Performance: Prints up to 305 mm (12”) per second for high-volume production lines.
- Durable Construction: Die-cast print mechanism and metal housing withstand tough industrial use.
- Smart User Interface: 4.3” full-colour touch LCD for intuitive setup and printer management.
- Comprehensive Connectivity: Equipped with USB, RS-232, Ethernet, and USB Host for flexible integration.
- Expandable Memory: Includes 512MB Flash and 256MB SDRAM with microSD slot supporting up to 32GB.
- Accurate Media Handling: Adjustable gap, black mark, and ribbon sensors ensure precise printing.
- Wide Media Support: Prints labels up to 104mm (4.09”) wide and 450” long.
- Energy Efficient & Certified: ENERGY STAR compliant and conforms to global safety standards.
Product Specifications
Specification | Details |
Printing Method | Thermal Transfer & Direct Thermal |
Resolution | 12 dots/mm (300 DPI) |
Max. Print Speed | 305 mm (12”) per second |
Max. Print Width | 104 mm (4.09”) |
Max. Print Length | 11,430 mm (450”) |
Processor | 32-bit RISC CPU |
Memory | 512MB Flash, 256MB SDRAM, microSD up to 32GB |
Interfaces | RS-232, USB 2.0, Ethernet (10/100 Mbps), Dual USB Host |
Optional Interfaces | GPIO + Centronics, Bluetooth 5.0, Wi-Fi 802.11 a/b/g/n/ac |
Display | 4.3” Colour Touch LCD |
Media Width | 20–114 mm (0.79"–4.5") |
Media Thickness | 0.06–0.28 mm |
Ribbon Length | 600 m, 1” core |
Label Roll Capacity | 203.2 mm (8”) O.D. |
Dimensions (W x H x D) | 276 × 326 × 502 mm |
Weight | 15.6 kg |
Power Supply | AC 100–240V, 50–60Hz |
Environment | Operating: 0–40°C, 25–85% RH non-condensing |
Safety Certifications | BIS, CE, FCC, UL, TÜV, ENERGY STAR®, RoHS |
Warranty | Printer: 2 years; Printhead: 1 year or 25 km |
