Description

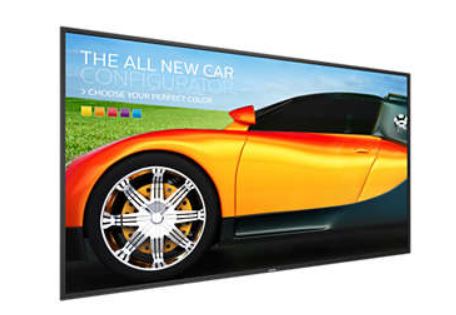

55" / 4K / 350 cd/m2 /Android / Wi-Fi / Miracast / CMND Software
Specifications :
Picture/Display
• Diagonal screen size: 54.6 inch / 138.7 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 350 cd/m²
• Contrast ratio (typical): 1200:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.315 x 0.315 mm
• Display colors: 1.07 Billion
• Operating system: Android 5.1
• Panel technology: ADS
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1920 x 1080 60Hz
1280 x 1024 60Hz
720 x 400 70Hz
1024 x 768 60Hz
1152 x 870 75Hz
1280 x 720 60Hz
1440 x 900 60Hz
1600 x 900 60Hz
1680 x 1050 60Hz
3840 x 2160 30, 60Hz
640 x 480 60,67,75Hz
800 x 600 60Hz
832 x 624 75Hz
• Video formats
Resolution Refresh rate
720p 50, 60Hz
1080i 50, 60Hz
1080p 60Hz
1080p 24,25,30,60Hz
3840 x 2160p 24,25,30,60Hz
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
Connectivity
• Video input: HDMI 2.0 x2, USB 2.0(Type A) x1,USB 3.0(Type A) x1
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• External control: RS232C (in/out) 2.5 mm jack,RJ45
Convenience
• Screen saving functions: Pixel Shift, Low Brightness
• Keyboard control: Lockable
• Network controllable: RJ45, RS232, WiFi
• Energy saving functions: Smart Power
• Placement: Landscape
• Remote control signal: Lockable
• Ease of installation: Remote Control Lock
• Tiled Matrix: Up to 10 x 15
Dimensions
• Bezel width: L/T/R:9.8mm ,B:15.1mm
• Set dimensions (W x H x D):
1231.6 x 707.7 x 62.5 mm
• Product weight: 14 kg
• VESA Mount: 200 x 200 mm
• Set dimensions in inch (W x H x D):48.49 x 27.86 x 2.46 inch
Operating conditions
• Altitude: 0 ~ 3000 m
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Relative humidity: 20 ~ 80 (operation),10 -90%(storage) %
Power
• Mains power: 220V~, 50Hz
• Standby power consumption: <0.5W
• Power Saving Features: Smart Power
• Comsumption (Max): 170 W
• Consumption (Typical): 130 W
Accessories
• Included accessories: AC Power Cord, Quick start guide, Batteries for remote control, RemoteControl
Multimedia Applications
• USB Playback Video: MP4, VOB, 3GP, MKV
• USB Playback Picture: BMP, JPEG, JPG, PNG, GIF
• USB Playback Audio: AAC, M4A, MP3, WMA,
MP1, MP2, MP4
Miscellaneous
• Warranty: 3 year warranty
• On-Screen Display Languages: Simplified Chinese,English
• Regulatory approvals: CCC, CECP
Internal Player
• Storage: 8GB eMMC
• CPU: hisiV551 2core A73-1.2GHz
• Memory: 1GB DDR3
• GPU: hisiV551 5core 540MHz
• Wifi: IEEE 802.11 b/g/n W82R2510
