Description

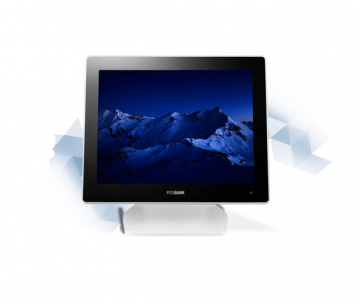

The POSBANK APEXA X-1500R POS Terminal aims to boost your business operations with its strong features and smart design. This complete point-of-sale system mixes high performance with easy-to-use functions making it perfect for shops and restaurants. The APEXA X-1500R has a bright touchscreen display that lets staff handle sales well. Its tough hardware ensures it works, while its small size saves an important counter room. The terminal accepts many ways to pay, including card swipes and phone payments, giving choices to both customers and staff.
You can connect the APEXA X-1500R to your current setup with advanced connection options, like USB, Serial, LAN, and DisplayPort. It also works with different software solutions, so it can fit your specific business needs. If you're in charge of a busy eatery or a shop, it is a clever way to boost productivity and keep customers happy. This terminal can help you run things more and make shopping better for your customers.
Product Features:
- Powerful Processor: Equipped with Intel® Alder Lake-N processor for high-performance computing.
- Enhanced Memory: Comes with 4GB standard DDR4 memory, expandable up to 32GB for seamless multitasking.
- Storage Options: Features SATA 3 (6Gb/s) 2.5 inch SSD 64GB storage, ensuring fast and reliable data access.
- Operating System: Pre-installed with Windows 10 IoT Enterprise LTSC for a secure and stable operating environment.
- Vibrant Display: Boasts a 15" TFT LCD display with LED backlight and 1920 x 1080 resolution for crisp visuals.
- Responsive Touchscreen: Utilizes a projected capacitive touchscreen for intuitive and interactive user experience.
- Comprehensive Connectivity: Offers multiple connectivity options including USB, Serial, LAN, and DisplayPort.
- Robust Construction: Built to withstand demanding retail environments with durable materials and compact design.
- Advanced Security Features: Includes magnetic stripe reader, smart card reader, and fingerprint scanner for enhanced security.
- Easy Installation: Designed for hassle-free installation with VESA-compatible wall mount kit.
Product Specifications:
| Processor | Intel® Alder Lake-N Processor |
| Chipset | Intel® Alder Lake-N |
| Memory | 4GB Standard DDR4 3200 MT/s, 1 x SODIMM (Max. 32GB) |
| Storage | SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI |
| Operating System | Windows 10 IoT Enterprise LTSC |
| Audio | HD Audio Codec |
| Operating Temperature | 0°C ~ 60°C at 10% to 90% Humidity |
| Storage Temperature | -20°C ~ 80°C at 10% to 90% Humidity |
| Dimensions (W x H x D) | 364 x 333 x 210 mm, 14.3 x 13.1 x 8.2 inches |
| Packing Dimensions | 500 x 470 x 300 mm, 19.6 x 18.5 x 11.8 inches |
| Net Weight | To be determined |
| Packing Weight | To be determined |
| Certification | To be determined |
| Color | Dark Grey, High Gloss White |
| Display Type | 15" TFT LCD, LED Backlight |
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m² (typ.) |
| Touchscreen | Projected Capacitive Touch |
| 2nd Displays | 9.7", 15" LCD Display, 1024 x 768, 10.1" LCD Display, 1280 x 800 (Optional Touchscreen) |
| Customer Display | VFD, 20 Columns x 2 Lines |
| Magnetic Stripe Reader | Comply with ISO 7811, Support 1 & 2 & 3 Track |
| Smart Card Reader | EMV Level 1 |
| Dallas i-button Reader | Yes |
| Fingerprint | Yes |
| Wall Mount Kit | VESA-Compatible, 75 x 75 mm, 100 x 100 mm |
| Speaker | 1 x 1W (MONO) (Factory Option) |
| Display Interface | Displayport (MiniDP/ With Power Output) |
| USB | 6 (Rear 2, Back 4, 2 x USB 3.0 , 4 x USB 2.0) |
| Serial | 6 (COM1, Dsub-9, with 5V/12V Power Output on 9 Pins, BIOS) (COM2~3 RJ-45 , Full Signal) (COM4 MiniDP, Only TX/RX, 12V Power Output, Reserved for CDP) (COM5, Dsub-9, Full Signal) (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR) |
| Back I/O | Cash Drawer Port (GPIO Communication) (RJ-12 6 Pins) x 1 + USB 2.0 x 4 |
| LAN | 1 x Gigabit Ethernet (RJ-45) |
| Audio | 1 x Line-out |
| Power | DC-IN 4 Pin DIN Jack |
| Extension Slot | M.2 2242 for SSD (Factory Option) |
| Power Supply Adapter | 12V, 5A (C-Type Plug) |
