Description

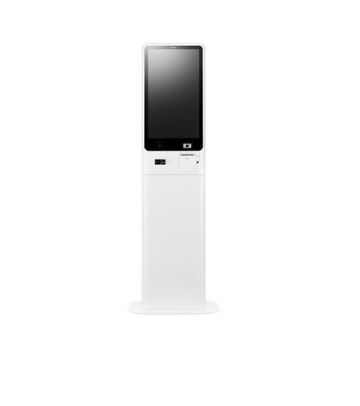

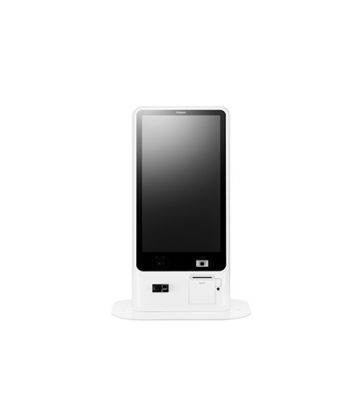

Experience the next generation of self-service kiosk technology with PosBank BIGPOS System. Designed for retail stores and quick-service restaurants in India, PosBank BIGPOS offers an elegant look, easy installation, and quick maintenance. With a focus on meeting diverse business needs, BIGPOS® is engineered to deliver rich functionalities with peripheral and customized options, setting a new standard in self-service solutions.
Product Features:
Product Features:
- Available in three variants: BIGPOS TL, BIGPOS EL, and BIGPOS.
- Powered by Intel® processors for superior performance and reliability.
- Choice of processors including Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, and Cortex™-A17 Quad-Core.
- Flexible memory options with support for up to 32GB DDR4 RAM.
- Storage options include SSD and eMMC for fast and reliable data access.
- Operating system options include Windows 10 IoT Enterprise and Android 7.1/9.0 (Nougat/Pie).

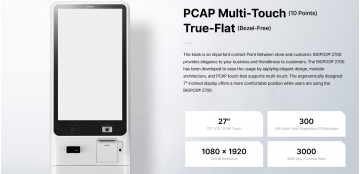

- Sleek and modern design with 27" and 21.5" TFT LCD touchscreens.

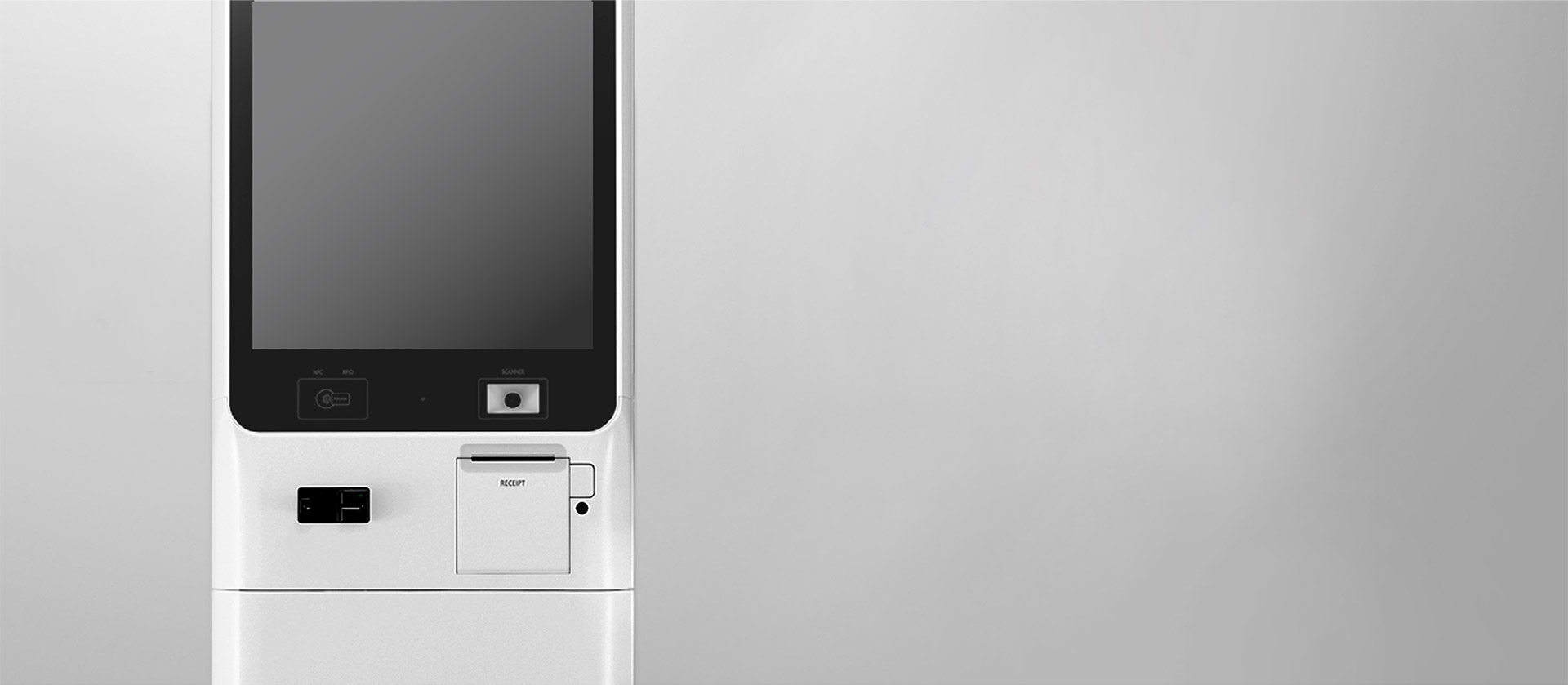

- Versatile interface with multiple USB and serial ports for peripheral connectivity.
- Durable construction with galvanized steel plate pedestal and security locks.
- Wide operating temperature range and robust environmental certifications.
Product Specifications:
| Specification | BIGPOS TL | BIGPOS EL | BIGPOS |
| Processor | Intel® Core™ i5-1135G7 Processor | Intel® Celeron® Processor J6412 | Cortex™-A17 Quad-Core |
| Chipset | Intel® Tiger Lake | Intel® Elkhart Lake | Intel® Apollo Lake |
| Memory | 4GB Standard, DDR4 3200 MT/s | 2GB Standard, DDR3L 1600 MT/s | 4GB Standard, LPDDR4, On board |
| Storage | SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI | SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI | eMMC 64GB (Max. 256GB Optional) |
| Operating Systems | Windows 10 IoT Enterprise LTSC, Android 7.1/9.0 | Windows 10 IoT Enterprise | Windows 10 IoT, Android |
| Audio | HD Audio Codec | HD Audio Codec | HD Audio Codec |
| Display | 27" TFT LCD, LED Backlight | 27" TFT LCD, LED Backlight | 21.5" TFT LCD, LED Backlight |
| Resolution | 1080 x 1920 | 1080 x 1920 | 1080 x 1920 |
| Brightness | 300 cd/m² (typ.) | 300 cd/m² (typ.) | 300 cd/m² (typ.) |
| Touchscreen | Projected Capacitive Touch | Projected Capacitive Touch | Projected Capacitive Touch |
| Response | 12 ms | 12 ms | 12 ms |
| Contrast Ratio | 3000 (typ.) | 3000 (typ.) | 3000 (typ.) |
| USB Ports | 6 (Rear 2 (2 x USB 3.0), Back 4 (4 x USB 2.0)) | 3 (3 x USB 2.0 (Reserved for MSR, SCR, i-button / Touch Controller / Camera), RJ-45) | 6 (Rear 2, Back 4, 6 x USB 2.0) |
| Serial Ports | 6 (COM1 with 5V / 12V Power Output on 9 Pins, BIOS, Reserved for NFC) | 6 (COM1 with 5V / 12V Power Output on 9 Pins, BIOS, Reserved for NFC) | 6 (COM1 with 5V / 12V Power Output on 9 Pins, BIOS, Reserved for NFC) |
| LAN | 1 x Gigabit Ethernet, RJ-45 | 1 x Gigabit Ethernet, RJ-45 | 1 x Gigabit Ethernet, RJ-45 |
| Power | DC-IN 3 Pin DIN Jack, Power Supply Adapter 24V, 6.35A | DC-IN 3 Pin DIN Jack, Power Supply Adapter 24V, 6.35A | DC-IN 3 Pin DIN Jack, Power Supply Adapter 24V, 6.35A |
| Operating Temp. | 0 °C ~ 60 °C at 10% to 90% Humidity | 0 °C ~ 60 °C at 10% to 90% Humidity | 0 °C ~ 60 °C at 10% to 90% Humidity |
| Storage Temp. | -20 °C ~ 80 °C at 10% to 90% Humidity | -20 °C ~ 80 °C at 10% to 90% Humidity | -20 °C ~ 80 °C at 10% to 90% Humidity |
| Dimensions (W x H x D) | Varies based on model | Varies based on model | Varies based on model |
| Certification | TBD | TBD | CE, FCC, KC |
| Color | High Gloss White, High Gloss Black, Custom Colors Available | High Gloss White, High Gloss Black, Custom Colors Available | High Gloss White, High Gloss Black, Custom Colors Available |
