Description

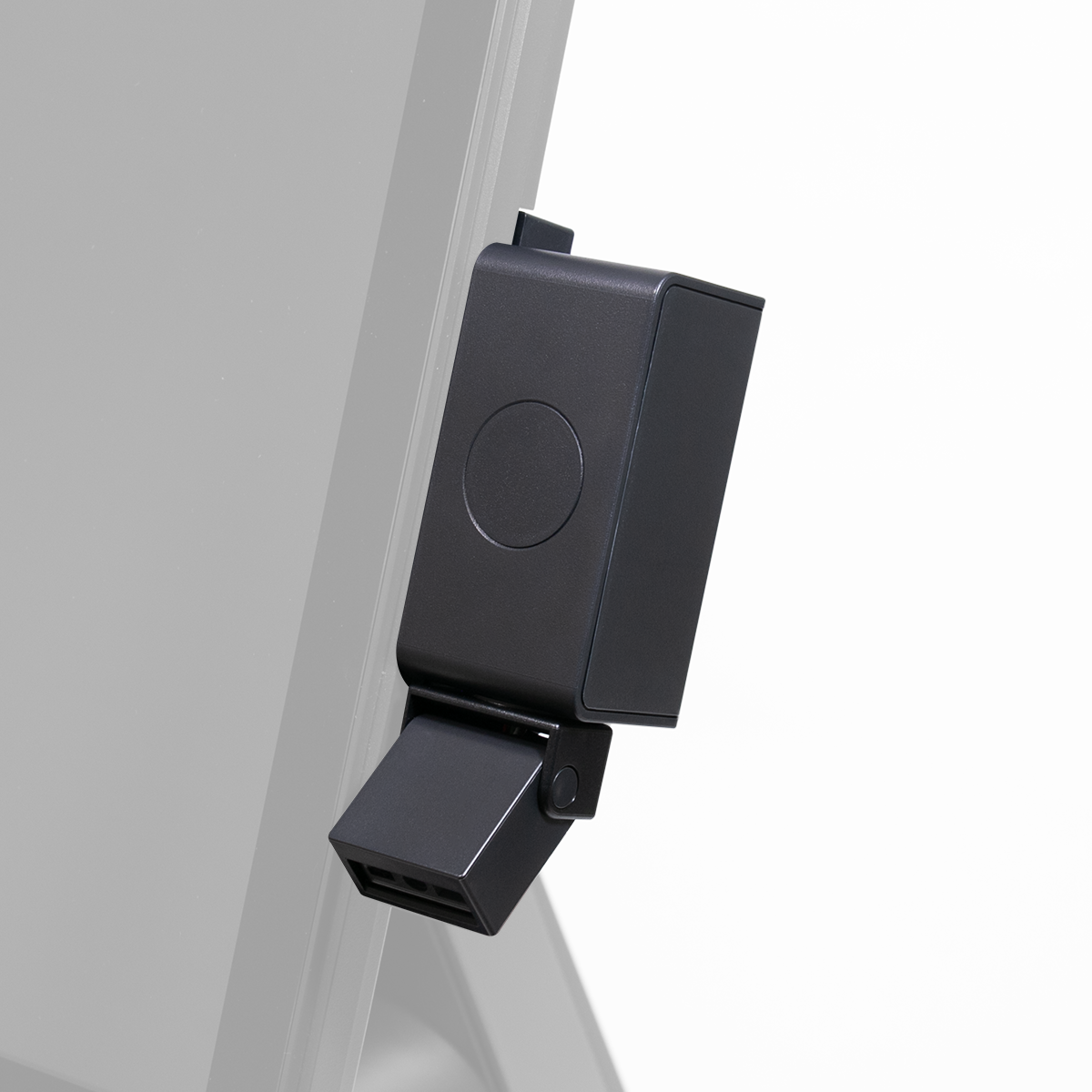

The Posiflex BA-104 is a compact 2D barcode scanner attachment designed for seamless integration with Posiflex BT Series POS terminals. Built with a high-performance CMOS array sensor, it delivers fast and accurate barcode scanning at speeds of up to 60 fps, making it ideal for retail, QSR, and service counter environments. With support for a wide range of 1D and 2D barcodes, including QR codes and postal codes, the BA-104 ensures reliable scanning from printed labels and mobile screens. Its white LED illumination and optimized depth of field allow smooth operation in everyday POS conditions.
Product Features
- High-speed 2D barcode scanner module
- CMOS array sensor technology
- Scan rate up to 60 frames per second
- Supports both 1D and 2D barcodes
- Wide scanning angle for quick reads
- White LED dual light source for stable scanning
- USB interface for POS connectivity
- Compact attachment design
- Designed for Posiflex BT Series terminals
Product Specifications
| Brand | Posiflex |
| Model | BA-104 |
| Scan Rate | Up to 60 fps |
| Scan Method | CMOS array sensor |
| Scan Angle | Horizontal: 41°, Vertical: 26° |
| Resolution | 752 (H) × 480 (V) pixels |
| Light Source | White LED × 2 |
| Interface | USB |
| Depth of Field | 40 – 120 mm (15 mils QR code) |
| Magnetic Stripe Reading | N/A |
| iButton | N/A |
| RFID Reader | N/A |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +70°C |
| Operating Humidity | 20% – 90% RH, non-condensing |
| Storage Humidity | 10% – 90% RH, non-condensing |
| System Supported | Posiflex BT Series |
| Product Type / Condition | New |
