Description

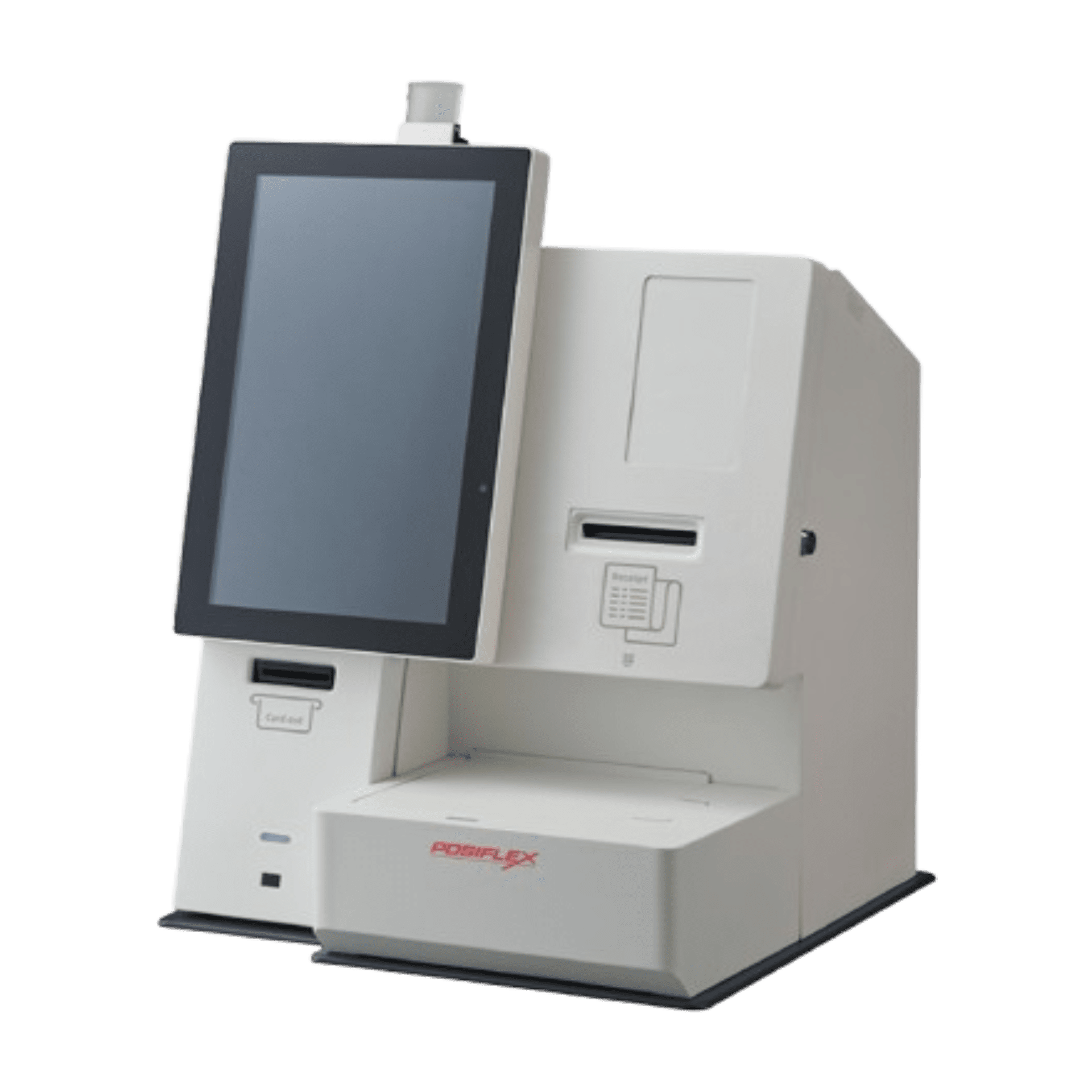

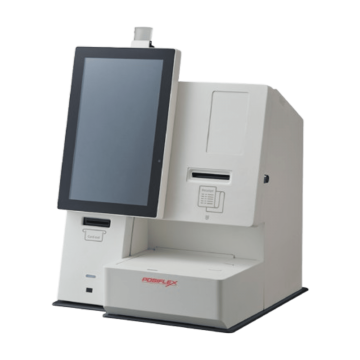

The Posiflex HK-1610 is a compact yet powerful 15.6-inch Android-based self-checkout kiosk, purpose-built for retail, hospitality, healthcare, airports, and service counters facing high customer volume and staff shortages. Designed in a countertop configuration, the HK-1610 integrates multiple peripherals into a single secure unit to deliver a smooth, intuitive self-service experience. Powered by the Rockchip RK3399 processor and running Android 10 with GMS, the kiosk features a Full HD PCAP multi-touch display, inbuilt 3″ thermal receipt printer, 2D barcode scanner, card dispenser, camera, proximity sensor, and RGB status indicator. Flexible I/O connectivity, optional wireless modules, and support for payment terminal brackets or passport readers make it highly adaptable for diverse self-service applications.
Product Features
- 15.6″ Full HD TFT LCD with LED backlight
- True-Flat PCAP multi-touch touchscreen
- Android 10 OS with Google Mobile Services (GMS)
- Rockchip RK3399 high-performance processor
- Integrated 3″ thermal receipt printer (reversible printing)
- Built-in 2D barcode scanner
- Card dispenser for self-checkout workflows
- Wide-angle camera for verification & security
- Proximity sensor for smart user detection
- RGB LED status indicator for system feedback
- Rich I/O with USB and dual LAN connectivity
- Optional Wi-Fi & Bluetooth wireless module
- Support for external payment terminal brackets (optional)
- Optional passport reader (Plustek / Desko)
Product Specifications
| Model | HK-1610 |
| Brand | Posiflex |
| Product Type | Self-Checkout / Self-Service Kiosk |
| Configuration | Countertop |
| Processor | Rockchip RK3399 |
| Operating System | Android 9.0 / Android 10 with GMS |
| RAM | 4GB DDR4 |
| Storage | 32GB eMMC |
| Expansion Storage | microSD Slot ×1 |
| Display Size | 15.6 Inch |
| Display Type | TFT LCD with LED Backlight |
| Resolution | 1920 × 1080 (Full HD) |
| Touch Technology | True-Flat PCAP Multi-Touch |
| Printer | Inbuilt 3″ Thermal Receipt Printer |
| Scanner | Inbuilt 2D Barcode Scanner |
| Card Dispenser | Yes |
| Camera | Inbuilt |
| Proximity Sensor | Yes |
| Audio | Internal 3W Speaker ×1 |
| USB Ports | USB 3.0 ×1, USB 2.0 ×5 |
| Serial Ports | RJ50 ×2 (5V / 12V support) |
| LAN Ports | 10/100 Mbps ×1, Gigabit LAN ×1 |
| OTG | Micro-USB ×1 |
| HDMI | HDMI ×1 |
| Wireless | Optional Wi-Fi 5 / Bluetooth 4.2 |
| 4G / LTE | Optional (cannot coexist with Wi-Fi) |
| Power Supply | 24V / 120W |
| Dimensions (W×D×H) | 460.6 × 441.3 × 677.8 mm |
| Weight | 25.5 kg |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 70°C |
Features
- USB
- Bluetooth
- Wi-Fi
- Android
