Description

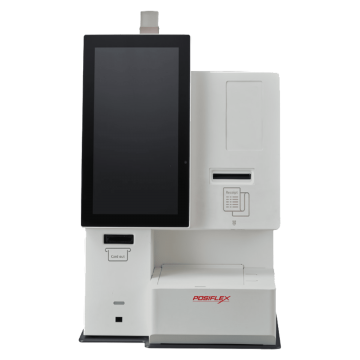

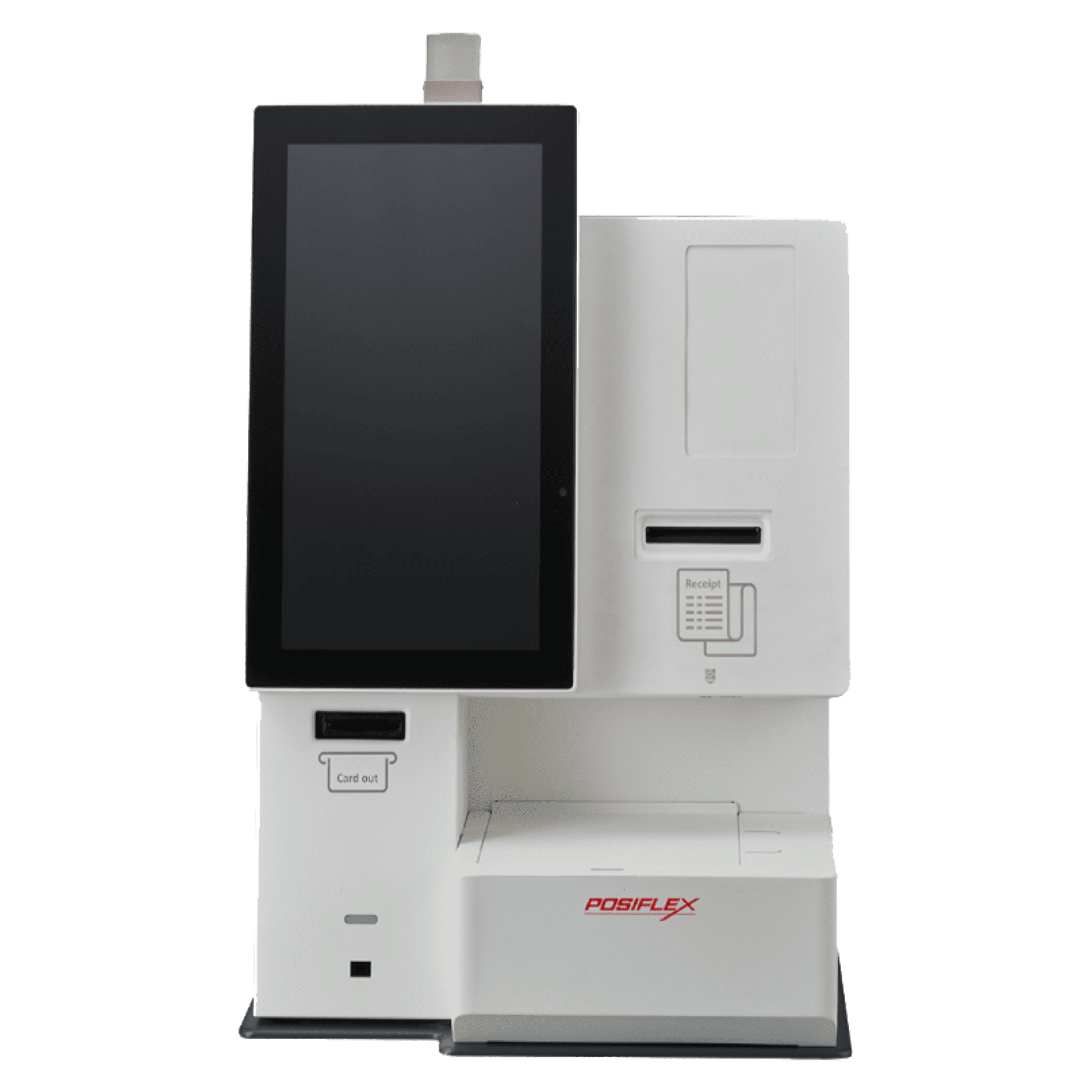

The Posiflex HK-2152 is a high-performance Windows-based self-checkout kiosk from the HK-2100 Series, engineered for secure, reliable, and scalable self-service operations. Designed to enhance customer experience while addressing labour challenges, this countertop kiosk is ideal for retail checkout, hospitality self check-in/out, healthcare registration, ticketing, and government applications. Powered by the Intel Tiger Lake Core i3-1115G4E processor, the HK-2152 delivers strong computing performance for demanding self-service applications. It features a 21.5-inch Full HD PCAP multi-touch display, combined with enterprise-grade peripherals including a 3″ high-speed thermal printer, 2D barcode scanner, card dispenser, wide-angle camera, proximity sensor, and RGB status indicator. With extensive I/O, TPM support, and optional wireless connectivity, the HK-2152 is built for mission-critical environments.
Product Features
- 21.5″ Full HD TFT LCD with LED backlight
- Portrait default orientation (landscape optional)
- True-Flat PCAP multi-touch touchscreen
- Intel Tiger Lake Core i3-1115G4E processor
- Windows 10 IoT / Windows 11 IoT support
- Highly integrated all-in-one self-checkout design
- Built-in 3″ thermal receipt printer with auto cutter
- Reversible printing function
- Integrated 2D barcode scanner
- Contactless card dispenser / recycler support
- 1MP wide-angle camera for security & verification
- Proximity sensor for user detection
- RGB LED status indicator
- Dual Gigabit LAN for reliable wired networking
- Optional Wi-Fi & Bluetooth module
- Optional 4G / LTE connectivity (by request)
- Countertop configuration for space-efficient deployment
Product Specifications
| Model | HK-2152 |
| Series | HK-2100 Series |
| Brand | Posiflex |
| Product Type | Self-Checkout / Self-Service Kiosk |
| Configuration | Countertop |
| Processor | Intel Tiger Lake UP3 Core i3-1115G4E (up to 3.90 GHz) |
| OS Support | Windows 10 IoT 64-bit / Windows 11 IoT GAC |
| RAM | 8GB DDR4 (Expandable up to 32GB) |
| Storage | 256GB M.2 SSD (SATA Signal Only) |
| Display Size | 21.5 Inch |
| Display Type | TFT LCD with LED Backlight |
| Resolution | 1920 × 1080 (Full HD) |
| Touch Technology | PCAP Multi-Touch |
| Orientation | Portrait (Default), Landscape (Optional) |
| Printer | Inbuilt 3″ Thermal Printer with Auto Cutter |
| Print Speed | Up to 250 mm/sec |
| Scanner | Inbuilt 2D Barcode Scanner |
| Card Dispenser | ISO/IEC 14443 Type A/B (Up to 150 cards) |
| Camera | 1MP Wide-Angle Camera |
| Proximity Sensor | Yes |
| Status Indicator | RGB LED |
| Audio | Internal 3W Speaker ×1 |
| USB Ports | USB 3.0 ×4, USB 2.0 ×4 |
| Serial Ports | DB9 ×1, RJ50 ×2 (5V / 12V support) |
| LAN Ports | Gigabit LAN ×2 |
| HDMI | HDMI ×1 |
| Expansion Slot | M.2 2230 ×1 (Wi-Fi / BT) |
| Wireless | Optional Wi-Fi 5 & Bluetooth 4.2 |
| 4G / LTE | Optional (cannot coexist with Wi-Fi) |
| TPM Support | TPM 2.0 |
| Intel vPro | Yes (CPU dependent) |
| Power Supply | 24V / 120W |
| Dimensions (W×D×H) | 497.6 × 441.3 × 814.9 mm |
| Weight | 28.5 kg |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -20°C – 70°C |
