Description

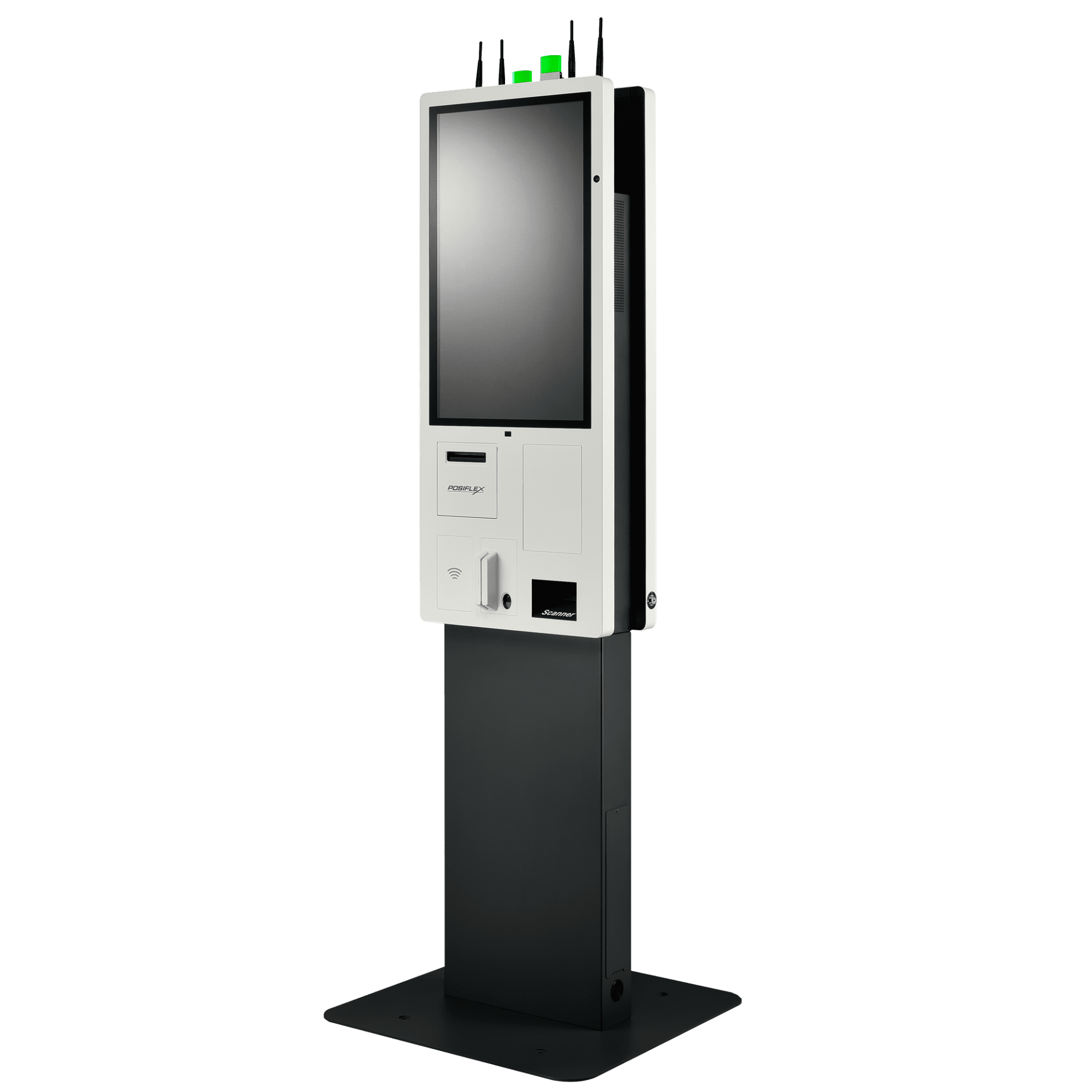

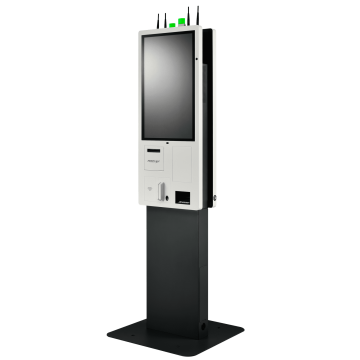

The Posiflex JK-2752 Dual-Side Floor Standing Kiosk from the JK2700 series is designed for maximum throughput and customer engagement in high-footfall locations such as QSRs, multiplexes, airports, retail chains, and public service centers. Equipped with dual 27″ true-flat Full HD PCAP touch displays, the kiosk enables simultaneous interaction from both sides, effectively doubling service efficiency. Powered by Intel Tiger Lake UP3 Core i3 processor, the system delivers enterprise-grade performance with support for Windows 10 IoT and Windows 11. The kiosk integrates a Posiflex PP-7900JK 3″ thermal receipt printer with auto cutter, a high-performance 2D barcode scanner (CD3604JK24), wide-angle camera, proximity sensor, and RGB LED status indicator, creating a complete self-service solution. With 8 USB ports, dual Gigabit LAN, HDMI output, and inbuilt Wi-Fi & Bluetooth, the Posiflex JK-2752 ensures seamless connectivity with backend systems, payment devices, and peripheral expansions. Its easy-maintenance industrial design supports floor-standing, wall-mounted, and dual-side configurations, making it future-ready and deployment-flexible.
Product Features
- Dual-side 27″ Full HD PCAP multi-touch displays
- Intel Tiger Lake 11th Gen Core i3 processor
- Windows 10 IoT / Windows 11 support (NO OS pre-installed)
- Dual-side portrait floor-standing configuration
- Inbuilt 3″ Posiflex PP-7900JK thermal printer with auto cutter
- Integrated high-performance 2D barcode scanner (CD3604JK24)
- Wide-angle camera for customer interaction
- Proximity sensor for auto-wake and engagement
- RGB LED status indicator
- Easy-maintenance industrial kiosk design
- Supports multiple kiosk peripherals and EMV brackets
- Extensive USB, LAN, HDMI connectivity
- Inbuilt Wi-Fi and Bluetooth
Product Specifications
| Brand | Posiflex |
| Series | JK Series |
| Model | JK-2752 |
| Platform | JK2700 |
| Configuration | Dual Side, Floor Standing |
| Operating System Support | Windows 10 IoT 64-bit / Windows 11 (No OS Pre-Installed) |
| Processor | Intel Tiger Lake UP3 11th Gen Core i3 |
| RAM | 8GB DDR4 (Expandable up to 32GB) |
| Storage | 128GB M.2 SSD (SATA) |
| Display Size | 27″ (Dual Display) |
| Resolution | 1920 × 1080 (Full HD) |
| Touch Technology | True-Flat PCAP Multi-Touch |
| Printer | 3″ Thermal Printer (PP-7900JK, Auto Cutter, 250mm/s) |
| Scanner | 2D Barcode Scanner (CD3604JK24) |
| Camera | 1MP Wide-Angle Camera |
| Proximity Sensor | Yes |
| Status Indicator | RGB LED |
| USB Ports | USB 3.0 ×4, USB 2.0 ×4 |
| Serial Ports | DB9 ×1, RJ50 ×2 (5V/12V) |
| LAN | Gigabit LAN ×2 |
| Display Output | HDMI ×1 |
| Wi-Fi | Inbuilt |
| Bluetooth | Inbuilt |
| Audio | Dual 3W Internal Speakers |
| Power Supply | 12V/84W + 24V/60W |
| Mounting | Floor Stand (Wall & Dual-Side Supported) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
