Description

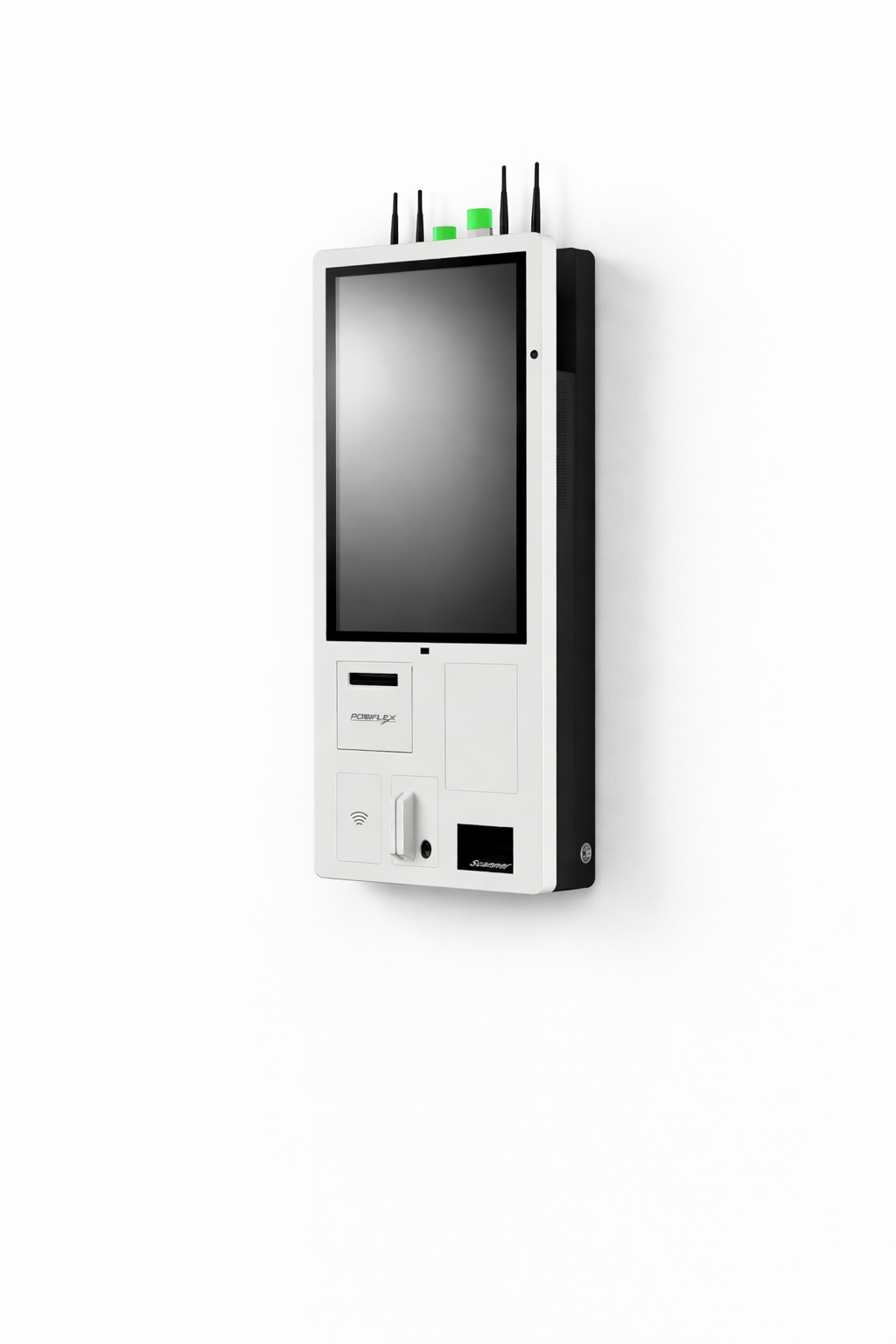

The Posiflex JK-3200 Series is an enterprise-grade 32-inch Android self-service kiosk platform engineered for high-visibility customer engagement in retail, QSR, hospitality, cinemas, transportation hubs, and public service environments. The JK-3210A variant features a single-side portrait wall-mounted configuration, powered by the reliable Rockchip RK3399 processor, running Android 9 / Android 10 with GMS support. Its true-flat Full HD PCAP multi-touch display delivers smooth, responsive interaction while maintaining a sleek industrial aesthetic. Designed for complete self-service operation, the kiosk integrates a 3″ thermal receipt printer with auto cutter, wide-angle camera, proximity sensor for auto-wake, and RGB LED status indicator. With extensive USB, dual LAN, HDMI, and optional Wi-Fi / Bluetooth, the JK-3200 ensures seamless backend and peripheral connectivity. The JK-3200’s easy-maintenance modular design supports wall-mount, floor-stand, and dual-side configurations, allowing businesses to scale deployments effortlessly while supporting optional peripherals such as 2D barcode scanners, EMV payment brackets, MSR, NFC, fingerprint sensors, and more.
Product Features
- 32″ Full HD true-flat PCAP multi-touch display
- Android 9 / Android 10 with GMS support
- Rockchip RK3399 Hexa-core processor
- Single-side portrait wall-mounted configuration
- Inbuilt 3″ thermal receipt printer with auto cutter
- Wide-angle camera for customer interaction
- Proximity sensor for smart activation
- RGB LED status indicator
- Support for optional 2D barcode scanner
- USB, HDMI, dual LAN connectivity
- Optional Wi-Fi and Bluetooth support
- Modular design supporting wall, floor & dual-side installations
- Easy maintenance industrial kiosk architecture
Product Specifications
| Brand | Posiflex |
| Series | JK-3200 Series |
| Model | JK-3210A |
| Configuration | Single Side, Wall Mount (Portrait) |
| Operating System | Android 9.0 / Android 10.0 with GMS |
| Processor | Rockchip RK3399 (Dual Cortex-A72 + Quad Cortex-A53) |
| RAM | 4GB DDR4 |
| Storage | 32GB eMMC + microSD Slot |
| Display Size | 32″ |
| Resolution | 1920 × 1080 (Full HD) |
| Touch Technology | True-Flat PCAP Multi-Touch |
| Printer | 3″ Thermal Printer, Auto Cutter, 250mm/s |
| Camera | 1MP Wide-Angle Camera |
| Proximity Sensor | Yes |
| Status Indicator | RGB LED |
| USB Ports | USB 3.0 ×1, USB 2.0 ×5 |
| Serial Ports | RJ50 ×2 (5V/12V) |
| LAN | 10/100 ×1, Gigabit ×1 |
| Display Output | HDMI ×1 |
| Wi-Fi | Optional (USB Dongle) |
| Bluetooth | Optional |
| Audio | Dual 3W Internal Speakers |
| Power Supply | 12V/60W + 24V/60W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Mounting | Wall Mount Bracket (Included) |
