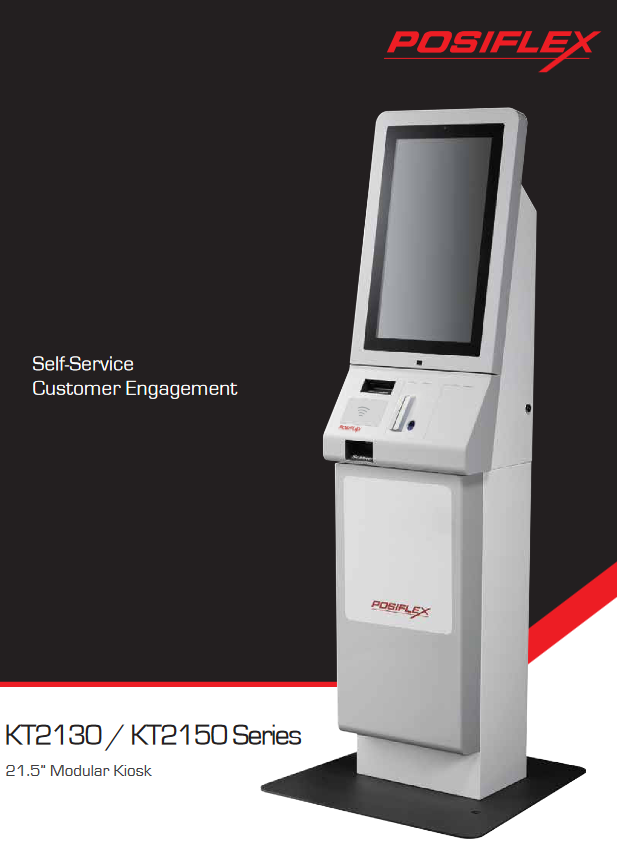

Posiflex KT2130 Modular Kiosk

[Contact us for a price] Request a quote
For Special & Volume Pricing – Call +91 92050 81551
In stock

Need Help

Choosing a Product
+91 92050 81551 Live Chat Contact Us
Talk to our technical Expert
price match


The Posiflex KT2130 Modular Kiosk is a versatile and customizable solution designed for various self-service applications in retail, hospitality, healthcare, and entertainment industries. With its modular design, multiple configurations, and seamless integration of peripherals, it offers businesses the flexibility to enhance customer engagement and streamline operations.

Product Features:

  • Powerful Processor: Equipped with an Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, ensuring smooth and efficient performance.
  • Ample Memory and Storage: DDR3L SO-DIMM slot for up to 8 GB of RAM and SATA SSD for storage, providing ample space for data processing and storage.
  • Built-in Printer: Features a 3" detachable printer with auto cutter, capable of printing at speeds of up to 200 mm/sec, facilitating quick and convenient transactions.
  • High-Resolution Touch Display: Boasts a 21.5" LCD with a resolution of 1920 x 1080 and true-flat PCAP touch technology, offering an intuitive and immersive user experience.
  • Wide Range of Environmental Adaptability: Operates within a temperature range of 0°C to 50°C and humidity range of 20%RH to 90%RH, suitable for diverse operating environments.
  • Modular Design: Available as a countertop kiosk or floor-standing kiosk with pedestal, offering versatile deployment options to suit different business needs.
  • Customizable Peripheral Options: Choose from a series of peripheral options including barcode scanner, receipt/ticket printer, bill acceptor, and card dispenser to tailor the kiosk solution according to specific requirements.
  • Easy Maintenance: All access doors open at the front for easy access during service and maintenance, eliminating the need to move the kiosk or dismantle its main body.
  • Wide Range of Applications: Suitable for various self-service applications such as retail point-of-sale, loyalty programs, restaurant self-ordering, hotel self-check-in, hospital patient check-in, and entertainment venue ticketing.

Product Specification:

Processor Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory DDR3L SO-DIMM slot x 1, max. 8 GB
Storage Device SATA SSD x 1
Power Supply 12V/150W
OS Support Windows 7/POSReady 7/WE 8.1 Industry/Windows 10 IoT
LAN Port 10/100/1000 Mb x 1
Audio Internal 3W speaker x 2
Display & Touch 21.5" LCD, 1920 x 1080 resolution, True-flat PCAP touch with multi-touch support
Physical Dimension 400 x 330 x 1621 mm
Weight 60 kg (with pedestal)
Environmental Operating Condition 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Printer 3" detachable printer with auto cutter, 200 mm/sec (max.)
Internal Expansion Slot M.2 x 1
LAN Port 10/100/1000 Mb x 1
WiFi M.2 WiFi/BT module
Scanner 2D barcode scanner
Proximity Sensor Range from 45 cm to 80 cm
Camera 1MP wide-angle camera
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
NFC Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18902)
Service Indicator 3-color LED indicator
Built-in Options for Pedestal Ticket Printer, Fanfolded ticket printer for ticket thickness: .004” to .011”, ticket width: 2.0” to 3.25”
Bill Acceptor Storing up to 900 notes
Card Dispenser IC Card Dispenser/Encoder, ISO 7816 contact IC cards and ISO 14443 Type A/B contactless cards, storing up to 443 cards
Self-Service Customer Engagement Modular kiosk suitable for various self-service applications, customizable with peripherals such as barcode scanner, receipt/ticket printer, bill acceptor, and card dispenser
Maintenance Front access doors for easy servicing and maintenance
Applications Retail Point-of-Sale, Loyalty Programs, Restaurant Self-ordering, Hotel Self-check-in, Hospital Patient Check-in, Entertainment Venue Ticketing, Access Control


Brochure (KT-2130_KT-2150-.pdf, 418 Kb) [Download]
