Description

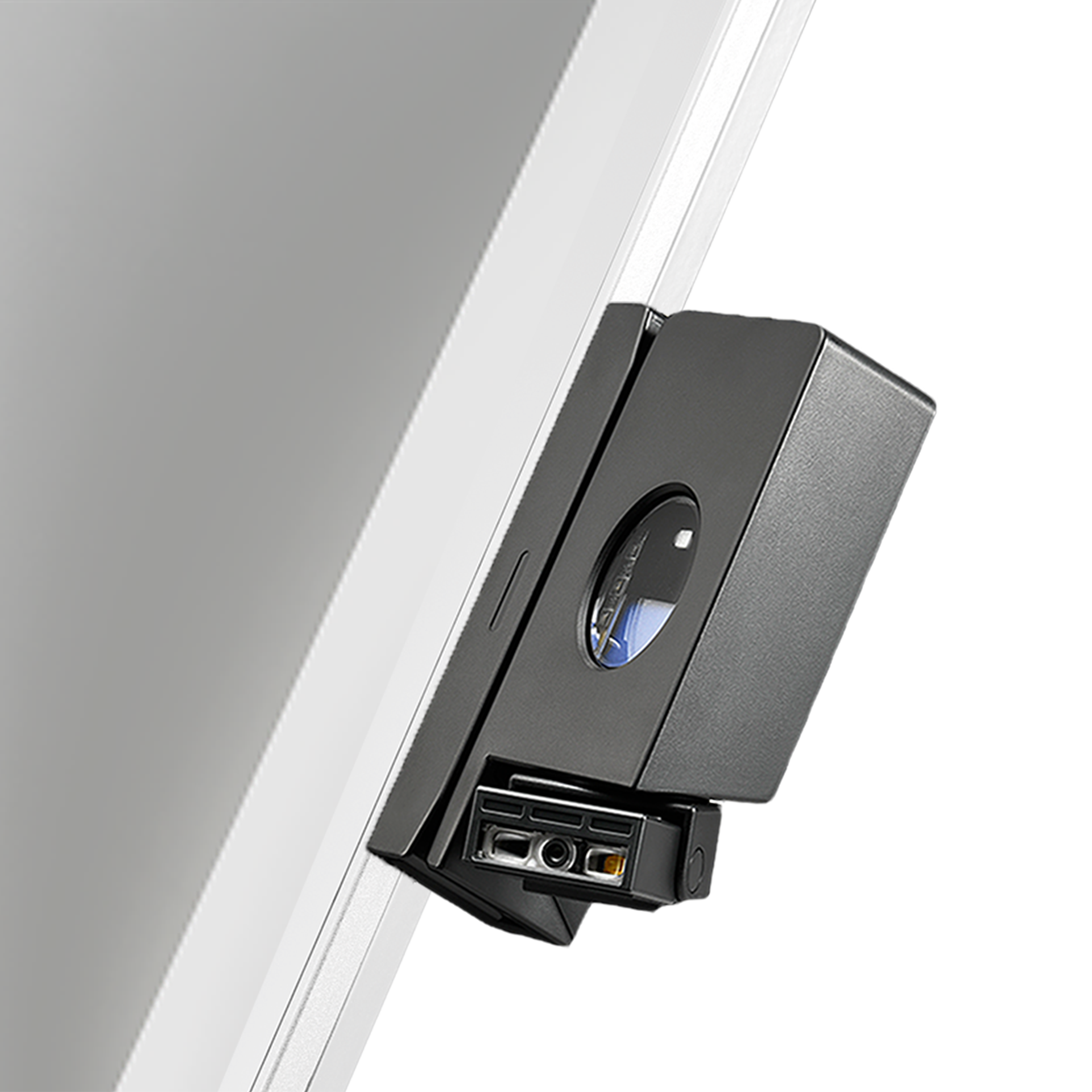

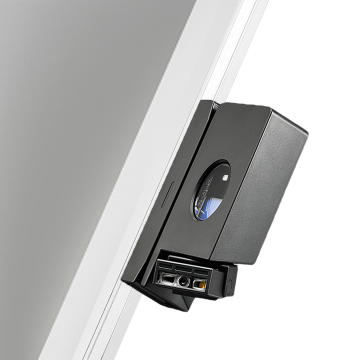

The Posiflex RA-301 is a multifunction POS peripheral combining high-speed 2D barcode scanning, magnetic stripe reading (MSR), and a fingerprint sensor (FP-200) for secure and efficient POS operations. Powered by a CMOS array sensor with a scan rate of up to 100 fps, it delivers fast and accurate barcode capture for retail, hospitality, and service environments. The RA-301 supports bi-directional 3-track MSR compliant with ISO 7811, along with extensive 1D, 2D, and postal barcode decoding. Featuring a wide rotatable and swivel scanning angle and USB interface, it integrates seamlessly with Posiflex RT Series (15” / 15.6”), GT Series (15” / 15.6”), and HC Series POS terminals, making it an ideal all-in-one identification and scanning solution for Indian businesses.
Product Features
- Integrated 2D barcode scanner, MSR, and fingerprint sensor
- High-speed scanning up to 100 frames per second
- CMOS array sensor for accurate decoding
- Bi-directional magnetic stripe reading
- Supports 3-track ISO 7811 magnetic cards
- Wide scanner rotation and swivel angles
- Warm white LED illumination with green aiming LED
- USB interface for stable connectivity
- Compatible with RT, GT, and HC Series POS systems
Product Specifications
| Brand | Posiflex |
| Model | RA-301 |
| Scan Method | CMOS array sensor |
| Scan Rate | Up to 100 fps |
| Resolution | 640 (H) × 480 (V) pixels |
| Scan Angle | Horizontal 38°, Vertical 28.9° |
| Scanner Movement | 110° tilt, 180° swivel |
| Light Source | Illumination: Warm white LED; Aiming: Green LED |
| Depth of Field | UPC/EAN (13 mil): 52–293 mm; Code 39 (5 mil): 55–128 mm; Code 39 (10 mil): 54–239 mm; Code 39 (20 mil): 71–435 mm; Code 128 (7.9 mil): 64–193 mm; PDF417 (10 mil): 44–213 mm; Data Matrix (10 mil): 45–175 mm; QR Code (15 mil): 24–252 mm |
| Magnetic Stripe Reading | Bi-directional swipe |
| Track Support | 3-track |
| Card Standard | ISO 7811 |
| Interface | USB |
| 1D Barcode Support | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 DataBar, IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN-ISSN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| 2D Barcode Support | Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (Mode 2–5), MicroPDF417, Micro QR Code, PDF417, QR Code |
| Postal Code Support | Chinese Post, Intelligent Mail Barcode, Korean Postal Authority Code, POSTNET |
| Fingerprint Sensor | FP-200 |
| System Compatibility | RT Series 15"/15.6", GT Series 15"/15.6", HC Series |
| Usage | Barcode Scanning, MSR & Biometric Identification |
| Product Type / Condition | New |
