Description

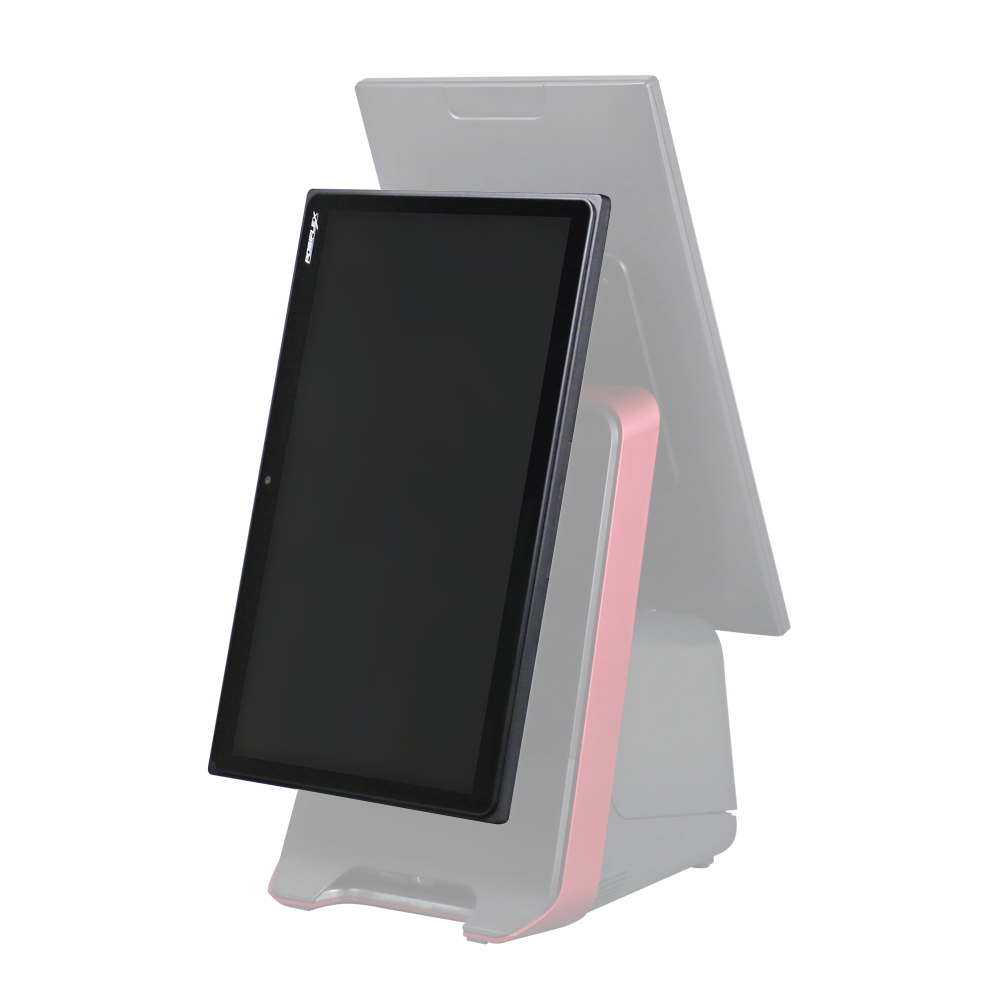

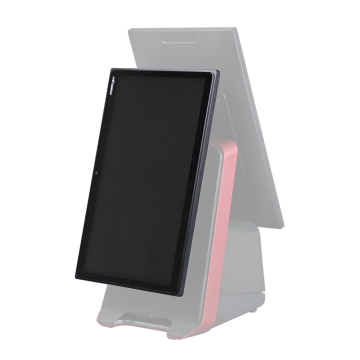

The Posiflex TM-BT16 is a premium 15.6-inch rear-mounted POS display designed for modern, high-resolution customer and operator interaction. Featuring a Full HD 1920 × 1080 resolution, wide viewing angles, and high brightness, it delivers sharp visuals ideal for digital receipts, promotions, and interactive POS workflows. Powered and driven via a single USB-C connection from Posiflex BT series terminals, the TM-BT16 ensures a clean, space-saving installation. The series also offers a TM-BT16C variant with bezel-free PCAP touch, making it suitable for touch-driven applications. With optional 5MP camera support and VESA 100 mounting, it is a future-ready display solution for Indian retail and hospitality environments.
Product Features
- Large 15.6-inch rear-mounted TFT LCD POS display
- Full HD 1920 × 1080 resolution for crystal-clear visuals
- High 400 nits brightness for well-lit environments
- Wide viewing angles: 89° U/D/L/R
- USB-C interface for display signal and power
- Designed for Posiflex BT series terminals
- TM-BT16C variant with bezel-free PCAP touch
- Supports VESA 100 mounting
- Fast response time for smooth display performance
- Optional 5MP camera support
Product Specifications
| Brand | Posiflex |
| Model | TM-BT16 |
| Display Size | 15.6 Inch TFT LCD |
| Resolution | 1920 × 1080 (Full HD) |
| Viewing Angle | 89° Up / 89° Down / 89° Left / 89° Right |
| Response Time | 25 ms (Rising + Falling) |
| Pixel Pitch | 0.17925 × 0.17925 mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Brightness | 400 nits |
| Contrast Ratio | 800:01:00 |
| Active Area | 344.16 × 193.59 mm |
| Display Interface | USB-C |
| Touch Technology | No Touch (TM-BT16C: Bezel-free PCAP Touch) |
| Touch Interface | — (TM-BT16C: USB) |
| Power Supply | 12V from Posiflex BT series USB-C port |
| System Compatibility | Posiflex BT Series |
| Mounting | Rear Mounted, VESA 100 Support |
| Optional Module | 5MP Camera |
| Colour | Black |
| Usage | POS Customer / Operator Display |
| Warranty | 1 Year |
| Product Type / Condition | New |
