Description

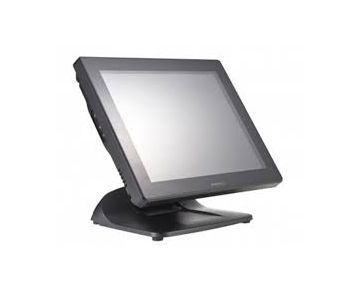

The Posiflex XT-8315 is designed as a high-performance companion to the XT-7315, upgraded with 11th Generation Intel® Tiger Lake UP3 processors to deliver exceptional speed, reliability, and enterprise-grade computing power. Built for modern retail, F&B, and service counters, it handles intensive POS workloads, multitasking, and backend integrations with ease. It features a 15-inch true-flat PCAP capacitive touchscreen with IP65-rated front panel, offering superior protection against dust, liquid spills, and grease—perfect for high-traffic billing environments. The fanless architecture ensures silent operation, reduced maintenance, and long-term durability. With support for dual M.2 storage (SATA + PCIe), RAID 0/1, extensive I/O expansion, and optional powered USB through the GEN8E multi-position folding base, the XT-8315 delivers unmatched flexibility for peripheral integration and future scalability. Supporting Windows 10 IoT LTSC and Windows 11 IoT LTSC, the XT-8315 is a robust, secure, and future-ready POS terminal for professional deployments.
Product features
- 15” true-flat PCAP touchscreen with multi-touch support
- IP65-rated front panel for dust and liquid resistance
- Fanless design for silent, reliable, low-maintenance operation
- Dual M.2 storage slots supporting SATA & PCIe
- RAID 0 / RAID 1 support for data protection and performance
- GEN8E multi-position folding base for flexible installation
- Dual Gigabit LAN ports for redundancy and network stability
- Supports Windows 10 IoT LTSC & Windows 11 IoT LTSC
Product Specifications
| Model | XT-8315 |
| RAM | DDR4 SO-DIMM ×2, up to 64GB |
| Storage | M.2 ×2 (SATA & PCIe supported) |
| RAID Support | RAID 0 / RAID 1 |
| TPM | TPM 2.0 |
| Display Size | 15” TFT LCD |
| Resolution | 1024 × 768 |
| Touch Technology | True-flat PCAP, multi-touch |
| Front Panel Protection | IP65 |
| Operating System | Windows 10 IoT LTSC, Windows 11 IoT LTSC |
| USB Ports | USB 3.0 ×4, USB 2.0 ×2 |
| Serial Ports | RJ50 ×3, optional COM4/COM5 |
| LAN | Gigabit Ethernet ×2 |
| Display Output | VGA ×1 (12V), HDMI ×1 |
| Cash Drawer Port | RJ11 ×1 (supports dual drawer via Y-cable, 24V) |
| Audio | Internal 2W speaker + line-out/mic-in combo |
| Power Supply | 12V / 60W |
| Base | GEN8E multi-position folding base |
| Dimensions (W×D×H) | 372 × 252.7 × 320 mm |
| Weight | 6 kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
