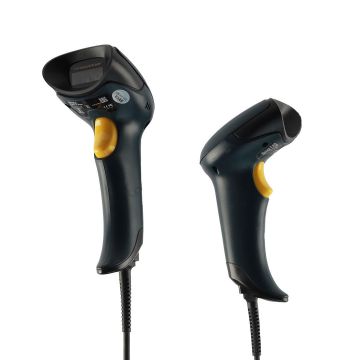

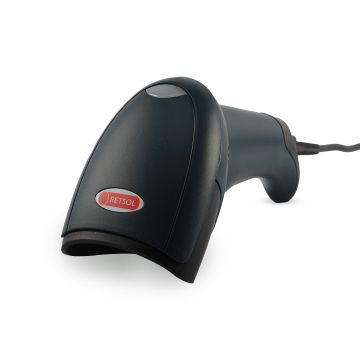

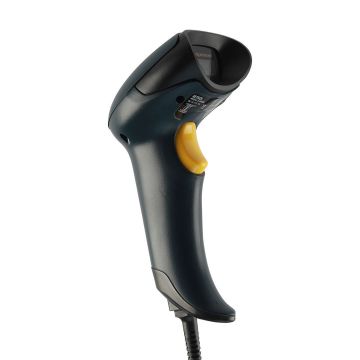

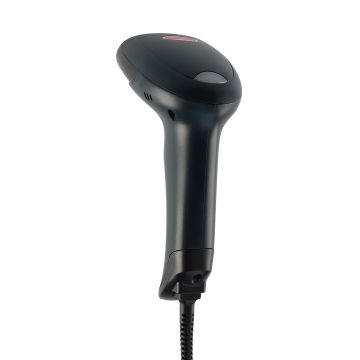

RETSOL D-2060N Handheld 2D Scanner

D-2060N
[Contact us for a price] Request a quote
For Special & Volume Pricing – Call +91 92050 81551

Need Help

Choosing a Product
+91 92050 81551 Live Chat Contact Us
Talk to our technical Expert
price match

Description

The RETSOL D-2060N Handheld 2D Scanner is a versatile and efficient solution for businesses seeking reliable barcode scanning capabilities. With its ergonomic and sleek design, this scanner provides comfortable handling for extended use. Equipped with a large scan window and fast decoding technology, it ensures quick and accurate scanning of both 1D and 2D barcodes. Its rugged construction and high scan speed make it suitable for various industries, while the option for USB or RS-232 interfaces offers flexibility in connectivity.

Key Features:

  • Ergonomic and sleek design for comfortable handling
  • Fast decoding technology ensures quick scanning
  • Large scan window for efficient barcode capture
  • High scan speed, including reading from screens
  • Durable construction meets 1.5m (5') drop standard
  • Capable of reading all mainstream 1D/2D barcodes
  • Low power consumption for energy efficiency
  • USB or RS-232 interfaces for flexible connectivity

Technical Specifications:

Image (pixels) 640 pixels (H) x 480 pixels (V)
Light Source Aiming: 617nm LED; Illumination: 6500K LED
Field of View 40° (H) x 32° (V)
Scan Precision 4mil
Scan Speed 60 Frames/Second
Roll / Pitch / Yaw 360°, +65°, +60°
Print Contrast 25% Minimum Reflective Difference
Physical Parameters Details
Dimensions 170mm x 95mm x 70mm
Weight 126g
Voltage 5V DC + 10%
Current 300mA (operating)
1D UPC, EAN, Code128, Code39, Code93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 Databar, China Postal, Korean Postal, etc.
2D PDF417, Micro PDF417, Data Matrix, Maxicode, QR Code, Micro QR Code, Aztec
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 70°C
Humidity 0% to 95% relative Humidity, Non-Condensing
Shock Specification Designed to Withstand 1.5m (5') Drops
Ambient Light Immunity 100,000 Lux
Warranty 2 Years - Factory Warranty

Attachments

Brochure (Retsol-D-2060N-Barcode-Scanner.pdf, 2,648 Kb) [Download]
