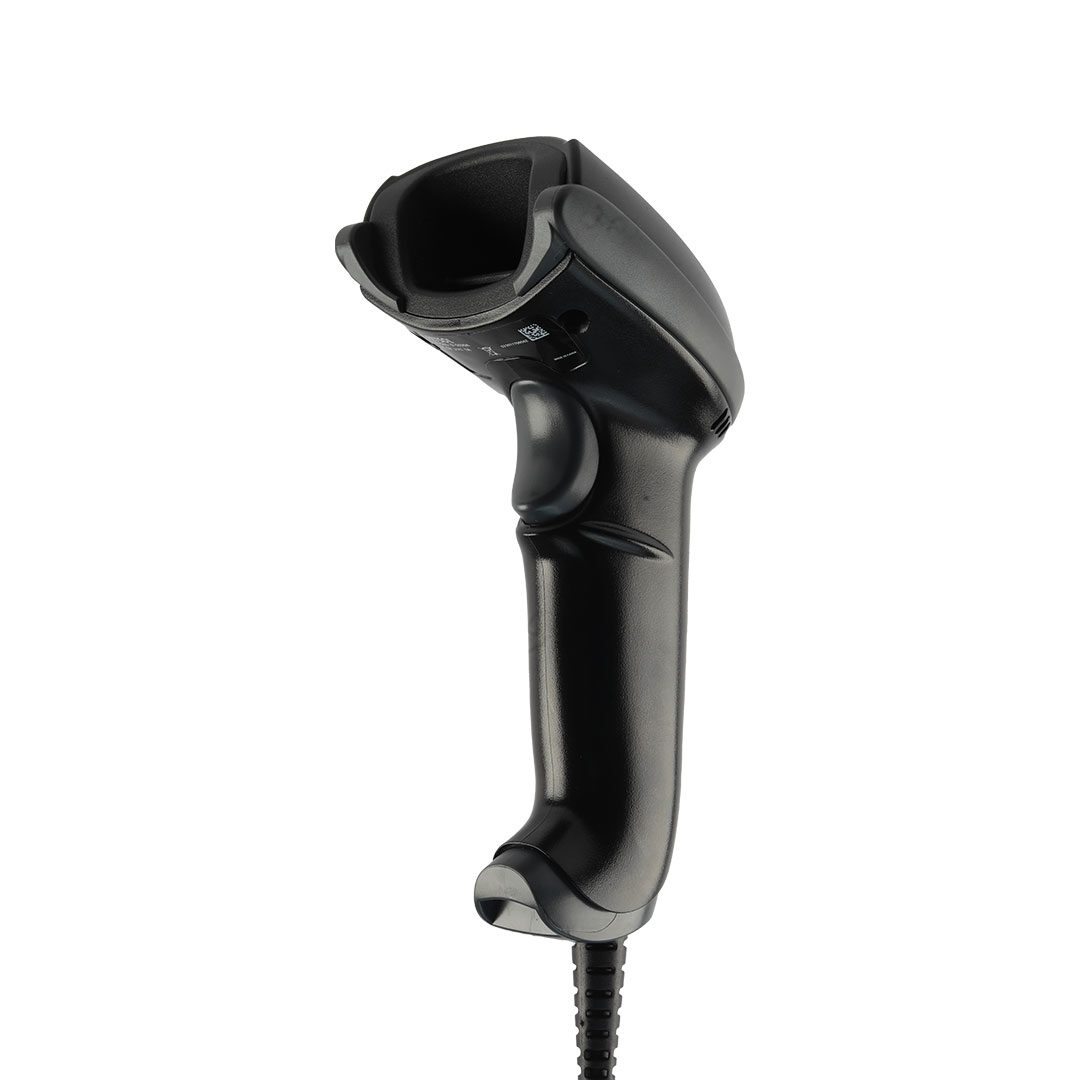

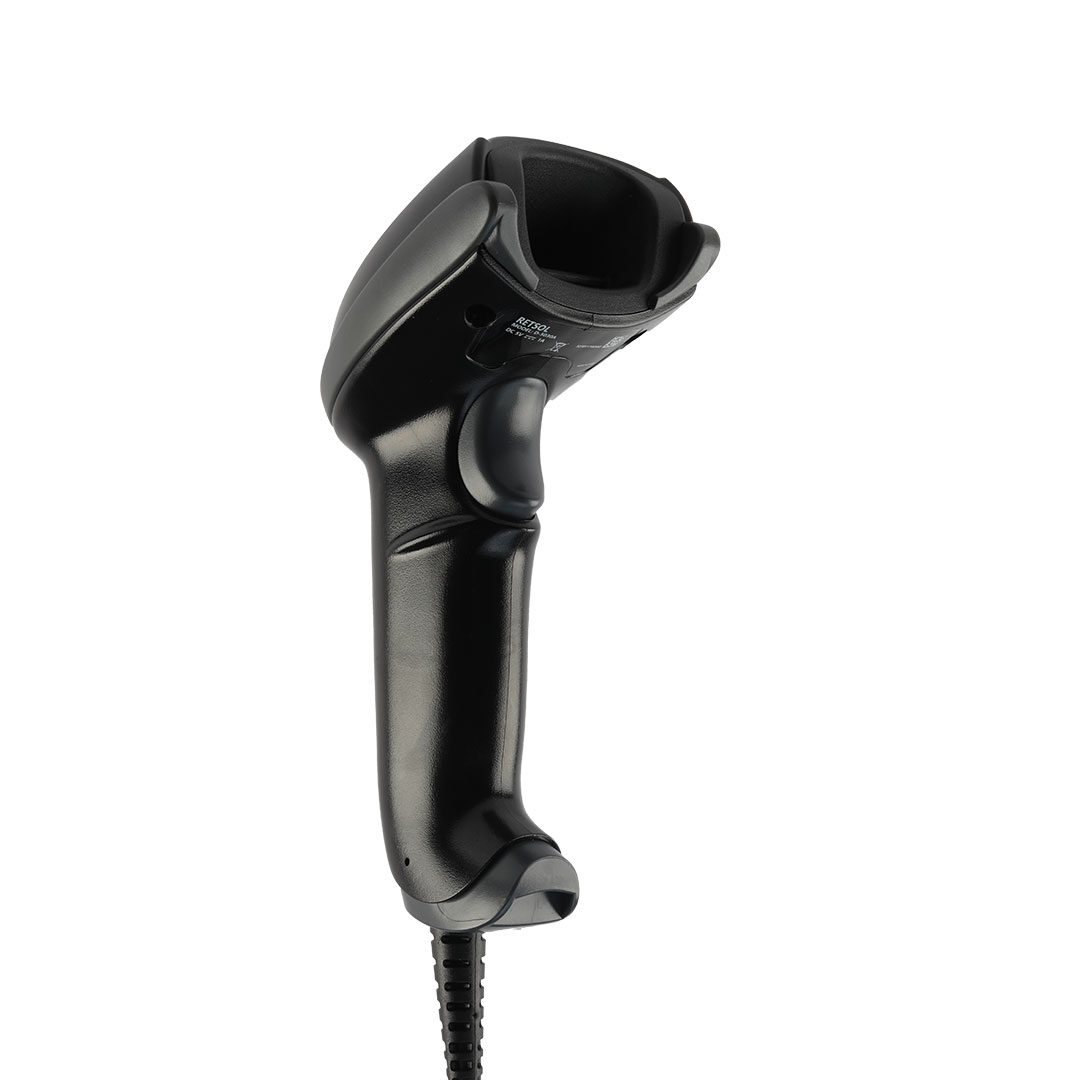

RETSOL D-5030A 2D Handheld Scanner

[Contact us for a price] Request a quote
For Special & Volume Pricing – Call +91 92050 81551
In stock

Need Help

Choosing a Product
+91 92050 81551 Live Chat Contact Us
Talk to our technical Expert
price match


The RETSOL D-5030A 2D Handheld Scanner is a high-performance scanning solution designed to meet the demands of various industries. With its excellent scanning performance, it offers both speed and precision, ensuring efficient barcode capture. This scanner excels in decoding small barcodes, dense barcodes, and DPM codes, making it suitable for a wide range of applications. Equipped with an optional stand and integrated advanced illumination system, it provides enhanced usability and versatility. The new aimer design enhances accuracy, while the capability to scan barcodes from mobile screen LCD/LED adds convenience to your workflow.

Key Features:
  • Excellent scanning performance with speed and precision
  • Decoding of small barcode, dense barcode, and DPM code
  • Available with an optional stand for flexible usage
  • Capable of scanning barcodes from mobile screen LCD/LED
  • Integrated advanced illumination system for enhanced visibility
  • New aimer design for improved accuracy

Technical Specifications:

Image (pixels) 1280 pixels (H) x 1080 pixels (V)
Light Source Illumination: 4000K LED + 617nm LED
Field of View 38.5° (H) x 32.5° (V)
Roll / Pitch / Yaw Roll 60° / Pitch 65° / Yaw 360°
Print Contrast 15% Minimum Reflective Difference
Interfaces Supported USB, RS-232
Motion Tolerances 2m/s
Physical Parameters Details
Dimensions 180mm x 95mm x 70mm
Weight 174g
Voltage 5V DC + 10%
Current 500mA (operating)
Symbology Decode Capability
1D UPC, EAN, Code128, Code39, Code93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc.
2D PDF417, Micro PDF417, Data Matrix, Maxicode, QR Code, Micro QR Code, etc.
User Environment Details
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 70°C
Humidity 0% to 95% relative Humidity, Non-Condensing
Shock Specification Designed to Withstand 1.5m (5') Drops
Ambient Light Immunity 100,000 Lux
Warranty 2 Years - Factory Warranty


Brochure (Retsol-D-5030A.pdf, 5,327 Kb) [Download]
