SAMSUNG DB49J 49IN HD USB SIGNAGE DISPLAY

DB49J
[Contact us for a price] Request a quote
For Special & Volume Pricing – Call +91 92050 81551
On backorder

Need Help

Choosing a Product
+91 92050 81551 Live Chat Contact Us
Talk to our technical Expert
price match

Description

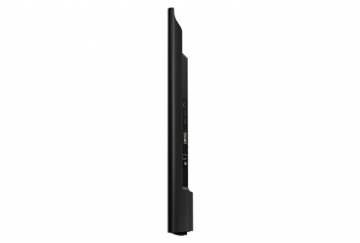

SAMSUNG DB49J 49IN HD USB SIGNAGE DISPLAY

Mainstream Professional Display for AVSI & Digital Signage Projects with Full HD Resolution / HDMI / DVI / RS232 / USB / RJ45 / Wi-Fi Ready / Built-in-Speakers / Inbuilt Media Player & MagicInfo S3 with Web Browsing

Features :
  • Professional-grade, cost-effective display solution that supports 16/7 operation and 300-nit brightness
  • Enhanced graphic performance and content security within a powerful Tizen 3.0 OS
  • Simplified content management with built-in Wifi and an easy-to-use mobile application
  • High-quality picture with Full HD resolution and an edge-lit LED panel
  • Reliable 16/7 operation backed by a 3-year onsite warranty
  • All-in-one digital signage solution with an integrated media player and advanced graphic presentation features
  • Intuitive, easy-to-use digital signage display with a built-in tuner

SPECIFICATIONS :

Display

Screen Size

49"

Panel Technology

60Hz Slim D-LED BLU

Resolution

1920x1080 (Full HD)

Pixel Pitch (mm)

0.18642(H) x 0.55926(V)

Active Display Area (mm)

1073.78(H) x 604.00(V)

Brightness (Typ.)

300 nits

Contrast Ratio

3000:1

Viewing Angle (Horizontal/Vertical)

178° / 178°

Response Time (G-to-G)

8ms

Display Colors

16.7 M

Color Gamut

72%

Haze

2%

Display

Dynamic C/R

MEGA

H-Scanning Frequency

30 ~ 81kHZ

V-Scanning Frequency

48 ~ 75HZ

Maximum Pixel Frequency

148.5MHz

Sound

Speaker Type

Built in Speaker(10W + 10W)

Connectivity

Input

  • Video: HDMI 1.4 (2), DVI-D
  • HDCP: HDCP 2.2
  • Audio: Stereo Mini Jack, DVI/HDMI/Audio(Common)
  • USB: USB 2.0 x 1

Output

  • Audio: Stereo Mini Jack
  • External Control: RS232C(in/out) thru stereo jack, RJ45
  • Tuner: Yes(only for NA)

Power

Type

Internal

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

  • Max[W/h]: 121
  • Typical[W/h]: (W/W)67, (US)38, (KR)67
  • BTU(Max): 412.6
  • Sleep mode: less than 0.5W
  • Off mode: 0

Dimensions

Product Dimensions

44.04" x 25.6" x 2.92"

Packaging Dimensions

48.66" X 29.53" X 6.34"

Bezel Width

17.4"(Top), 18.5"(Bottom), 21.5"(Side)

Weight

Product Weight

22.49 lbs.

Shipping Weight

32.63 lbs.

Environmental Conditions

Recommended Usage Hours

16/7

Operating Temperature

0°C - 40°C

Operating Humidity

10%~80%

Features

Key Features

Light Signage with Built-in MagicInfo S5, SSSP 5.0

Special Features

H/W : Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded S/W : Magic Clone(to USB), Auto Source Switching & Recovery, Image Rotation, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Player S5, Firmware Update by Network

Internal Player

  • Processor: Cortex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
  • Clock Speed: 1.7GHz Quad-Core CPU
  • Main Memory: Interface 2.5GB LPDDR4 1400MHz 64bit
  • Graphics: 2D & 3D Graphic Accelerator Data Format : 32bpp Graphic resolution : 1920x1080 Output resolution : 1920x1080
  • Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • Multimedia: Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc
  • IO Ports: USB 2.0
  • Operating System: Tizen 3.0 (VDLinux)

Certification

Safety

CB (Europe) : IEC60950-1/EN60950-1 - CCC (China) : GB4943.1-2011 - PSB (Singapore ) : PSB+IEC60950-1 - NOM (Mexico ) : NOM-001-SCFI-1993 - IRAM (Argentina ) : IRAM+IEC60950-1 - SASO (Saudi Arabia ) : SASO+IEC60950-1 - BIS(India) : IEC60950-1 / IS13252 - NOM(Mexico) : Tunerless : NOM-019-SCFI-1998 - KC(Korea) : K 60950-1 - EAC(Russia) : EAC+IEC60950-1 - INMETRO(Brazil) : INMETRO+IEC60950-1 - BSMI(Taiwan) : BSMI+IEC60950-1 - RCM(Australia) : IEC60950-1/AS/NZS 60950-1 - CSA (Canada) : cUL - UL(USA) : cUL60950-1 - TUV (Germany) : CE - NEMKO (Norway) : CE

EMC

FCC (USA) Part 15, Subpart B Class A - CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 - VCCI (Japan) : VCCI V-3 /2010.04 Class A - KCC/EK (Korea) : Tunerless : KN22 / KN24 - BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital) - C-Tick (Australia) : AS/NZS CISPR22:2009 - CCC(China) :GB9254-2008, GB17625.1-2012 - GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003

Accessories

Included

Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter

Optional Mount

WMN4070SE

Optional Stand

STN-L4355F

Media Player

SBB (Not attatchable)
