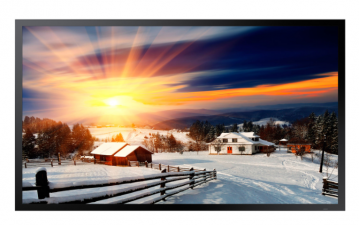

SAMSUNG OH55F 55IN FULL HD SIGNAGE DISPLAY
Ultra High Brightness Display for Outdoor Applications - Weather Proof / External Power Supply with 2500 NITS/ IP56 Ingress Protection.

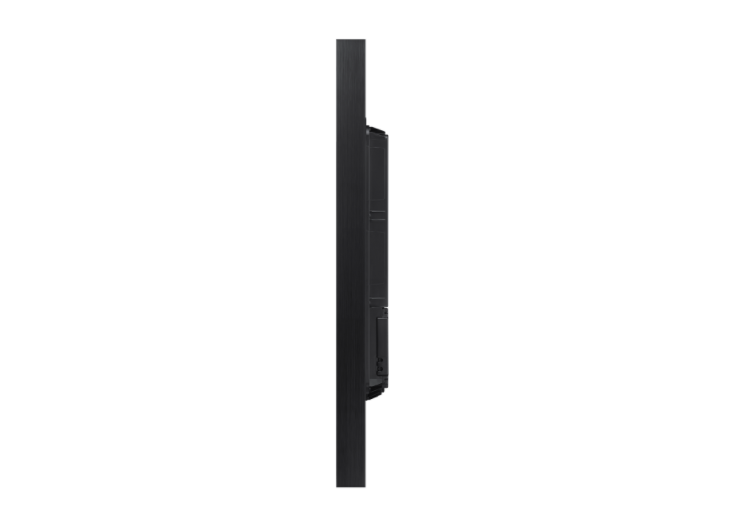

- All-in-one solution complete with an embedded power box, along with an ultra-slim depth of 85mm
- An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection
- A filterless self-cooling system enabling easy maintenance and reduced TCO
- Excellent visibility under direct sunlight through 2,500-nit high brightness and anti-reflection glass
- An advanced content management solution via SSSP 4.0 powered by TIZEN
- 2500 cd/m2 brightness rating and 5000:1 contrast ratio
- Auto Brightness sensor
- Circular polarizing technology to eliminate display blindness caused by polarized sunglasses
- Anti-reflection glass for improved visibility under direct sunlight
- Enhanced content management solution via SSSP 4.0 powered by TIZEN
- MagicInfo S4 powered by Tizen helps in convenient content creation, scheduling, and deployment
- Cortex-A12 1.3 GHz Quad Core CPU
- Conforms to IK10 vandal-resistant and IP56 ingress protection standards
- Integrated self-cooling system allows the display to be operated in temperature ranges from -22 to 122°F
SPECIFICATIONS :
Display
|
Screen Size (Diagonal) |
55" |
|
Resolution |
1920 x 1080 |
|
Panel Type |
VA LCD |
|
Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
|
Brightness |
2500 cd/m² |
|
Viewing Angle (H x V) |
178 x 178° |
|
Screen Area |
47.6 x 26.8" / 121 x 68 cm |
|
Contrast Ratio |
5000:1 |
|
Dynamic Contrast Ratio |
100,000:1 |
|
Response Time |
6 ms |
|
Horizontal Frequency |
108 to 139.5 kHz |
|
Vertical Frequency |
96 to 123 Hz |
|
Dot Pitch |
0.63 x 0.63 mm |
|
Pixel Clock Frequency |
297 MHz |
Connectivity
|
Input Ports |
2 x HDMI 1.4 Audio, Video |
|
Output Ports |
1 x 1/8" / 3.5 mm – Audio |
|
USB Ports |
1 x USB 2.0 |
|
Ethernet Ports |
1 |
General
|
HDCP Support |
Yes, Version 2.2 |
Surface
|
Haze Level |
0% |
Audio
|
Processing |
DTS |
Hardware
|
Operating System |
Tizen 2.4 |
|
Processor |
1.3 GHz ARM Cortex A12 Quad-Core |
|
Storage |
8 GB |
|
RAM |
2.5 GB DDR3 1866 MHz |
Convenience
|
Supported Video File Types |
H.263, H.264/AVC, MPEG, MPEG2, MPEG4, VP8, VP9 |
|
Supported Audio File Types |
AC3 |
|
Supported Photo File Types |
JPEG, PNG |
Electrical
|
Power Consumption |
Maximum: 554.0 W |
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
Environmental
|
Operating Temperature |
-22 to 122°F / -30 to 50°C |
|
Operating Humidity |
10 to 80% |
Physical
|
Material of Construction |
5T Glass |
|
Bezel Thickness |
24.9 mm (Bottom) |
|
Duty Cycle |
24 Hours / 7 Days |
|
Dimensions |
49.6 x 28.7 x 3.3" / 1260.6 x 731.4 x 85.0 mm |
|
Weight |
116 lb / 52.6 kg |
