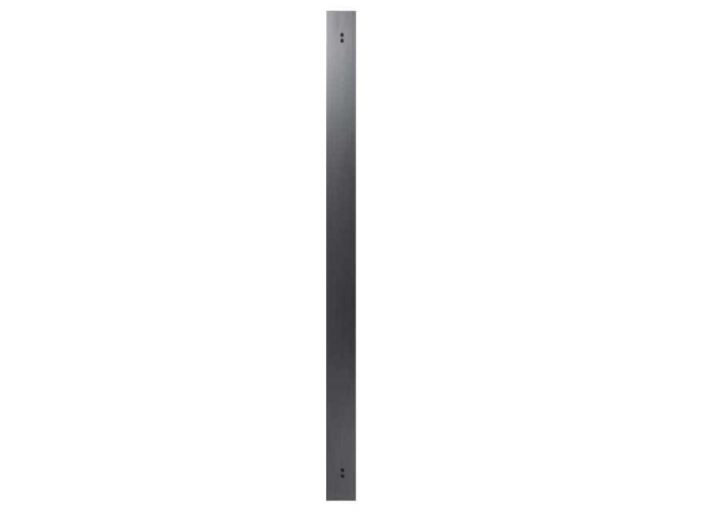

SAMSUNG OH85F 85IN 4K UHD OUTDOOR SIGNAGE DISPLAY

[Contact us for a price] Request a quote
OH85F

Description

SAMSUNG OH85F 85IN 4K UHD OUTDOOR SIGNAGE DISPLAY

Ultra High Brightness Display for Outdoor Applications - Weather Proof / Magic Glass/ 24 X7 usage/ IP56/ Endurance Equivalent to IK10/2500 NITS.

Features :
  • 2500 cd/m2 brightness rating and 3000:1 contrast ratio
  • Auto Brightness sensor
  • Circular polarizing technology to eliminate display blindness caused by polarized sunglasses
  • Anti-reflection glass for improved visibility under direct sunlight
  • Conforms to IK10 vandal-resistant and IP56 ingress protection standards
  • Integrated self-cooling system allows the display to be operated in temperature ranges from -22 to 122°F
  • Protection glass (IK-10 Level, anti-graffiti, infrared reduce)
  • Supports portrait/landscape installation
  • Lamp error detection
  • Ambient brightness sensor
  • Temperature sensor
  • RJ45 MDC
  • Auto source switching and recovery
  • Clock battery (80 hours clock keeping)
  • Full HD 4-PBP (Picture-By-Picture)

SPECIFICATIONS :

Display

Screen Size (Diagonal)

85"

Resolution

3840 x 2160

Bit Depth / Color Support

10-Bit (1.07 Billion Colors)

Brightness

2500 cd/m²

Viewing Angle (H x V)

178 x 178°

Screen Area

73.7 x 41.4" / 1872 x 1053 mm

Contrast Ratio

3000:1

Dynamic Contrast Ratio

100,000:1

Response Time

8 ms

Refresh Rate

120 Hz

Horizontal Frequency

30 to 135 kHz

Vertical Frequency

24 to 75 Hz

Dot Pitch

0.488 x 0.488 mm

Backlighting Technology

Direct LED

Connectivity

Input Ports

2 x HDMI 1.4 Audio, Video
2 x DisplayPort 1.2 Audio, Video

Output Ports

2 x HDMI 1.4 – Audio, Video
1 x 1/8" / 3.5 mm – Audio

USB Ports

1 x USB 2.0

Ethernet Ports

1

Digital Media Slot

None

Surface

Haze Level

0%

Electrical

Power Consumption

Maximum: 1800.0 W
Typical: 680.0 W
Standby: 1.0 W

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Environmental

Operating Temperature

-22 to 122°F / -30 to 50°C

Operating Humidity

10 to 80%

Certifications

CE, FCC, UL, as per Manufacturer

Physical

Material of Construction

5T Glass

Bezel Thickness

62 mm (Bottom)
62 mm (Right)
62 mm (Top)
62 mm (Left)

Duty Cycle

24 Hours / 7 Days

Dimensions

78.8 x 46.6 x 4.7" / 200.4 x 118.5 x 12.0 cm

Weight

359 lb / 163 kg
