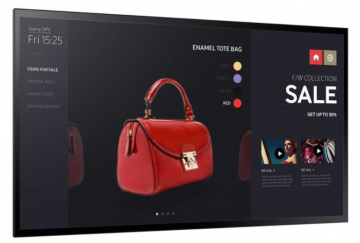

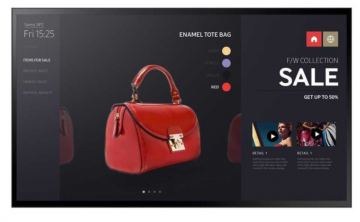

SAMSUNG PM43FBC 43IN LED MULTI TOUCH DISPLAY

PM43FBC
[Contact us for a price] Request a quote
For Special & Volume Pricing – Call +91 92050 81551

Need Help

Choosing a Product
+91 92050 81551 Live Chat Contact Us
Talk to our technical Expert
price match

Description

SAMSUNG PM43FBC 43IN LED MULTI TOUCH DISPLAY

High End Professional Display for AVSI & Digital Signage Projects - 24x7 Operation - 400/500 nits Brightness with Integrated Touch/ Capacitive Touch with 8GB Internal Storage and Multi Touch.

Features :
  • Capacitive touch technology that enables up to 10 different touch points simultaneously
  • All-in-one display solution with embedded MagicInfo Player S4 powered by Tizen™
  • IP5x certification that reflects it can withstand demanding usage environments
  • Capacitive touch technology makes up to 10 different touch points available simultaneously
  • All-in-one signage package includes integrated media player and content management tools
  • Powerful Tizen operating system ensures seamless operations and captivating graphic performance
  • Bright, non-glare design enhances readability regardless of surrounding lighting
  • IP5x certification signifies displays’ resistance to dust and dirt exposure
  • Durable, 24/7 performance ensures continuous interactivity and content sharing
  • Easy, flexible display control possible through a centralized infrared receiver (IR)

SPECIFICATIONS :

Display

Screen Size

43”

Panel Technology

60Hz E-LED BLU

Resolution

1920x1080 (Full HD)

Aspect Ratio

16:9

Pixel Pitch (mm)

0.49(H) x 0.49(V)

Active Display Area (mm)

940.89(H) x 529.25(V)

Brightness

350 nit

Contrast Ratio (Typical)

3000:1

Viewing Angle (H/V)

178º/178º

Response Time (G-to-G)

8ms

Display Colors

10bit Dithering - 1.07 Billion

Color Gamut

72%

Haze

44% (Panel), 15% (Glass)

Display

Dynamic C/R

Mega

H-Scanning Frequency

30 ~ 81kHZ

V-Scanning Frequency

48 ~ 75HZ

Maximum Pixel Frequency

148.5MHz

Sound

Speaker Type

Built in Speaker(10W + 10W)

Connectivity

Input

RGB: DVI-I(D-Sub Common), Display Port 1.2 (1)
Video: HDMI 2.0 (2)
HDCP: HDCP 2.2
Audio: Stereo Mini Jack, RGB/DVI/HDMI
USB: USB 2.0 x 2 (1 Used for touch)

Output

RGB: DP1.2 (Loop-out)
Video: N/A
Audio: Stereo mini Jack
USB: USB Type-B x 2 (Touch Sensor Data, PC 1 / SoC 1)
Power Out: N/A
External Control: RS232C(In/Out) thru Stereo Jack, RJ45
External Sensor: N/A
Tuner: N/A

Power

Type

Internal

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption
  • Max[W/h]: 154
  • Typical[W/h]: 117
  • BTU(Max): 525
  • Sleep mode: less than 0.5W
  • Off mode :Less than 0.5W

Mechanical Spec

Product Dimensions

983.9 X 582.3 X 62.8 mm

Packaging Dimensions

983.9 X 582.3 X 62.8 mm

Product Weight

15.9 lbs

Shipping Weight

19.8 lbs

VESA Mount (mm)

200 x 200 mm

Protection Glass

3.2T Semi-Tempered Touch Glass

Stand Type

Foot Stand (Optional)

Bezel Width

25.0 / 20.0 / 25.0

Environmental Conditions

Recommended Usage Hours

24/7

Operating Temperature

0℃~ 40℃

Operating Humidity

10%~80%

Features

Key Features

Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0, Cap-Touch

Special Features

H/W : Non Glare Touch Panel, Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), Center IR S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP(Only for NA), Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player

Internal Player
  • Processor: Cortex-A12 1.3GHz Quad Core CPU
  • On-Chip Cache Memory: L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
  • Clock Speed: 1.3GHz CPU Quad
  • Main Memory: Interface 2.5GB 3 channel 96bit DDR3-933 (1866MHz)
  • Graphics: 2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES
  • Storage (FDM): 8GB (3.75GB Occupied by O/S, 4.25GB Available)
  • Multimedia: Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
  • IO Ports: USB 2.0
  • Tizen 2.4 (VDLinux)

Certification

Safety

CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE

EMC

FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Accessories

Included

Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) Gender, Cover Jack, USB Cable

Optional
  • Stand: STN-L3240E
  • Mount: WMN4070SD, WMN4070SE
  • Specialty: CML400XJ

Media Player

SBB
