Description

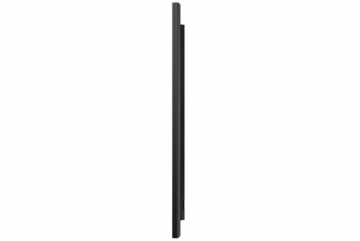

SAMSUNG QB75R 75IN 4K UHD RJ45 USB BT SIGNAGE DISPLAY
4K Mainstream Professional Display for AVSI & Digital Signage Projects with HDMI / DVI / RS232 / USB / RJ45 / Wi-Fi + Bluetooth / Built-in-Speakers /EDGE LED/ HDR+ Functionality/ Tizen 4.0 with Inbuilt Media Player & MagicInfo S6.
- Engage customers with lifelike images through ultra high-definition resolution
- Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
- Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades
- 75-Inch Display features 4K UHD picture quality with dynamic Crystal Color for crystal clear, lifelike color; 3-year
- Cisco WebEx room kit compatible for a powerful conferencing solution; built-in Wi-Fi and Bluetooth allows for control and content sharing via tablets and mobile phones
- Intelligent UHD upscaling ensures the highest picture quality for both standard and high definition content
- Slim, elegant design for easy-to-mount installation and clean cable management
- System-on-chip (SoC) technology and embedded media player provide an all-in-one digital signage solution
SPECIFICATIONS :
Display
|
Screen Size (Diagonal) |
74.5" |
|
Resolution |
3840 x 2160 |
|
Panel Type |
Unspecified LCD |
|
HDR Compatibility |
HDR10, HDR10+ |
|
Brightness |
350 cd/m² |
|
Viewing Angle (H x V) |
178 x 178° |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
4000:1 |
|
Response Time |
8 ms |
|
Backlighting Technology |
Edge LED |
Connectivity
|
Primary Connectivity Location |
Display |
|
Input Ports |
2 x HDMI 2.0 – Audio, Video (Side) |
|
Output Ports |
1 x 1/8" / 3.5 mm – Audio (Rear) |
|
USB Ports |
1 x USB 2.0 Type-A (Rear) |
|
Ethernet Ports |
1 (Side) |
|
Control |
RS-232C via 1/8" / 3.5 mm Input |
|
Wi-Fi |
Built-in |
|
Bluetooth |
Yes |
General
|
TV Tuner |
No |
|
Display Orientation |
Landscape, Portrait |
|
HDCP Support |
Yes, Version 2.2 |
Audio
|
Built-In Speakers |
Yes, 2 x 10 W |
|
Speaker Configuration |
2-Channel |
Hardware
|
Operating System |
Tizen 4 |
|
Processor |
1.7 GHz ARM Coretex A72 Quad-Core |
|
Storage |
8 GB |
|
RAM |
2.5 GB LPDDR4 1500 MHz |
Convenience
|
Supported Video File Types |
H.263, H.264/AVC, H.265/HEVC, MPEG2, MPEG4, VC-1, VP8, VP9 |
|
Supported Audio File Types |
AC3 |
|
Supported Photo File Types |
JPEG, PNG |
Electrical
|
Power Consumption |
Maximum: 231.0 W |
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
Environmental
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Operating Humidity |
10 to 80% |
|
Certifications |
ENERGY STAR, as per Manufacturer |
Physical
|
Wall Mounting |
400 x 400mm |
|
IP Rating |
IP5X |
|
Bezel Thickness |
11.5 mm (Right/Top/Left) |
|
Duty Cycle |
16 Hours / 7 Days |
|
Dimensions |
73.7 x 44.4 x 8.8" / 1871.0 x 1127.0 x 223.0 mm |
|
Weight |
84.44 lb / 38.3 kg |
Packaging Info
|
Package Weight |
105 lb |
|
Box Dimensions (LxWxH) |
44 x 33.5 x 9" |
