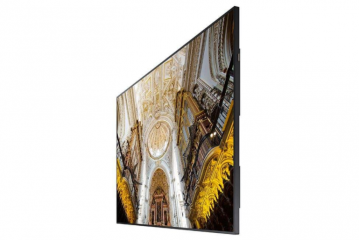

SAMSUNG QB98R 4K UHD RS232 USB COMMERCIAL DISPLAY

[Contact us for a price] Request a quote
QB98R

Description

SAMSUNG QB98R 4K UHD RS232 USB COMMERCIAL DISPLAY

4K Mainstream Professional Display for AVSI & Digital Signage Projects with HDMI /DVI / RS232 / USB / RJ45 / Wi-Fi+Bluetooth / Built-in-Speakers /EDGE LED/ HDR+ Functionality/ Tizen 4.0 with Inbuilt Media Player & MagicInfo S3 with 24x7 usage.

Features :
  • Engage customers with lifelike images through ultra high-definition resolution
  • Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
  • Engage audiences with eye-catching 700 nit brightness and ultra-high-defi nition resolution.
  • Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features.
  • Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades.
  • New symmetrical, slim design simplifi es installation and complements any environment.
  • Secure, PC-free operation through Knox and rigid three-layer protection.
  • Reliable, non-glare panels provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7.

SPECIFICATIONS :

Panel

Screen Size

98"

Type

Edge LED BLU

Resolution

UHD 3840 x 2160 (16:9)

Brightness (Typical)

350 nits

Contrast Ratio (Typical)

4000:1

Viewing Angle (H/V)

178/178

Response Time (G to G)

6ms

Display Colors

16.7M

Color Gamut

72%

Operation Hour

24/7

Anti-Glare Panel

Yes

Sound

Speaker Type

Built in Speaker (10W + 10W)

Connectivity

Input

RGB: DVI-D, Display Port 1.2 (1)
Video: HDMI 2.0 (2)
HDCP: HDCP2.2
Audio: Stereo mini Jack, DVI, HDMI
USB: USB 2.0 x 2

Output

RGB: HDMI 2.0 (Loop-out)
Audio: Stereo mini Jack

External Control

RS232C(in/out) thru stereo jack, RJ45

External Sensor

IR

Wi-Fi / Bluetooth

Yes / Yes

Tuner

N/A

Power

Type

Internal

Power Supply

AC 100 - 240 V (+/- 10 %), 50/60 Hz

Power Consumption

Max / Typical / Rating: 528 / 372 / 480 W
Sleep mode: 0.5 W

Environmental Conditions

Operating Temperature

0℃~ 40℃

Operating Humidity

10~80%

Features

Key

UHD Signage Display
Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Special

Hardware: Temperature Sensor, Pivot Display, Clock Battery (168 Hrs. Clock Keeping), Built-In Speaker (10W 2ch), Video Wall Daisy Chain (HDCP 2.2:4 EA, HDCP 1.4:7 EA), Wi-Fi / Bluetooth

Software: Auto Source Switching and Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug & Play (Initial Setting)

Internal Player (Embedded H/W)

Processor

Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory

L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB

Clock Speed

1.7GHz

Main Memory Interface

2.5GB
LPDDR4 1.5GHz 64bit

Graphics

Graphic resolution : 1920 x 1080
Output resolution : 3840 x 2160 (Scale up from graphic processing result.)

Storage (FDM)

8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia

Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
Audio Decoder: AC3 (DD), MPEG

IO Ports

USB 2.0

Operating System

Tizen 4.0 (VDLinux)

Mechanical Spec

Without Stand (W x H x D)

86.39" x 49.21" x 2.82" (w/o handle)
86.39" x 49.21" x 2.96" (w/ handle)

Package (WxHxD)

98.43" x 63.70" x 32.09"

Product Weight

169.98 lbs

Package Weight

329.37 lbs

VESA Mount (mm)

900 x 600

Bezel Width (mm)

15.2 (Top, Side) 15.2 (Bottom)

Certification

Safety

60950-1

EMC

Class A

Environment

N/A

Service

Standard Warranty

3yr Onsite (Parts/Labor/Backlight)

Accessories

Included

Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional

Mount: WMN9500SD
