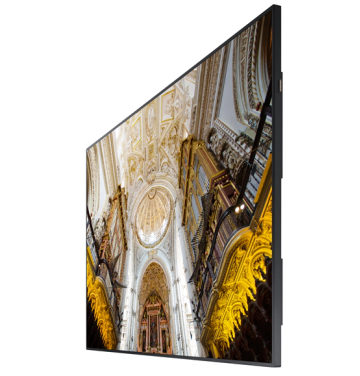

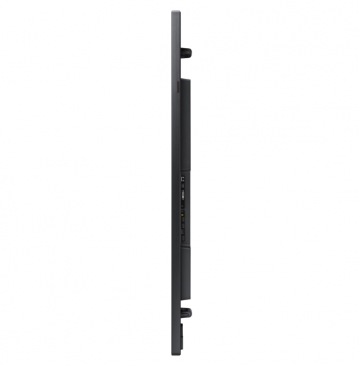

SAMSUNG QM98N 98IN 4K UHD HDMI USB LED SIGNAGE DISPLAY

Display

Screen Size

98"

Panel Technology

60Hz E-LED BLU

Resolution

3840 x 2160 (4K UHD)

Aspect Ratio

16:9

Pixel Pitch (mm)

0.187 x 0.562 (mm)

Active Display Area (mm)

2158.848(H) x 1214.352(V)

Brightness

500nit

Contrast Ratio (Typical)

4000:1

Viewing Angle (H/V)

178º/178º

Response Time

6ms (Typ)

Display Colors

16.7M (True Display) 1.07B (Ditherd 10bit)

Color Gamut

72%

Haze

25%

Display

Dynamic C/R

Mega

H-Scanning Frequency

30 ~ 81kHZ

V-Scanning Frequency

48 ~ 75HZ

Maximum Pixel Frequency

594MHz

Sound

Speaker Type

Built in Speaker (10W + 10W)

Connectivity

Input

RGB: DVI-D, Display Port 1.2 (1)
Video: HDMI 2.0 (2)
HDCP: HDCP2.2
Audio: Stereo mini Jack, DVI, HDMI
USB: USB 2.0 x 2

Output

RGB: HDMI 2.0 (Loop-out)
Audio: Stereo mini Jack

External Control

RS232C(in/out) thru stereo jack, RJ45

Sensor

IR

Power

Type

Internal

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

Max [W/h]: 528
Typical [W/h]: 372
Rating [W/h]: 480
Sleep mode: less than 0.5W
Off mode: N/A

Mechanical Specification

Without Stand (W x H x D)

2194.2 x 1249.8 x 71.6 (w/o handle)
2194.2 x 1249.8 x 75.3 (w/ handle)

Package (WxHxD)

2500 x 1618 x 815 mm

Product Weight

77.1 kg

Package Weight

149.4 kg

VESA Mount (mm)

900x600

Stand Type

Foot Stand (Optional)

Bezel Width

15.2 / 15.2 / 15.2

Environmental Conditions

Operating Temperature

0℃~ 40℃

Operating Humidity

10~80%

Recommended Usage Hours

24/7

Features

Special Features

UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Special

Hardware: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT
Software: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player

• Processor: Cortex A72 1.7GHz Quad-Core CPU
• On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
• Clock Speed: 1.7GHz
• Main Memory Interface: 2.5GB LPDDR4 1.5GHz 64bit
• Graphics: Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
• Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
• Multimedia: *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
• IO Ports: USB 2.0
• Tizen 4.0 (VDLinux)

Certification

Safety

60950-1

EMC

Class A

Accessories

Included

Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional

Mount: WMN9500SD
