Description

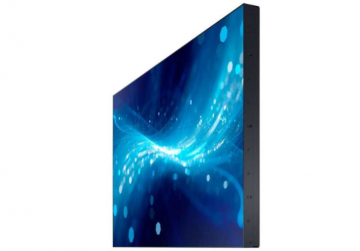

SAMSUNG UH46F-5 46IN VIDEO WALL DISPLAY
Super Thin Bezel Video Wall Panel with 5.5mm bezel-to-bezel - 700 nits brightness / Ultra Compact Design.
- Captivating UHD video wall facilitated by daisy-chaining through leveraging of Signage Player Box (Tizen 2.4)
- Slim depth (47.6mm), narrow bezel (B-to-B 5.5mm) and light weight (13.5kg) for simplified installation and disassembly
- Brightness uniformity and color accuracy with Samsung Color Expert Technology and factory calibration
- Highly reliable 24/7 operation, with no risk of panel darkening thanks to its distinguished panel quality
SPECIFICATIONS :
Display
Screen Size (Diagonal) |
45.9" |
Resolution |
1920 x 1080 |
Panel Type |
Unspecified LCD |
Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
Brightness |
700 cd/m² (Maximum) |
Viewing Angle (H x V) |
178 x 178° |
Screen Area |
40.08 x 22.55" / 1018.08 x 572.67 mm |
Aspect Ratio |
16:9 |
Contrast Ratio |
4000:1 |
Response Time |
8 ms (GtG) |
Horizontal Frequency |
30 to 81 kHz |
Vertical Frequency |
48 to 75 Hz |
Dot Pitch |
0.53025 x 0.53025 mm |
Backlighting Technology |
Direct LED |
Connectivity
Primary Connectivity Location |
Display |
Input Ports |
2 x HDMI – Audio, Video (Rear) |
Output Ports |
1 x DisplayPort 1.2 – Video (Rear) |
USB Ports |
1 x USB (Version Unspecified) Type-A (Rear) |
Ethernet Ports |
1 (Rear) |
General
TV Tuner |
No |
HDCP Support |
Yes, Version 2.2 |
Maximum Multiple Display Configuration |
10 x 10 |
Surface
Haze Level |
11% |
Electrical
Power Consumption |
Maximum: 132.0 W |
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
Power Adapter Type |
Internal |
Environmental
Operating Temperature |
32 to 104°F / 0 to 40°C |
Operating Humidity |
10 to 80% |
Certifications |
BSMI, C-Tick, CE, CSA, ENERGY STAR, FCC, Kcc, TUV, UL, VCCI, as per Manufacturer |
Physical
Wall Mounting |
400 x 400mm |
Bezel Thickness |
3.4 mm (Top) |
Duty Cycle |
24 Hours / 7 Days |
Dimensions |
40.3 x 22.8 x 1.9" / 1023.8 x 578.4 x 47.9 mm |
Weight |
29.10 lb / 13.2 kg |
Packaging Info
Package Weight |
42.8 lb |
Box Dimensions (LxWxH) |
46 x 29 x 11" |
