SAMSUNG UH55F-E 55IN ULTRA NARROW BAZEL VIDEOWALL DISPLAY

[Contact us for a price] Request a quote
UH55F-E

Description

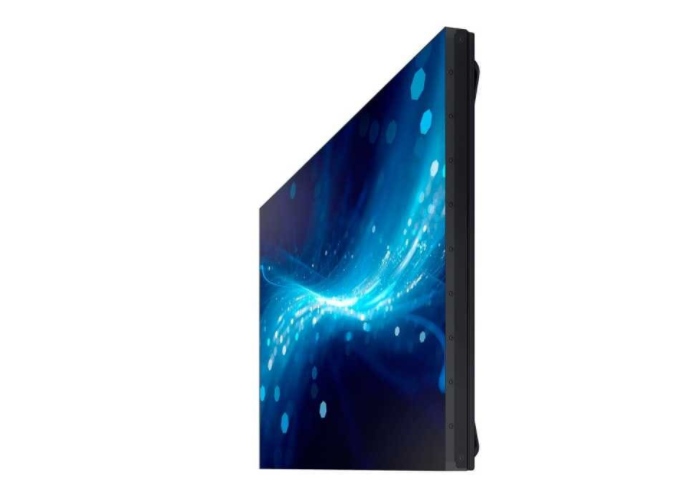

SAMSUNG UH55F-E 55IN ULTRA NARROW BAZEL VIDEOWALL DISPLAY

Super Ultra Thin Bezel Video Wall panel with 1.7mm bezel-to-bezel - 700 nits brightness/ 25% HAZE Non Glare Panel.

Features :
  • Ultra-narrow bezels at 1.7mm bezel-to-bezel allow you to create virtually seamless videowalls
  • Non-glare, high brightness panel offers improved visibility in bright ambient light
  • Reliable 24/7 continuous run-time to meet around the clock business operating requirements
  • Factory calibrated for uniform brightness and color across multiple displays

SPECIFICATIONS :

Display

Screen Size

55"

Panel Technology

D-LED DID

Resolution

1920x1080

Aspect Ratio

16:9

Brightness

700nit

Contrast Ratio (Typical)

4000:1

Viewing Angle (H/V)

178º/178º

Response Time

8ms

Connectivity

Input

RGB: DVI-D, Display Port 1.2
VIDEO: HDMI (2)
AUDIO: Stereo Mini Jack
USB: Only F/W upgrade

Output

AUDIO: Stereo Mini Jack

External Control

RS232C(in/out), RJ45

Sensor

Detachable Type(IR)

Power

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption (Standby)

less than 0.5W

Environmental Conditions

Operating Temperature

0℃~ 40℃

Operating Humidity

10~80%

Features

Special

ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 11%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Videowall(15x15(OSD)), Videowall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)

Media Player Type

Cortex-A9 1GHz Quad Core CPU, 1.5GB DDR3, 8GB FDM, USB 2.0, Samsung Proprietary OS (VDLinux)

Plug & Play

Yes

24/7 Operation

Yes

Videowall/Thin Bezel

Yes

Dimensions

Without Stand (W x H x D)

40.3" x 22.7" x 1.8"

Packaging (W x H x D)

46.1" x 28.8" x 10.9"

Bezel Width

0.13" (U/L), 0.08" (R/B)

Weight

Product Weight

29.1 lbs.

Package Weight

42.3 lbs.

Service

Standard Warranty

3yr Onsite (Parts/Labor/Backlight)

Included in Box

Included in Box

Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries

Optional Wall Mounting Kit

WMN-46VD

Optional Stand

SBB-DA / SBB-DI / SBB-SS08E

Optional Media Player

SBB-DA / SBB-SS08E

Green Management

ROHS Compliant

Yes

Emission Standard

EMC

Packaging Recyclability

Packing Materials Recyclable

Mechanical Specs

VESA Mount

400x400 (mm)
