Description
The TSC DA310 is a compact and reliable direct thermal desktop label printer designed for applications like shipping labels, retail POS, healthcare, pharmacy, and small office labeling. Offering 300 dpi print resolution, the DA310 delivers crisp, clear text, barcodes, and graphics ideal for labels requiring precision.
With its user-friendly clamshell design, the DA310 ensures effortless media loading, while the robust double-walled plastic enclosure guarantees durability in demanding environments. Equipped with USB 2.0 connectivity and optional Bluetooth or Wi-Fi, this printer is both affordable and versatile, making it an excellent choice for businesses looking for a balance of performance and cost-effectiveness.
Product Features
-
High-Resolution Printing – 300 dpi output for sharp barcodes, text, and graphics
-
Compact & Lightweight – Small footprint (only 1.5 kg) ideal for space-limited counters and offices
-
Fast Label Production – Prints up to 4"/second (102 mm/s) at 300 dpi
-
Durable Build – Double-walled clamshell design ensures long-lasting reliability
-

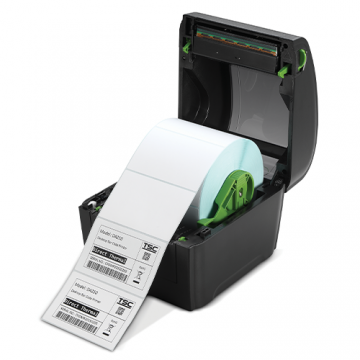

Easy Media Loading – Spring-loaded roll holder and wide media bay for quick changes
-
Versatile Applications – Ideal for shipping labels, pharmacy, specimen labeling, retail, and ticketing
-
Flexible Media Support – Handles continuous, black mark, fan-fold, and notched media
-
Barcode & Font Support – Prints 1D, 2D barcodes including QR, PDF417, DataMatrix, and supports scalable fonts
-
Energy Efficient – External 60W power supply ensures consistent high-quality output
-
Warranty Assurance – 2-year printer warranty, with 12 months/25km coverage for the printhead
Product Specifications
| Model | TSC DA310 |
| Print Technology | Direct Thermal |
| Resolution | 12 dots/mm (300 dpi) |
| Max. Print Speed | 102 mm/s (4"/second) |
| Max. Print Width | 105.7 mm (4.16") |
| Max. Print Length | 1,016 mm (40") |
| Processor | 32-bit RISC CPU |
| Memory | 8 MB Flash, 16 MB DRAM |
| Connectivity | USB 2.0 (High-Speed), optional Bluetooth / Wi-Fi |
| Media Types | Continuous, black mark, fan-fold, notched |
| Media Width | 19 mm – 114 mm (0.7" – 4.5") |
| Media Thickness | 0.055 – 0.19 mm (2.16 – 7.48 mil) |
| Label Roll Capacity | 127 mm (5") O.D. |
| Sensors | Gap sensor, black mark sensor, head-open sensor |
| Barcode Support | 1D: Code 39, 128, UPC, EAN, etc. / 2D: QR, PDF-417, DataMatrix, Aztec |
| Fonts | 8 bitmap fonts, scalable TrueType support |
| Dimensions (W × H × D) | 172 × 165 × 195 mm |
| Weight | 1.5 kg (3.31 lbs) |
| Power Supply | External universal, Input: 100–240V AC, Output: 24V DC |
| Operating Environment | 5°C – 40°C, 25%–85% RH (non-condensing) |
| Compliance | CE, FCC Class A, BIS, Energy Star, RoHS, REACH, WEEE |
| Warranty | 1 year |
