Description

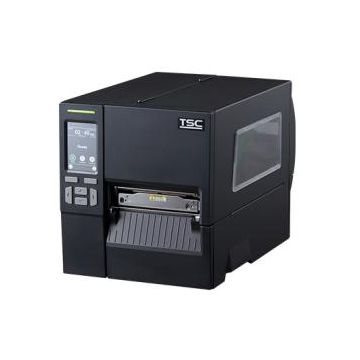

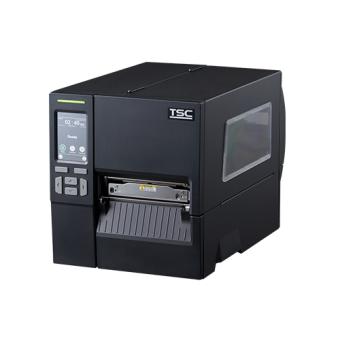

The TSC MB241T Industrial Label Printer is a compact yet powerful 4-inch printer designed for heavy-duty and high-volume applications. Featuring a rugged all-metal construction and a bifold media door that reduces operational space by 24%, it’s ideal for environments where durability and efficiency are essential. Equipped with a 2.3" colour touch LCD, 256MB SDRAM, and 256MB Flash memory, the MB241T ensures fast, precise, and reliable label printing at speeds of up to 12 inches per second. Supporting both Thermal Transfer and Direct Thermal printing, this printer handles various media types, including thicker materials and hangtags.
The MB241T also offers advanced connectivity options — including USB, RS-232, Ethernet, and USB Host — along with optional Wi-Fi, Bluetooth, and RFID support, making it highly adaptable for industrial, logistics, and manufacturing applications. With auto-switching emulation (TSPL-EZD) and remote fleet management via SOTI Connect and TSC Console, it seamlessly integrates into existing workflows.
Product Features
- Compact Industrial Design: Space-saving bifold door design reduces footprint by 24%.
- Rugged Durability: All-metal print mechanism ensures stability and long-lasting performance.
- High-Speed Printing: Prints up to 304.8mm (12") per second with a maximum width of 107mm (4.21").
- Versatile Media Handling: Supports continuous, die-cut, fan-fold, and black mark labels with optional linerless, cutter, and peel-off kits.
- Flexible Connectivity: Standard USB, RS-232, Ethernet, and USB Host; optional Wi-Fi, Bluetooth, and RFID functionality.
- Intelligent Management: Compatible with SOTI Connect, TSC Console, and Embedded Webpage for remote configuration and monitoring.
- Eco-Conscious Design: Built from recyclable materials and supports linerless printing for waste reduction.
- User-Friendly Interface: 2.3" colour touch LCD with easy navigation and quick access to templates via TSC Standalone Creator.
Product Specifications
Specification | Details |
Printing Method | Thermal Transfer & Direct Thermal |
Resolution | 203 DPI (8 dots/mm) |
Max. Print Speed | 304.8mm (12") per second |
Max. Print Width | 107mm (4.21") |
Max. Print Length | 25,400mm (1000") |
Memory | 256MB Flash, 256MB SDRAM |
Processor | 32-bit RISC CPU |
Interface | RS-232, USB 2.0, Ethernet 10/100 Mbps, USB Host |
Optional Connectivity | Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, MFi Bluetooth, RFID |
Display | 2.3" Colour Touch LCD |
Sensors | Adjustable gap transmissive, black mark, ribbon end, head open |
Media Width | 20mm – 120mm (0.8" – 4.7") |
Media Thickness | 0.06mm – 0.28mm (2.36mil – 11mil) |
Label Roll Capacity | 203.2mm (8") O.D. |
Ribbon Length | 450m |
Dimensions (W x H x D) | 248mm x 274mm x 436mm |
Weight | 9.1kg |
Operating Temperature | 0°C to 40°C |
Compliance | CE, FCC, RCM, ENERGY STAR®, RoHS, WEEE |
Warranty | Printer: 2 years; Printhead: 12 months or 25km |
