Description

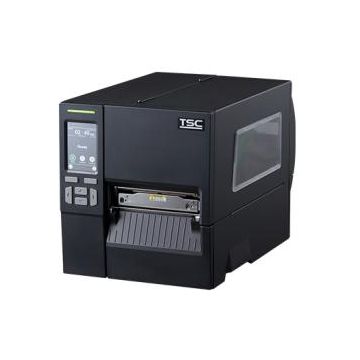

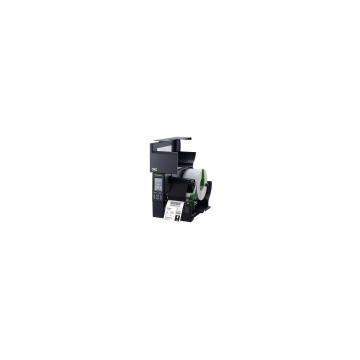

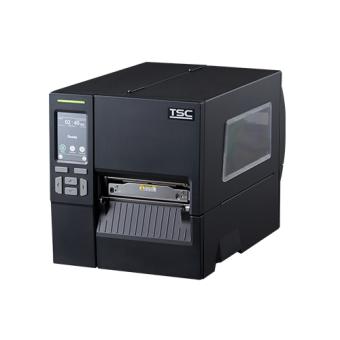

The TSC MB341T Industrial Label Printer combines rugged durability, high-resolution printing, and smart connectivity in a compact design perfect for Indian industries such as manufacturing, logistics, retail, and healthcare. With 300 DPI resolution, the MB341T delivers sharp, precise text, barcodes, and graphics, ensuring professional-quality labels for critical applications. Its die-cast metal frame and bifold media door reduce space requirements by 24%, offering exceptional durability and convenience in limited workspaces. The MB341T supports both Thermal Transfer and Direct Thermal printing, allowing users to print on various materials from standard labels to thicker tags and linerless media.
Equipped with a 3.5-inch colour touch LCD, the printer provides intuitive navigation and control. Connectivity is seamless with USB, RS-232, and Ethernet interfaces, and optional Wi-Fi, Bluetooth, and RFID encoding enhance operational flexibility. Backed by TSC’s smart software ecosystem — TSC Console, SOTI Connect, and Embedded Webpage — it ensures remote monitoring, easy deployment, and consistent fleet management.
Product Features
- High-Resolution Output: 300 DPI printing delivers crisp barcodes, logos, and fine text ideal for product and compliance labels.
- Compact Industrial Design: Bifold door reduces footprint by 24% — perfect for space-limited industrial environments.
- Durable Metal Construction: All-metal frame ensures long-term reliability under heavy workloads.
- Versatile Print Modes: Supports both Thermal Transfer and Direct Thermal printing for varied media types.
- Flexible Connectivity: Standard USB, Ethernet, and RS-232; optional Wi-Fi, Bluetooth 5.0, and RFID encoding.
- Fast Printing Speed: Prints up to 9 inches per second for high-efficiency label production.
- Smart Fleet Management: Integrates with SOTI Connect and TSC Console for remote configuration and updates.
- Advanced RFID Capabilities: Supports RAIN UHF Passive tags and on-metal tag encoding with auto calibration.
- User-Friendly Control: 3.5-inch touch LCD with intuitive navigation for easy operation.
Product Specifications
Specification | Details |
Print Method | Thermal Transfer & Direct Thermal |
Resolution | 300 DPI (12 dots/mm) |
Max Print Speed | 228.6 mm/sec (9 ips) |
Max Print Width | 105.7 mm (4.16") |
Max Print Length | 11,430 mm (450") |
Processor | 32-bit RISC CPU |
Memory | 256 MB SDRAM / 256 MB Flash |
Interfaces | USB 2.0, RS-232, Ethernet (10/100 Mbps), USB Host; Optional Wi-Fi, Bluetooth, RFID |
Display | 3.5" Colour Touch LCD |
Sensors | Gap, Black Mark, Ribbon End, Head Open |
Media Width | 20 mm – 120 mm (0.8" – 4.7") |
Media Thickness | 0.06 mm – 0.28 mm |
Media Core | 25.4 mm – 76.2 mm (1" – 3") |
Label Roll Capacity | 203.2 mm (8") OD |
Ribbon Length | 450 m (1" core) |
Dimensions (W x H x D) | 248 x 274 x 436 mm |
Weight | 9.1 kg |
Power Supply | AC 100–240V, 50–60Hz (Internal Universal PSU) |
RFID Capability | RAIN UHF Passive (GS1 EPC Gen2 v2 / ISO 18000-63); On-metal tag support |
Environment | Operating: 0°C–40°C; Storage: –40°C–60°C |
Certifications | BIS, CE, FCC, RCM, ENERGY STAR®, RoHS, WEEE |
Warranty | Printer: 2 Years; Printhead: 12 Months or 25 km; Platen: 12 Months or 50 km |
