Description

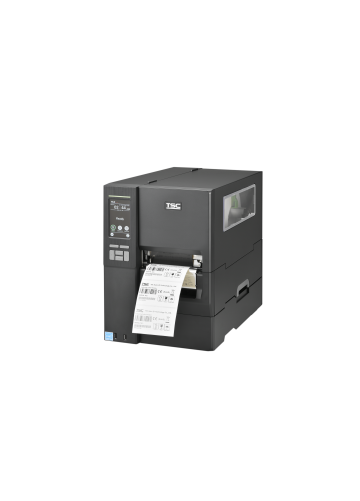

The TSC MH241P is a high-performance 203DPI industrial label printer built to handle demanding, high-volume printing environments. Featuring a robust die-cast metal design, an intuitive 4.3” colour touch LCD, and a powerful 32-bit RISC processor, this printer ensures fast, consistent, and reliable label production. With a print speed of up to 356mm per second (14 inches/sec) and support for both Thermal Transfer and Direct Thermal printing, the MH241P delivers superior efficiency across manufacturing, logistics, healthcare, and retail operations.
Designed with flexibility in mind, it includes USB, RS-232, and Ethernet interfaces, dual USB host ports for peripherals, and a full 8” internal rewinder for efficient media management. Expandable memory, advanced sensors, and compatibility with multiple printer languages (EPL, ZPL, ZPL II, DPL) make the TSC MH241P a durable, future-ready solution for businesses seeking high-speed, precise labelling performance.
Product Features
- High-speed printing up to 356mm/sec (14ips) for rapid, industrial-grade performance.
- 203DPI print resolution delivers sharp, professional-quality text and barcodes.
- Supports both Thermal Transfer & Direct Thermal printing methods.
- 4.3” colour LCD touchscreen with an intuitive, multilingual interface for effortless operation.
- Durable die-cast metal frame and bi-fold cover for long-lasting industrial reliability.
- Versatile connectivity with USB, RS-232, and Ethernet interfaces.
- Dual USB host ports for connecting scanners or keyboards.
- Internal full-roll rewinder (8” O.D.) for high-volume label management.
- Advanced sensor system including gap, black mark, ribbon encoder, and media near-end sensors.
- Supports 1D & 2D barcodes, including QR, DataMatrix, PDF-417, and more.
- Expandable storage via microSD card (up to 32GB).
- Compatible with TSPL-EZD printer language, supporting EPL, ZPL, and DPL emulations.
- Energy-efficient and RoHS/WEEE compliant design.
Product Specifications
Specification | Details |
Resolution | 203 DPI (8 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max Print Speed | 356 mm/sec (14 ips) |
Max Print Width | 104 mm (4.09”) |
Max Print Length | 25,400 mm (1000”) |
Processor | 32-bit RISC CPU |
Memory | 256 MB SDRAM, 512 MB Flash, microSD expandable up to 32 GB |
Interface | RS-232, USB 2.0, Ethernet (10/100 Mbps), USB Host (x2) |
Optional Connectivity | Bluetooth 5.0, Wi-Fi 802.11 a/b/g/n/ac |
Display | 4.3” Colour LCD Touchscreen (480x272 pixels) |
Media Width | 20 – 114 mm (0.79” – 4.5”) |
Media Roll Capacity | 203.2 mm (8”) O.D. |
Ribbon Length | 600 m, 1” core |
Construction | Die-cast mechanism with metal cover |
Sensors | Gap, Black Mark, Ribbon End, Media Near End, Head Open |
Weight | 18.93 kg |
Dimensions (W x H x D) | 276 x 412 x 502 mm |
Power Supply | AC 100–240V, 50–60Hz |
Printer Language | TSPL-EZ, ZPL, EPL, DPL |
Warranty | Printer – 2 Years; Printhead – 12 Months or 25 km |
