Description

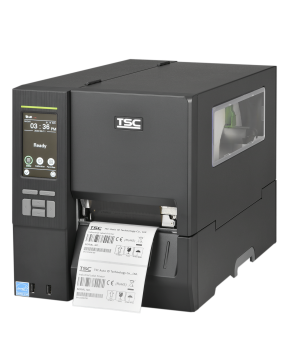

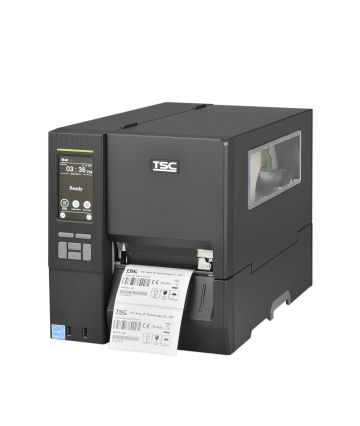

The TSC MH241T is a high-performance industrial barcode label printer designed for demanding printing environments in India. With a robust die-cast metal design, advanced 203DPI resolution, and blazing-fast print speeds up to 14 inches per second, this printer delivers consistent, high-quality labels for manufacturing, logistics, warehousing, and retail operations.
Its 4.3” colour touchscreen LCD and intuitive interface make setup and operation effortless, while flexible connectivity options including USB, RS-232, and Ethernet ensure seamless integration with enterprise systems. The MH241T supports both Thermal Transfer and Direct Thermal printing, offering durability, precision, and efficiency for large-scale label printing needs.
Product Features
- High-speed printing up to 356 mm/sec (14 ips) for maximum productivity.
- Dual print technology – supports both Thermal Transfer and Direct Thermal modes.
- Durable industrial design with a die-cast metal frame and bi-fold cover.
- 4.3” colour touchscreen LCD with intuitive menu navigation for easy operation.
- Versatile connectivity – USB 2.0, RS-232, Ethernet, and dual USB Host ports.
- Expandable memory with 512MB Flash, 256MB SDRAM, and microSD slot (up to 32GB).
- Extensive media compatibility including continuous, die-cut, tag, and black mark labels.
- Advanced sensor system with adjustable gap, black mark, and ribbon sensors.
- Supports multiple printer languages – TSPL-EZD (EPL, ZPL, ZPL II, DPL compatible).
- Energy-efficient and compliant with RoHS, WEEE, and ENERGY STAR® standards.
Product Specifications
Specification | Details |
Print Resolution | 203 DPI (8 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max Print Speed | 356 mm/sec (14 ips) |
Max Print Width | 104 mm (4.09”) |
Max Print Length | 25,400 mm (1000”) |
Memory | 512MB Flash, 256MB SDRAM, expandable via microSD (up to 32GB) |
Processor | 32-bit RISC CPU |
Display | 4.3” Colour Touch LCD |
Interfaces | USB 2.0, RS-232, Ethernet, Dual USB Host |
Optional Interfaces | GPIO, Parallel, Wi-Fi, Bluetooth |
Media Type | Continuous, Die-cut, Tag, Black Mark, Fan-fold |
Media Width | 20–114 mm (0.79"–4.5") |
Ribbon Length | 600 m (max. Ø 90 mm, 1” core) |
Enclosure | Die-cast metal with bi-fold cover |
Dimensions (W x H x D) | 276 x 326 x 502 mm |
Weight | 15.6 kg |
Operating Environment | 0–40°C, 25–85% RH (non-condensing) |
Power Supply | AC 100–240V, 50–60Hz |
Printer Languages | TSPL-EZD (EPL, ZPL, ZPL II, DPL compatible) |
Warranty | 2 Years (Printer), 1 Year or 25 km (Printhead) |
