Description

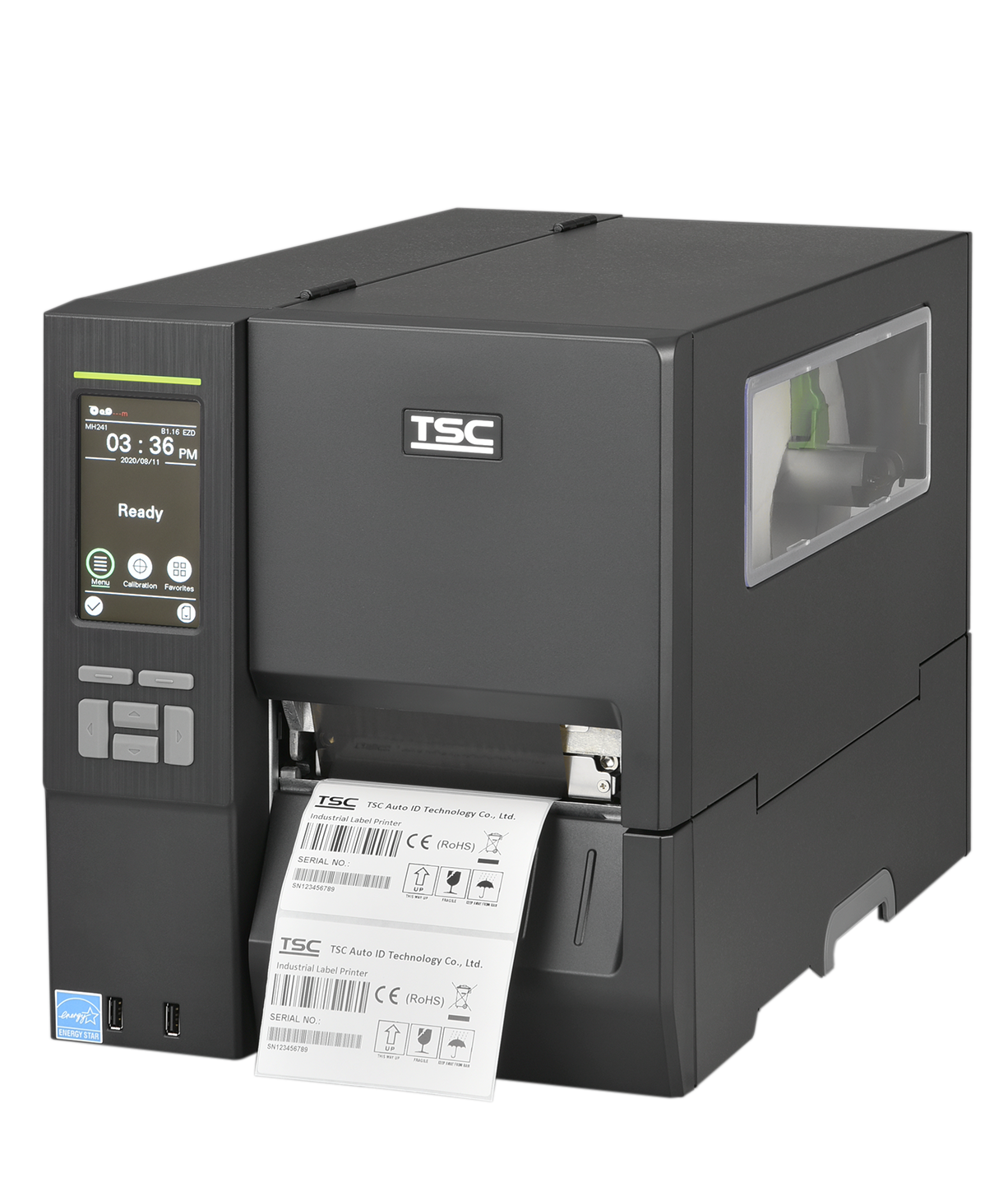

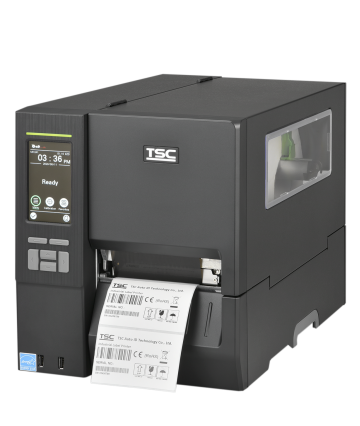

The TSC MH241T is a powerful, advanced 4-inch industrial label printer designed for high-speed, high-volume operations. With a blistering 14 ips print speed and 203 dpi resolution, it delivers exceptional performance for manufacturing, logistics, warehousing, and product labelling applications.Built with a durable die-cast print mechanism and a bi-fold metal cover, the MH241T offers rock-solid reliability while saving operational space. Its sharp print output, fast processing, and extended media compatibility make it ideal for demanding environments.The MH241T features an intuitive 4.3” colour touchscreen, auto-switching emulation (TSPL-EZ, ZPL, EPL, DPL), and supports remote fleet management through TSC Console, SOTI Connect, and an embedded web interface—ensuring consistent performance across large deployments. With eco-friendly construction and enhanced printhead monitoring via TSC Sense Care, it provides long-term value with minimal downtime.
Product Features
- High-Speed 14 ips Printing for rapid industrial label output.
- Durable Die-Cast Design built for round-the-clock performance.
- Space-Saving Bi-Fold Cover allows operation in tighter workspaces.
- Large 4.3” Touchscreen for easy navigation and setup.
- Advanced Printhead Control ensures stable, high-quality printing.
- TSC Sense Care monitors printhead health, mileage, and ribbon usage.
- Auto-Switching Emulation simplifies integration and printer replacement.
- Dual USB Host Ports for scanners, keyboards, and peripherals.
Product Specifications
Model | TSC MH241T |
Resolution | 203 dpi (8 dots/mm) |
Printing Method | D |
Max. Print Speed | 356 mm/s (14 ips) |
Max. Print Width | 104 mm (4.09”) |
Max. Print Length | 25,400 mm (1000”) |
Enclosure | Die-cast mechanism & base, metal bi-fold cover |
Dimensions (W × H × D) | 276 × 326 × 502 mm |
Weight | 15.7 kg |
Memory | 512 MB Flash, 256 MB SDRAM + microSD (up to 32 GB) |
Interfaces (Standard) | RS-232, USB 2.0 (High-Speed), Ethernet 10/100, Dual USB Host |
Display | 4.3” Colour Touch Display (480×272) |
Sensors | Gap, Black Mark (top/bottom), Ribbon End, Ribbon Encoder, Head Open, Media Near End |
Printer Languages | TSPL-EZ, EPL, ZPL, ZPL II, DPL |
Features
Display Type:
- LCD
Interface:
- Ethernet
- Serial
- USB
Max Print Width:
104mm
Print Method :
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
203
Print Speed :
- 356mm/sec
Print Type:
- Monochome
Printer Type :
- Industrial
Warranty :
2Years
