Description

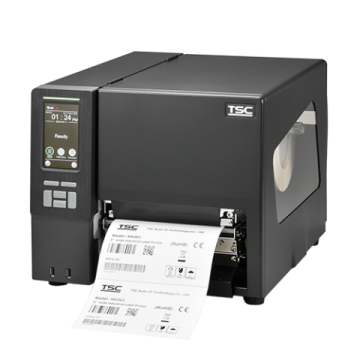

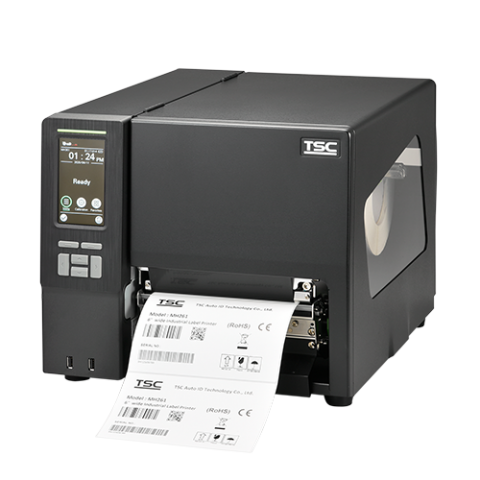

The TSC MH261T Industrial Barcode Label Printer is a powerful and durable printing solution designed for heavy-duty labelling needs in manufacturing, logistics, and warehousing. Featuring 203 DPI resolution, 12 IPS high-speed printing, and a 6.61-inch wide print width, it’s built for large-format, high-volume printing with consistent accuracy. Its 4.3-inch colour touch LCD and user-friendly interface make operation easy, while TSC’s advanced print mechanism ensures precise label output even in the most demanding conditions. With multiple connectivity options including USB, RS-232, Ethernet, Parallel, and optional Wi-Fi with Bluetooth, the MH261T integrates seamlessly into industrial networks.
Ideal for shipping labels, packaging, pallet labelling, and inventory management, this printer offers the perfect blend of speed, reliability, and flexibility to enhance operational productivity.
Product Features
- High-speed 12 IPS printing for maximum efficiency in high-volume operations.
- Wide 6.6-inch print width for large-format and industrial labels.
- 203 DPI resolution ensures crisp, clear barcodes and graphics.
- 4.3-inch colour touch LCD for intuitive operation and status monitoring.
- Durable die-cast print mechanism for reliable, long-term industrial use.
- Comprehensive connectivity: USB, RS-232, Ethernet, Parallel, USB Host, optional Wi-Fi & Bluetooth.
- Expandable memory with 256 MB DRAM, 512 MB Flash, and microSD up to 32 GB.
- Flexible media support for continuous, die-cut, and fan-fold labels.
- Energy Star certified and RoHS compliant for eco-friendly performance.
- Compatible with multiple printer languages (EPL, ZPL, ZPL II, DPL) for easy system integration.
Product Specifications
Specification | Details |
Model | TSC MH261T |
Print Method | Thermal Transfer & Direct Thermal |
Print Resolution | 203 DPI (8 dots/mm) |
Max Print Speed | 305 mm/s (12 ips) |
Max Print Width | 168 mm (6.61”) |
Max Print Length | 14,732 mm (580”) |
Processor | 32-bit RISC CPU |
Memory | 256 MB DRAM, 512 MB Flash, microSD expandable up to 32 GB |
Display | 4.3” Colour Touch LCD (480 x 272 pixels) |
Interfaces | USB 2.0, RS-232, Ethernet, Parallel, USB Host x2, optional Wi-Fi & Bluetooth |
Media Type | Continuous, Die-cut, Black Mark, Fan-fold, Notch |
Media Width | 50.8 – 172.7 mm (2" – 6.8") |
Media Thickness | 0.06 – 0.268 mm (2.36 – 11.02 mil) |
Max Roll Capacity | 208.3 mm (8.2") O.D. |
Ribbon Capacity | 450 m length, 81 mm O.D., 1” core |
Enclosure | Die-cast metal with clear media window |
Dimensions (W x H x D) | 357 x 313 x 514 mm |
Weight | 17.8 kg |
Sensors | Gap, Black Mark, Head Open, Ribbon End, Ribbon Encoder |
Operating Temperature | 0°C – 40°C |
Power Supply | Auto-sensing 100–240V AC, 50–60Hz |
Certifications | FCC, CE, RCM, UL, BIS, TÜV, Energy Star |
Warranty | Printer: 2 Years; Print Head: 12 Months or 25 km; Platen: 12 Months or 50 km |
