Description

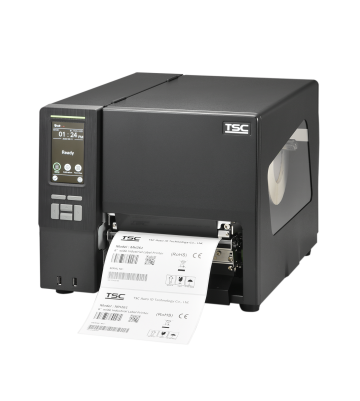

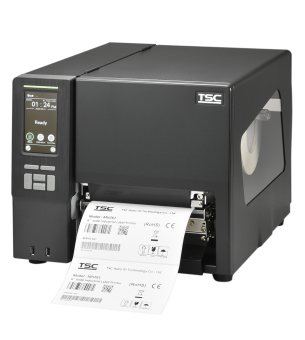

The TSC MH361T Industrial Label Printer is built for high-performance, precision printing in demanding industrial environments. With a 300 DPI print resolution, 10 ips print speed, and robust die-cast construction, it ensures consistent, durable label production for manufacturing, logistics, and retail operations. Equipped with a 4.3” colour touchscreen, multiple connectivity options (USB, Ethernet, Serial, Parallel, Wi-Fi & Bluetooth), and TSC’s advanced printer management tools, the MH361T combines efficiency with reliability. Whether printing shipping labels, compliance tags, or product identification labels, it delivers outstanding quality and flexibility for Indian enterprises.
Product Features
- High-resolution 300 DPI printing for crisp barcodes and detailed graphics.
- Supports both Thermal Transfer and Direct Thermal printing methods for versatile applications.
- Fast print speed of up to 10 inches per second to handle large batch printing efficiently.
- Large 4.3” colour LCD touchscreen for intuitive navigation and operation.
- Comprehensive connectivity options: USB, RS-232, Ethernet, Parallel, Wi-Fi, and Bluetooth.
- Expandable memory with microSD card slot (up to 32 GB) for enhanced storage.
- Durable die-cast metal print mechanism ensures long-lasting industrial performance.
- Supports TSC Console and SOTI Connect for enterprise-level printer management.
- Flexible media handling with 8” OD label roll capacity and multiple sensor types.
- Optional heavy-duty cutter for high-volume label production environments.
Product Specifications
Specification | Details |
Print Resolution | 300 DPI (12 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max. Print Speed | 10 ips (254 mm/s) |
Max. Print Width | 168 mm (6.61”) |
Max. Print Length | 6,604 mm (260”) |
Processor | 32-bit RISC CPU |
Memory | 512 MB Flash / 256 MB SDRAM |
Expandable Memory | microSD card slot (up to 32 GB) |
Display | 4.3” Colour Touch LCD with buttons |
Interface | USB 2.0, USB Host, RS-232, Ethernet, Parallel, GPIO |
Wireless Connectivity | Wi-Fi with Bluetooth |
Media Width | 50.8 – 178 mm (2” – 7”) |
Media Type | Continuous, die-cut, fan-fold, black mark (bottom side), notch |
Label Roll Capacity | 203.2 mm (8”) OD |
Ribbon Length | 450 m |
Ribbon Width | 50.8 – 178 mm (2” – 7”) |
Media Core Diameter | 38.1 mm / 76.2 mm (1.5” / 3”) |
Minimum Label Length | 10 mm (0.39”) |
Construction | Die-cast print mechanism with clear media view window |
Printer Languages | TSPL-EZD (EPL, ZPL, ZPL II, DPL compatible) |
Software Compatibility | TSC Console, SOTI Connect (license required) |
Warranty | Printer: 2 years; Printhead: 12 months or 25 km (whichever comes first) |
Optional Accessories | Heavy-duty cutter |
