Description

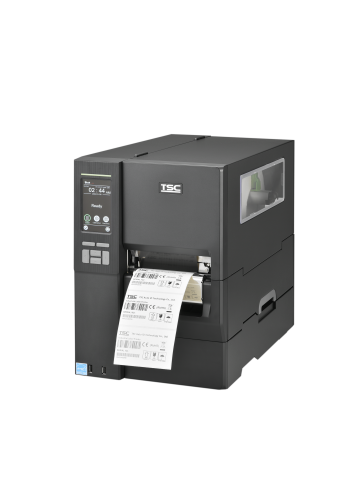

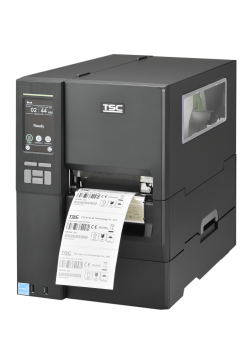

The TSC MH641P Industrial Label Printer delivers unmatched printing precision and durability for demanding industrial environments. Featuring a 600 DPI high-resolution print head, it ensures ultra-sharp barcodes, text, and graphics ideal for electronics, pharmaceuticals, and product labelling. Designed with a robust metal frame and a 4.3” colour touch LCD, this printer offers easy operation and superior visibility.
Its dual printing technology Direct Thermal and Thermal Transfer—provides versatility for diverse label applications. The MH641P is equipped with USB, RS-232, and Ethernet interfaces, plus USB Host connectivity for keyboards or scanners. With advanced sensors, real-time clock, and internal 8” full rewinder, it’s built for high-volume, continuous performance in warehouses, logistics, and manufacturing setups.
Product Features
- High-resolution 600 DPI printing for fine text, detailed graphics, and precise barcode labelling.
- Dual print technology supports both Direct Thermal and Thermal Transfer methods.
- Fast printing speed of up to 6 inches per second for efficient workflow.
- Durable metal chassis with a bi-fold cover and clear media window for industrial durability.
- 4.3-inch colour touch LCD with intuitive control and multi-language support.
- Comprehensive connectivity: USB, RS-232, Ethernet, USB Host ports (x2).
- Expandable memory with 512MB Flash, 256MB SDRAM, and microSD slot (up to 32GB).
- Supports multiple printer languages (TSPL-EZD, ZPL, EPL, DPL) for seamless integration.
- Advanced media sensors including ribbon end, media near end, and gap transmissive.
- Energy-efficient design compliant with ENERGY STAR® and RoHS standards.
Product Specifications
Specification | Details |
Print Resolution | 600 DPI (24 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max Print Speed | 152 mm/s (6”/sec) |
Max Print Width | 104 mm (4.09”) |
Max Print Length | 2540 mm (100”) |
Processor | 32-bit RISC CPU |
Memory | 256MB SDRAM / 512MB Flash / microSD (up to 32GB) |
Interface | USB 2.0, RS-232, Ethernet, 2x USB Host |
Optional Interfaces | GPIO + Parallel, Bluetooth 5.0 MFi, Wi-Fi with Bluetooth 4.2 combo |
Display | 4.3” Colour Touch LCD (480x272 px) |
Media Type | Continuous, Die-cut, Black Mark, Fan-fold, Tag |
Media Width | 20–114 mm (0.79–4.5”) |
Label Roll Capacity | 8” O.D. (Full Rewind) |
Ribbon Capacity | 600 m (1” core) |
Sensors | Gap, Black Mark, Ribbon End, Head Open, Media Near End |
Dimensions (W x H x D) | 276mm x 412mm x 502 mm |
Weight | 18.93 kg |
Operating Temperature | 0–40°C, 25–85% RH non-condensing |
Compliance | BIS, CE, FCC, UL, ENERGY STAR®, RoHS, WEEE |
Warranty | 2 Years (Printer), 12 Months (Print Head & Platen) |
