Description

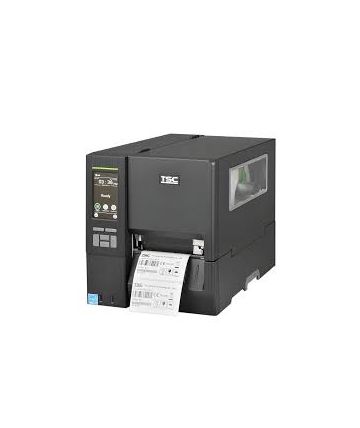

The MH641T 600DPI Industrial Label Printer sets the benchmark for precision labelling in high-demand industrial environments. Designed to deliver ultra-high print resolution (24 dots/mm), it produces exceptionally sharp barcodes, small fonts, and intricate graphics — ideal for electronics, pharmaceuticals, and manufacturing sectors. Equipped with a 4.3-inch full-colour touch LCD, the MH641T offers an intuitive user experience and effortless configuration. Built for performance and durability, it features a die-cast metal body, Thermal Transfer & Direct Thermal print methods, and robust connectivity options including USB, RS-232, Ethernet, and dual USB Host ports.With a print speed of up to 6 inches per second, versatile media compatibility, and expandable memory options, the MH641T ensures reliability, accuracy, and efficiency in continuous industrial printing operations.
Product Features
- Ultra-High 600DPI Print Resolution: Delivers precise text, 2D codes, and complex graphics.
- Dual Printing Modes: Supports both Thermal Transfer and Direct Thermal printing.
- High-Speed Output: Prints up to 152 mm (6") per second for faster job completion.
- Rugged Industrial Build: Die-cast mechanism with bi-fold metal cover for long-lasting durability.
- Smart 4.3” Touch LCD: Intuitive full-colour interface for easy printer management.
- Advanced Connectivity: RS-232, USB, Ethernet, and dual USB Host ports included.
- Expandable Memory: 512MB Flash, 256MB SDRAM, and microSD support up to 32GB.
- Comprehensive Media Compatibility: Handles labels up to 104 mm (4.09") wide.
- Multiple Barcode Formats: Prints 1D and 2D barcodes including QR, PDF417, and DataMatrix.
- Energy-Efficient & Certified: ENERGY STAR® compliant and BIS-approved for Indian market standards.
Product Specifications
Printing Method | Thermal Transfer & Direct Thermal |
Resolution | 24 dots/mm (600 DPI) |
Max. Print Speed | 152 mm (6”) per second |
Max. Print Width | 104 mm (4.09”) |
Max. Print Length | 2540 mm (100”) |
Processor | 32-bit RISC CPU |
Memory | 512MB Flash, 256MB SDRAM, microSD slot up to 32GB |
Interfaces | RS-232, USB 2.0, Ethernet (10/100 Mbps), Dual USB Host |
Optional Interfaces | GPIO + Parallel, Bluetooth 5.0, Wi-Fi 802.11 a/b/g/n/ac |
Display | 4.3” Full-Colour Touch LCD |
Media Width | 20–114 mm (0.79"–4.5") |
Media Thickness | 0.06–0.28 mm |
Ribbon Length | 600 m, 1” core |
Label Roll Capacity | 203.2 mm (8”) O.D. |
Dimensions (W x H x D) | 276 × 326 × 502 mm |
Weight | 15.6 kg |
Power Supply | AC 100–240V, 50–60Hz |
Environment | Operating: 0–40°C, 25–85% RH non-condensing |
Certifications | BIS, CE, FCC, UL, TÜV, ENERGY STAR , RoHS |
Warranty | Printer: 2 years; Printhead: 1 year or 25 km |
Features
Display Type:
- LCD
- Touch
Interface:
- Ethernet
- Serial
- USB
Max Print Width:
104mm
Print Method :
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
600
Print Speed :
- 152mm/sec
Print Type:
- Monochome
Printer Type :
- Industrial
Warranty :
2Years
