Description

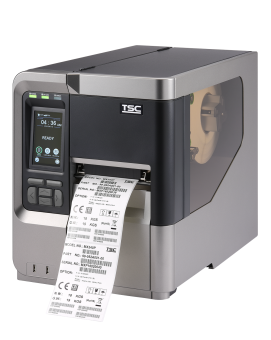

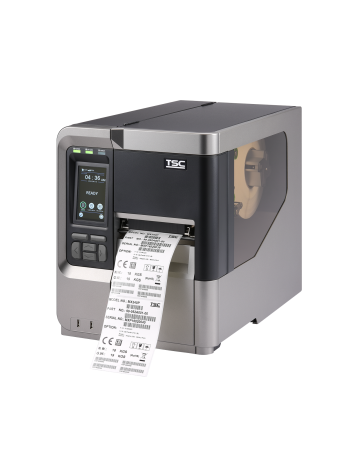

The TSC MX241P Industrial Label Printer is built to deliver lightning-fast, high-volume label printing for mission-critical industrial environments. Engineered with rugged durability and a powerful 32-bit RISC CPU, the MX241P prints at an impressive speed of 18 inches per second, making it one of the fastest barcode printers in its class. Equipped with 203 DPI resolution, it produces sharp and clear barcodes, text, and graphics suitable for manufacturing, logistics, and healthcare applications. The 4.3-inch colour touch LCD simplifies operation, while the advanced media sensors ensure high-precision label registration for even the smallest labels.
With multi-interface connectivity—including USB, RS-232, and Ethernet—and optional Wi-Fi and Bluetooth, the MX241P offers superior flexibility and remote printer management via SOTI Connect and TSC Console. Designed for around-the-clock industrial use, it combines power, reliability, and intelligent performance in one compact solution.
Product Features
- Ultra-fast printing up to 18 inches per second for maximum productivity.
- 203 DPI resolution ensures crisp, high-quality barcodes and labels.
- Thermal Transfer and Direct Thermal printing for versatile media support.
- Durable die-cast metal enclosure with large clear media view window.
- 4.3” full-colour touch LCD with easy navigation and multi-language interface.
- High-precision media sensors for micro-label applications (minimum 3mm label length).
- Supports advanced printer management tools including SOTI Connect and TSC Console.
- Multiple connectivity options: USB, RS-232, Ethernet, and dual USB Host ports.
- Expandable memory (512MB SDRAM, 512MB Flash, and up to 32GB microSD).
- Optional wireless connectivity – Wi-Fi (802.11 a/b/g/n/ac) with Bluetooth 4.2 combo module.
Product Specifications
Specification | Details |
Print Resolution | 203 DPI (8 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max Print Speed | 457 mm/s (18”/sec) |
Max Print Width | 104 mm (4.09”) |
Max Print Length | 25,400 mm (1000”) |
Processor | 32-bit RISC CPU |
Memory | 512MB SDRAM / 512MB Flash / microSD (up to 32GB) |
Interface | USB 2.0, RS-232, Ethernet, 2x USB Host |
Optional Interfaces | GPIO + Parallel, Bluetooth 5.0 MFi, Wi-Fi with Bluetooth 4.2 combo |
Display | 4.3” Colour Touch LCD (480x272 px) |
Media Type | Continuous, Die-cut, Black Mark, Fan-fold, Notch, Perforated, Tag |
Media Width | 20–114 mm (0.78–4.49”) |
Media Thickness | 0.076–0.305 mm |
Label Roll Capacity | 8” O.D. |
Ribbon Capacity | 600 m (1” core) |
Sensors | Gap, Black Mark, Ribbon End, Head Open, Media Capacity |
Dimensions (W x H x D) | 300mm x 393mm x 510mm |
Weight | 18 kg |
Operating Temperature | 0–40°C, 25–85% RH non-condensing |
Compliance | BIS, CE, FCC, UL, ENERGY STAR®, RoHS, WEEE |
Warranty | 2 Years (Printer), 12 Months (Print Head & Platen) |
