Description

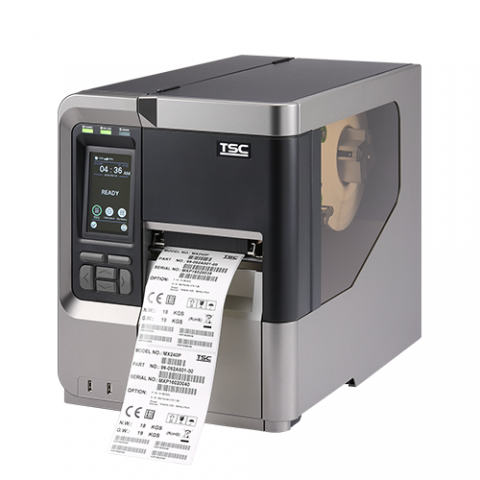

The TSC MX341P 300DPI Industrial Label Printer delivers exceptional speed, accuracy, and reliability for demanding industrial labelling applications. Engineered with a durable die-cast print mechanism, this printer supports both thermal transfer and direct thermal printing, offering long-term performance and precision. With a high-resolution 300dpi print head, the MX341P ensures crisp, clear text, barcodes, and graphics, even on micro labels as small as 3mm in length. The intuitive 4.3-inch colour touch LCD makes operation and setup effortless, while the TSC Sense Care feature automatically detects and compensates for bad printhead dots.
Ideal for manufacturing, logistics, healthcare, and warehousing, this powerhouse printer supports Ethernet, USB, RS-232, and optional Wi-Fi/Bluetooth connectivity, ensuring seamless integration into any workflow. Its high-speed performance (up to 14 inches per second) and advanced remote printer management via SOTI Connect make the MX341P a perfect choice for high-volume, high-accuracy label printing environments.
Product Features
- High-Resolution Printing: 300dpi output ensures detailed text, barcodes, and graphics.
- Dual Printing Modes: Supports both thermal transfer and direct thermal media.
- Exceptional Speed: Prints up to 356mm (14") per second for high productivity.
- Rugged Design: Die-cast print mechanism with a clear media window for durability and easy monitoring.
- Smart Label Detection: Dual black mark sensors (top/bottom) and media capacity sensors for accuracy.
- TSC Sense Care: Automatically scans and detects bad printhead dots for consistent quality.
- Multi-Connectivity: USB, RS-232, Ethernet, dual USB host ports, and optional Wi-Fi/Bluetooth.
- Dynamic Remote Management: Compatible with SOTI Connect and TSC Console.
- Versatile Media Support: Handles labels as small as 3mm and rolls up to 203.2mm (8") OD.
- Touch LCD Interface: 4.3-inch colour touch display with user-friendly navigation.
Product Specifications
Specification | Details |
Print Resolution | 300 DPI (12 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max. Print Speed | 356 mm/s (14 IPS) |
Max. Print Width | 104 mm (4.09 inches) |
Max. Print Length | 11,430 mm (450 inches) |
Processor | 32-bit RISC CPU |
Memory | 512 MB SDRAM, 512 MB Flash; microSD up to 32 GB |
Display | 4.3" Colour Touch LCD (480 × 272 pixels) |
Connectivity | USB 2.0, RS-232, Ethernet (10/100 Mbps), USB Host ×2 |
Optional Interfaces | Wi-Fi 802.11 a/b/g/n/ac & Bluetooth 4.2 combo module |
Media Type | Continuous, die-cut, black mark, fan-fold, tag, notch |
Max. Media Width | 114.3 mm (4.5 inches) |
Ribbon Capacity | 600 m length, 1" core (outside/inside ink coated) |
Roll Capacity | 203.2 mm (8" OD) |
Media Core Diameter | 76.2 mm (3 inches) |
Printer Language | TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL) |
Operating Temperature | 0 °C to 40 °C |
Dimensions (W × H × D) | 300mm× 393mm × 510mm |
Weight | 18 kg |
Warranty | 2 Years (Printer), 12 Months (Print Head/Platen Roller) |
