Description

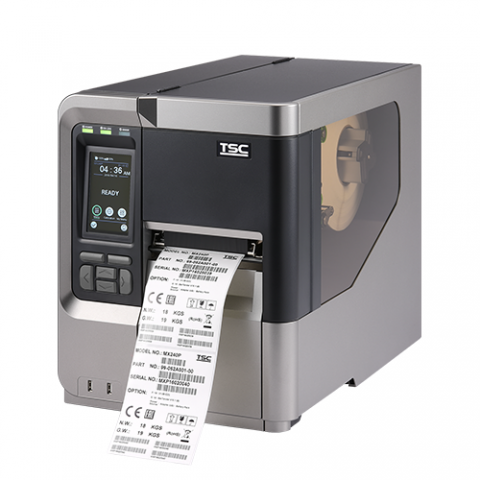

The TSC MX641P Industrial Barcode Label Printer delivers outstanding print precision and performance, ideal for high-volume manufacturing, logistics, and healthcare labelling. Featuring a 600 DPI print resolution, 18 ips print speed, and rugged all-metal construction, this printer ensures durable operation even in demanding environments. Its 4.3” colour touch LCD display provides intuitive control, while the TSC Sense Care technology automatically detects printhead issues to maintain superior print quality.
With multi-interface connectivity including USB, Ethernet, RS-232, and optional Wi-Fi with Bluetooth, the MX641P offers seamless integration into any industrial setup. Experience consistent, accurate, and efficient label printing—perfect for micro labels, packaging, and asset tracking.
Product Features
- High-resolution 600 DPI printing for crisp, detailed text and barcodes.
- Fast print speeds up to 18 ips for high productivity.
- TSC Sense Care auto-detects printhead defects and ensures reliable operation.
- Supports both top and bottom black mark sensors for versatile media handling.
- Durable metal frame ensures long-term reliability in industrial environments.
- 4.3-inch colour touch LCD with intuitive navigation and status monitoring.
- Advanced connectivity: USB, RS-232, Ethernet, USB Host, optional Wi-Fi & Bluetooth.
- Expandable memory with 512 MB Flash, 512 MB SDRAM, and up to 32 GB microSD.
- Wide media compatibility, supports label widths from 20mm to 114mm.
- Supports both Thermal Transfer and Direct Thermal printing for flexibility.
Product Specifications
Specification | Details |
Model | TSC MX641P |
Print Method | Thermal Transfer & Direct Thermal |
Print Resolution | 600 DPI (24 dots/mm) |
Max Print Speed | 152 mm/s (6 ips) |
Max Print Width | 104 mm (4.09”) |
Max Print Length | 2540 mm (100”) |
Processor | 32-bit RISC CPU |
Memory | 512 MB SDRAM, 512 MB Flash, expandable up to 32 GB via microSD |
Display | 4.3” Colour Touch LCD (480 x 272 pixels) |
Interfaces | USB 2.0, RS-232, Ethernet (10/100 Mbps), 2× USB Host, optional Wi-Fi & Bluetooth |
Media Type | Continuous, Die-cut, Black Mark, Fan-fold, Notch, Tag |
Media Width | 20 – 114 mm (0.78" – 4.49") |
Media Thickness | 0.076 – 0.305 mm |
Max Roll Diameter | 203.2 mm (8") O.D. |
Ribbon Capacity | 600 m length, 90 mm O.D., 1” core |
Enclosure | Die-cast metal with large media window |
Dimensions (W x H x D) | 300mm x 393mm x 510mm |
Weight | 18 kg |
Sensors | Gap, Black Mark, Ribbon End, Head Open, Media Capacity |
Operating Temperature | 0°C to 40°C |
Power Supply | 100–240V AC, 50–60Hz |
Certifications | BIS, CE, FCC, UL, Energy Star, RoHS |
Warranty | Printer: 2 Years; Print Head: 12 Months or 25 km; Platen: 12 Months or 50 km |
