Description

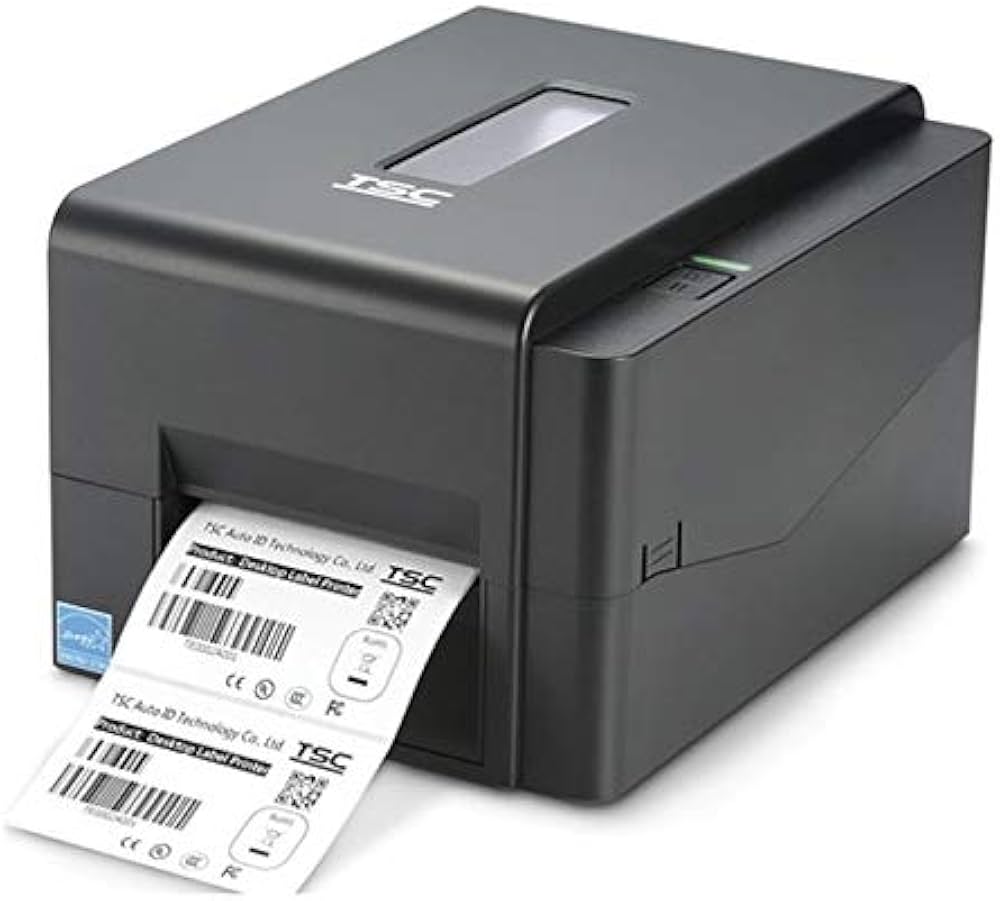

The TSC TE310 is a premium 300 DPI thermal transfer & direct thermal barcode printer designed for businesses that require sharp, detailed printing for labels, tags, and barcodes. Engineered with TSC’s trusted durability and performance, the TE310 combines high-resolution printing with advanced connectivity, making it ideal for manufacturing, warehousing, healthcare, retail, logistics, and office environments.Powered by a robust 400 MHz 32-bit RISC processor, the TE310 offers fast performance with 128 MB Flash and 64 MB SDRAM, giving it the ability to handle large, complex label formats effortlessly. Its compact ABS enclosure makes it durable yet space-efficient, while supporting both 300m ribbon rolls (1” core) and 110m ribbon rolls (0.5” core) for flexible operations.The TE310 includes USB 2.0, RS-232, Ethernet, and USB Host connectivity as standard, enabling use with scanners, keyboards, and various enterprise systems.
Product Features
- High-resolution 300 DPI output for crisp barcodes, text, and graphics
- Supports Thermal Transfer & Direct Thermal printing modes
- Fast print speed of 127 mm (5 inches/sec)
- Large 128 MB Flash & 64 MB SDRAM memory for heavy print jobs
- Flexible ribbon support: 300m (1" core) or 110m (0.5" core)
- Standard connectivity: USB 2.0, RS-232, Ethernet, USB Host
- Optional Bluetooth 4.0 connectivity
- Supports wide media range from 20–112 mm
- Adjustable sensors including black mark and gap detection
Product Specifications
Resolution | 300 DPI (12 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max Print Speed | 127 mm/s (5 IPS) |
Max Print Width | 105.7 mm (4.16”) |
Max Print Length | 11,430 mm (450”) |
Processor | 400 MHz 32-bit RISC |
Memory | 128 MB Flash, 64 MB SDRAM |
Ribbon Support | 300m (1" core) or 110m (0.5" core), coated outside |
Ribbon Width | 40–110 mm |
Interface | USB 2.0, RS-232, Ethernet 10/100, USB Host; Optional Bluetooth |
Dimensions | 204 mm (W) × 164 mm (H) × 280 mm (D) |
Weight | 2.5 kg |
Media Width | 20–112 mm (0.8–4.4”) |
Media Thickness | 0.06–0.19 mm |
Label Roll Capacity | 127 mm (5”) OD |
Sensors | Gap, Black Mark, Ribbon End, Head Open |
Printer Languages | TSPL-EZ (EPL, ZPL, ZPL II, DPL compatible) |
Environment | Operating: 5–40°C; Storage: -40–60°C |
Warranty | 2 Years Printer; 12 Months/25 km Printhead |
Features
Interface:
- Ethernet
- Serial
- USB
Max Print Width:
105.7mm
Print Method :
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
300
Print Speed :
- 127mm/sec
Print Type:
- Monochome
Warranty :
2Years
