Description

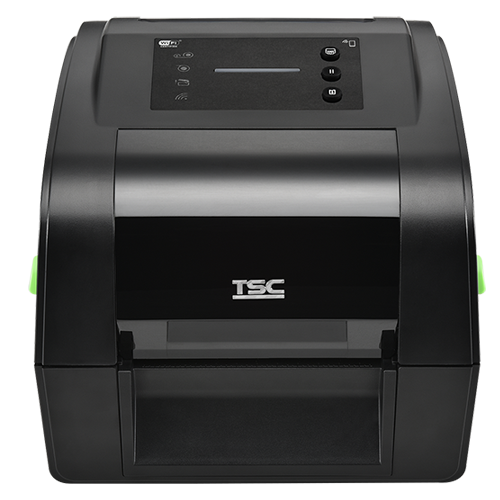

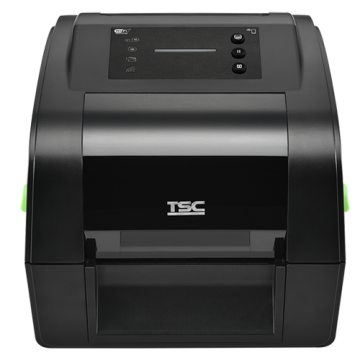

The TSC TH340 is a high-resolution 300 dpi desktop label printer built for demanding retail, logistics, warehousing, and light-industrial applications. With a powerful 32-bit CPU, fast print speeds, and a rugged double-walled clamshell design, it delivers exceptional print clarity and long-term reliability.Equipped with Ethernet, USB, RS-232, and optional Wi-Fi/Bluetooth, the TH340 fits seamlessly into modern work environments while supporting a wide range of media types. From barcode labels to compliance tags, the TH340 provides accurate, consistent printing that keeps your operations running smoothly.
Product Features
- 300 dpi high-resolution printing for crisp barcodes, text, and graphics
- Thermal Transfer & Direct Thermal dual-mode printing
- 152 mm/s (6 ips) print speed for fast, efficient label production
- 4.16" (105.7 mm) maximum print width
- Large 128 MB Flash & 128 MB SDRAM memory with microSD expansion up to 512 GB
- Durable clamshell double-walled construction for long working life
- Multiple connectivity options: USB 2.0, RS-232, Ethernet, USB Host, optional Wi-Fi/Bluetooth
- Adjustable gap & black mark sensors for precise media handling
- Supports EPL, ZPL, ZPL II & DPL compatible commands
Product Specifications
Print Resolution | 300 dpi (12 dots/mm) |
Printing Method | Thermal Transfer & Direct Thermal |
Max Print Speed | 152 mm/s (6 ips) |
Max Print Width | 105.7 mm (4.16") |
Max Print Length | 11,430 mm (450") |
Enclosure | Double-walled clamshell |
Dimensions | 223 W × 186 H × 286 D mm |
Weight | 2.8 kg |
Label Roll Capacity | 127 mm (5") OD |
Ribbon | 300 m (1" core) or 110 m (0.5" core), ink-outside |
Ribbon Width | 40–110 mm |
Processor | 32-bit RISC CPU |
Interfaces | USB 2.0, RS-232, USB Host, Ethernet |
Sensors | Gap, black mark, ribbon end, head open |
Internal Fonts | Bitmap & scalable TrueType |
Barcode Support | 1D, 2D, rMQR, GS1 |
Printer Language | TSPL-EZ (EPL/ZPL/DPL compatible) |
Media Type | Continuous, die-cut, black mark, fan-fold, notch |
Media Width | 15–120 mm |
Media Thickness | 0.06–0.19 mm |
Core Diameter | 1"–1.5" |
Operating Conditions | 0°C to 40°C, 25%–85% RH |
Warranty | 3-year printer, 12-month printhead/platen |
Features
Interface:
- Ethernet
- Serial
- USB
Max Print Width:
105.7mm
Print Method :
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
300
Print Speed :
- 152mm/sec
Print Type:
- Monochome
Warranty :
3Years
