Description

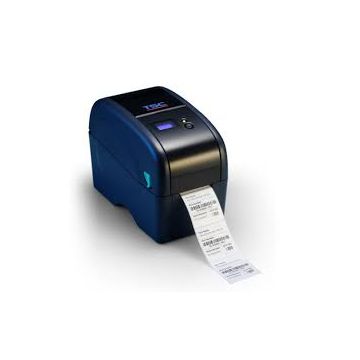

The TSC TTP-225 is a compact 2-inch desktop thermal transfer barcode printer designed for businesses that need high performance in limited spaces. With its durable double-walled clamshell design, fast printing speeds, and support for industry-standard media, it delivers exceptional reliability across retail, healthcare, logistics, and office environments.The TTP-225 makes day-to-day printing effortless with easy media loading, multiple connectivity options, and strong memory capacity for smooth, continuous operations. Ideal for labels, wristbands, shelf tags, file labels and product marking, this printer offers long-term durability and low running cost—perfect for Indian businesses looking for dependable, space-saving printing.
Product Features
- Compact design ideal for crowded counters and small workspaces
- Supports both thermal transfer & direct thermal printing
- Durable double-walled clamshell with easy top-open media loading
- High-speed printing up to 5 inches per second
- Industry-standard ribbon compatibility ensures cost savings
- Built-in 8MB SDRAM + 4MB Flash memory with microSD expansion
- USB 2.0 and Serial connectivity (Ethernet optional)
- Adjustable gap & black mark sensors for versatile media use
Product Specifications
| Resolution | 203 DPI (8 dots/mm) |
| Printing Method | Thermal Transfer & Direct Thermal |
| Max Print Speed | 127 mm/sec (5 ips) |
| Max Print Width | 54 mm (2.13”) |
| Max Print Length | 2,286 mm (90”) |
| Enclosure | Double-walled clamshell design |
| Dimensions | 140 mm (W) × 177 mm (H) × 241 mm (D) |
| Weight | 2.45 kg |
| Label Roll Capacity | 127 mm (5”) OD |
| Ribbon Length | 90 m, 37 mm max OD, 0.5” core |
| Memory | 8 MB SDRAM, 4 MB Flash, microSD up to 4 GB |
| Processor | 32-bit RISC CPU |
| Interfaces | USB 2.0, RS-232 (Ethernet/Bluetooth optional) |
| Sensors | Gap, black mark, ribbon end, head open |
| Media Width | 15–60 mm |
| Media Type | Continuous, die-cut, black mark, fan-fold, wristband |
| Environment | 5–40°C operating, 25–85% RH |
| Certifications | FCC, CE, UL, C-Tick, CCC, ENERGY STAR, RoHS |
| Warranty | 2 years printer, 12 months/25 km printhead |
Features
Interface:
- Ethernet
- Serial
- USB
Max Print Width:
54mm
Print Method :
- Direct Thermal
Print Resolution-DPI:
203
Print Speed :
- 127mm/sec
Print Type:
- Monochome
Warranty :
2Years
