Description

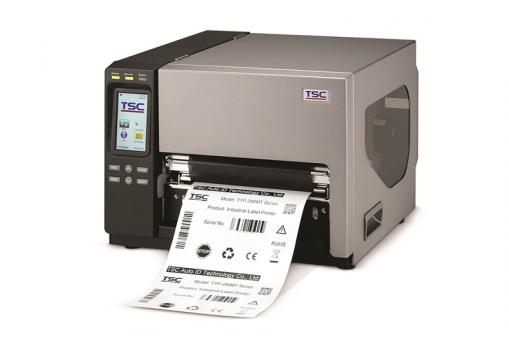

The TSC TTP-286MT 203 DPI Industrial Label Printer is engineered for demanding applications that require extra-wide labels and high-volume printing. With a maximum print width of 216 mm (8.5”), it’s ideal for printing large compliance labels, pallet labels, chemical drum labels, and more. Equipped with a 4.3-inch colour touch LCD and a robust metal chassis, the TTP-286MT delivers exceptional performance, durability, and ease of operation. Supporting both Thermal Transfer and Direct Thermal printing, this model ensures precise, long-lasting output across diverse media types.
With multiple connectivity options — including USB, RS-232, Ethernet, Parallel, and USB Host — it easily integrates into existing workflows. Advanced features such as real-time clock, auto-sensing media detection, and expandable memory up to 32 GB make it a powerhouse for industrial environments like manufacturing, logistics, and warehousing.
Product Features
- Extra-wide 8.5-inch printing for large-format industrial labels.
- High-speed 6 ips (152 mm/s) printing for efficient label throughput.
- 203 DPI resolution ensures clear text, barcodes, and graphics.
- Durable metal construction built for industrial reliability.
- 4.3-inch colour touch LCD provides easy operation and menu navigation.
- Versatile connectivity: USB, RS-232, Ethernet, Parallel, USB Host.
- Expandable storage with 512 MB Flash, 256 MB SDRAM, and SD card up to 32 GB.
- Supports multiple barcode symbologies (1D & 2D including QR, DataMatrix, PDF-417).
- Compatible with TSPL-EZ, ZPL, ZPL II, EPL printer languages.
- Optional heavy-duty cutter and smart keyboard for enhanced workflow automation.
Product Specifications
Specification | Details |
Model | TSC TTP-286MT |
Print Method | Thermal Transfer & Direct Thermal |
Print Resolution | 203 DPI (8 dots/mm) |
Max Print Speed | 152 mm/s (6 IPS) |
Max Print Width | 216 mm (8.5”) |
Max Print Length | 11,430 mm (450”) |
Processor | 32-bit RISC CPU |
Memory | 256 MB SDRAM, 512 MB Flash, SD expansion up to 32 GB |
Display | 4.3” Colour Touch LCD (480 x 272 pixels) |
Interfaces | USB 2.0, RS-232, Ethernet, Parallel, USB Host, optional GPIO |
Media Type | Continuous, Die-cut, Fan-fold, Tag, Notched, Black Mark |
Media Width | 101.6 – 241.3 mm (4” – 9.5”) |
Media Thickness | 0.06 – 0.254 mm (2.36 – 10 mil) |
Max Roll Capacity | 208.3 mm (8.2”) O.D. |
Ribbon Capacity | 600 m length, 90 mm O.D., 1” core |
Enclosure | Die-cast metal frame with clear view window |
Dimensions (W x H x D) | 440 x 336 x 514 mm |
Weight | 23.7 kg |
Sensors | Gap, Black Mark, Ribbon End, Ribbon Encoder, Head Open |
Operating Temperature | 5°C – 40°C |
Power Supply | 100–240V AC, 50–60Hz, 200W |
Certifications | FCC, CE, UL, TÜV, BIS, RoHS, WEEE |
Warranty | Printer: 2 Years; Print Head: 12 Months or 25 km; Platen: 12 Months or 50 km |
